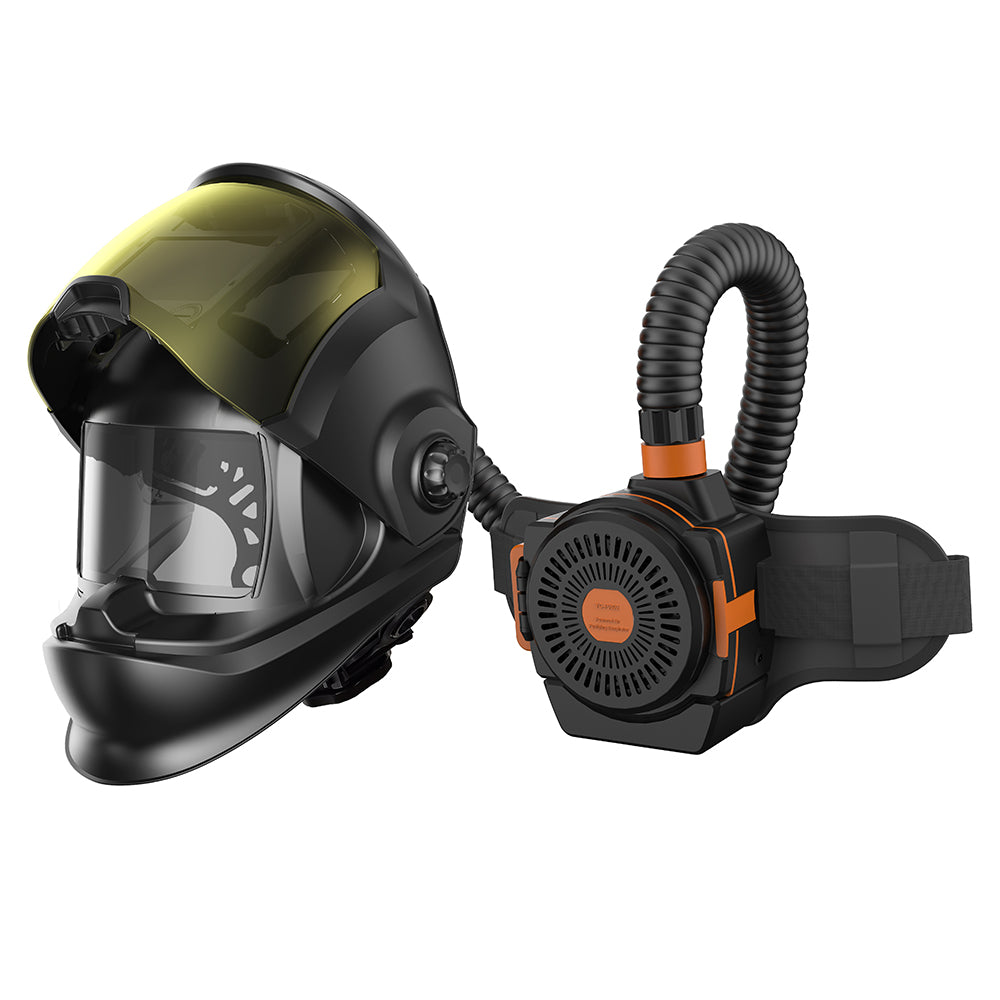

Weldingshop fresh air hood UN9100C

Weldingshop fresh air hood UN9100C

The motor-driven fresh air hood is used for dust removal and partial odor removal, and is used to reduce or eliminate inhalation resistance during breathing by producing a constant air flow.

The unit is designed with the minimum flow rate of 170 liters, 210 liters or 250 liters per minute (the flow rate at which the equipment still meets the requirements of the class in EN12941).

The actual working time will be approximately 8 hours.

• Optical class: 1/1/1/1
• LCD display area: 75 x 112 mm (2.95 x 4.41 in)
• Arc sensors: 4
• Light State shade: DIN 3
• Variable welding colors: 9 to 12 / 13 to 15

• Shade control: variable shade, digital display control
• Power on/off: auto ON, auto OFF
• Sensitivity control Variable 1 to 10, Digital display control
• UV/IR protection at all times up to DIN16
• Power supply Solar cell with battery support Battery 2 x CR2450 lithium batteries
• Switching time light to dark 0.00004 sec. (1/25,000 sec.)
• From dark to light Switching time variable 0 to 10, digital display control (0.1 sec. to 1.0 sec.)
• Sharpening mode - Yes
• Operating temperature 14°F~ 131°F (-10℃~55℃)
• Storage temperature -4°F~158°F (-20℃~70°℃)
