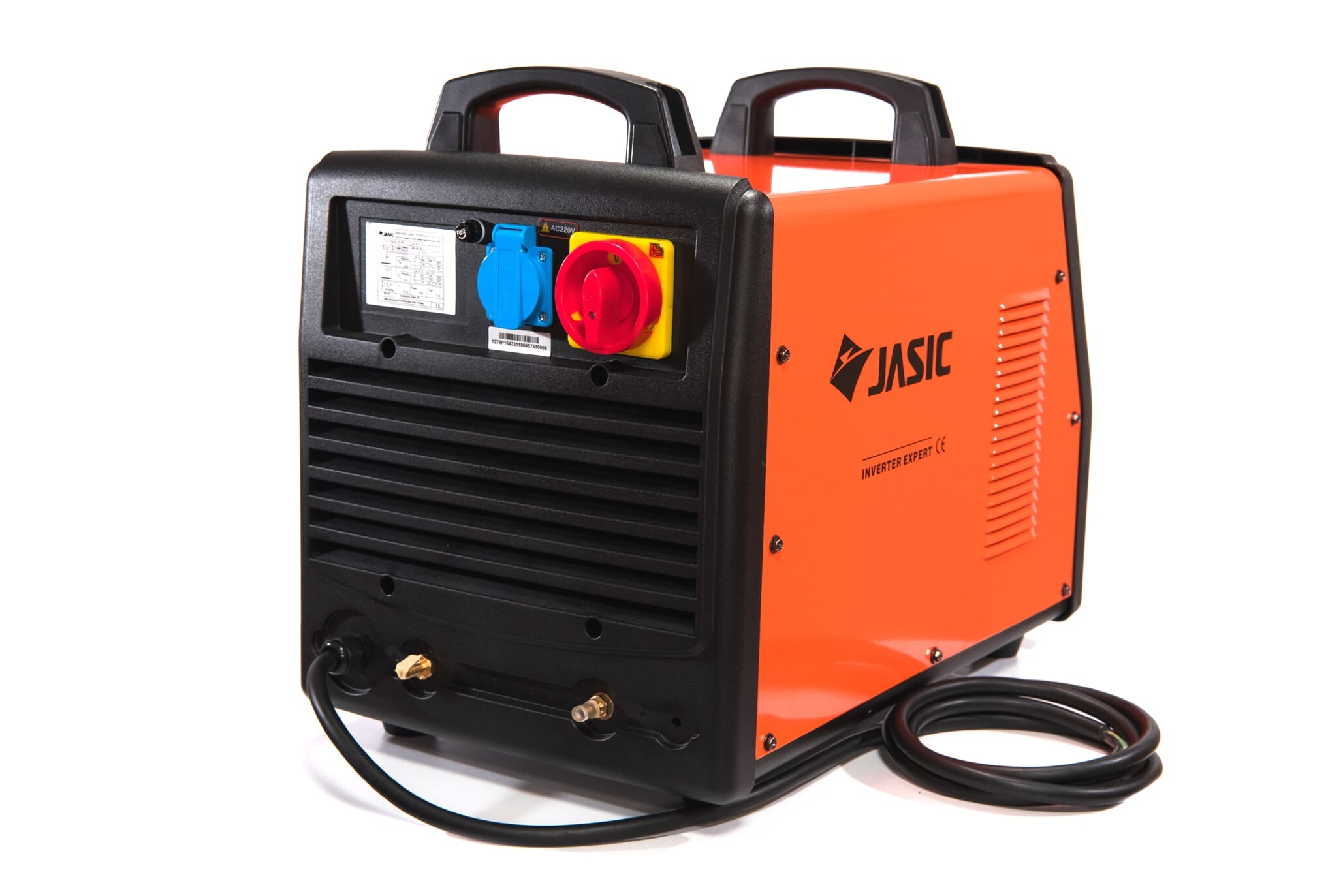

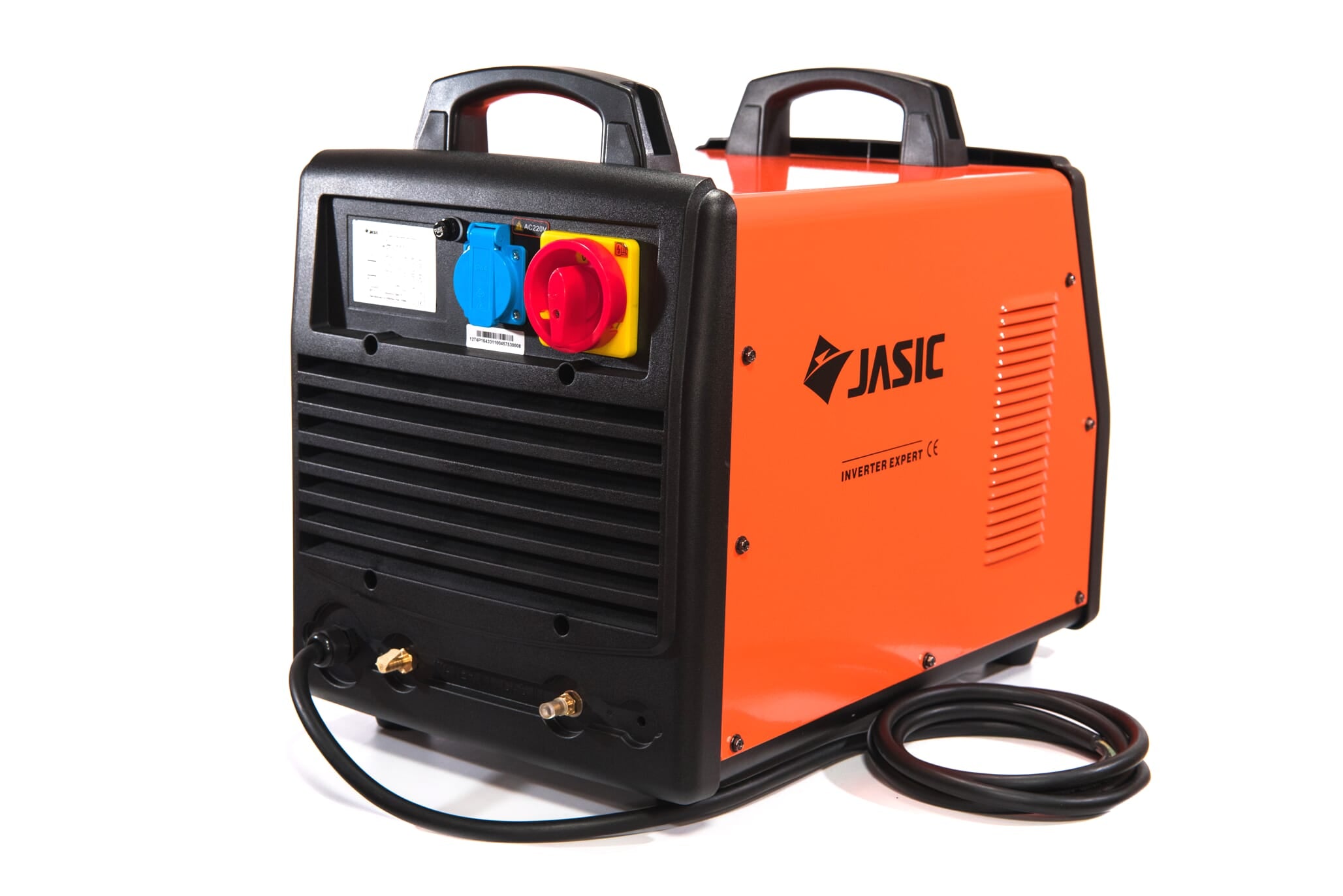

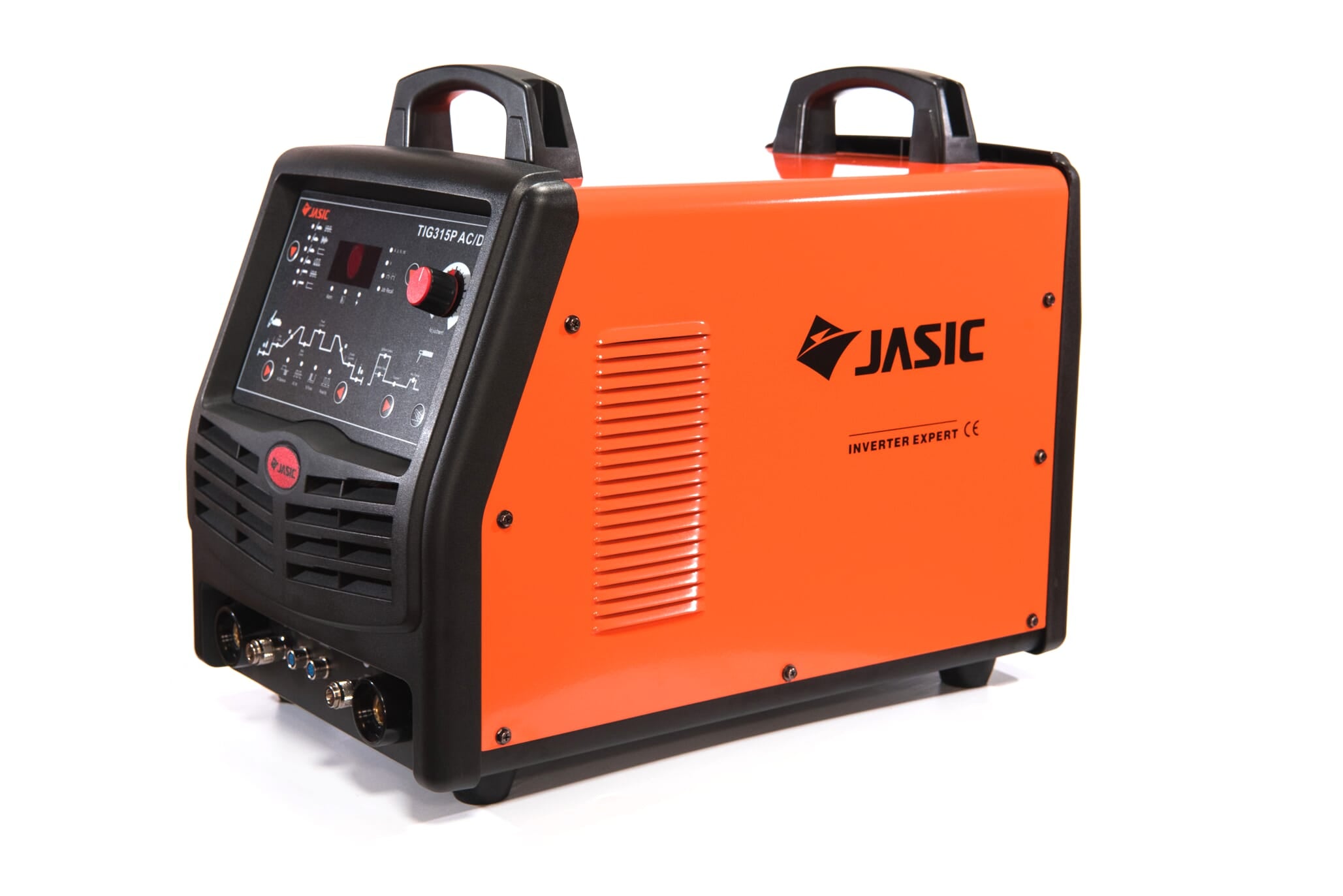

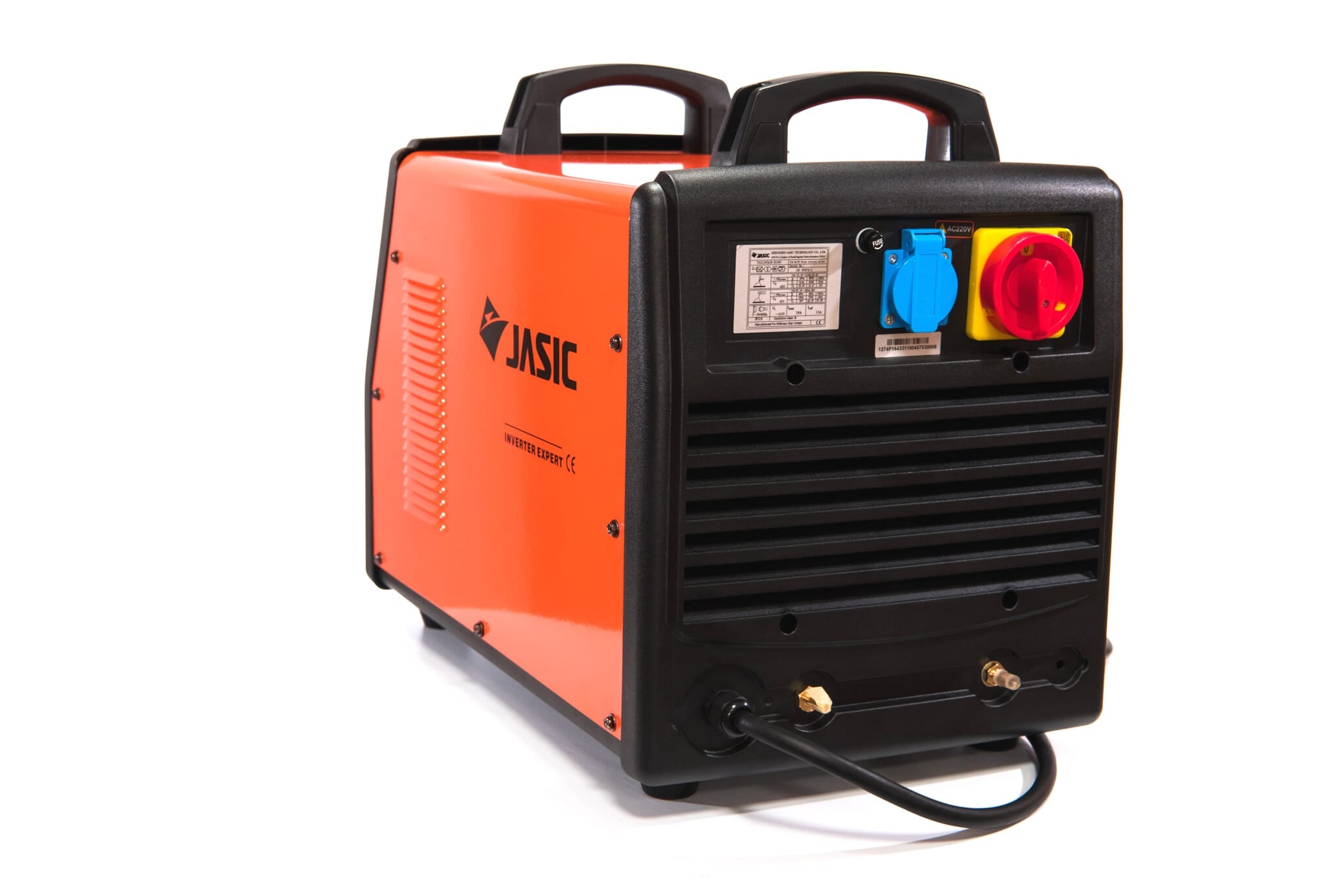

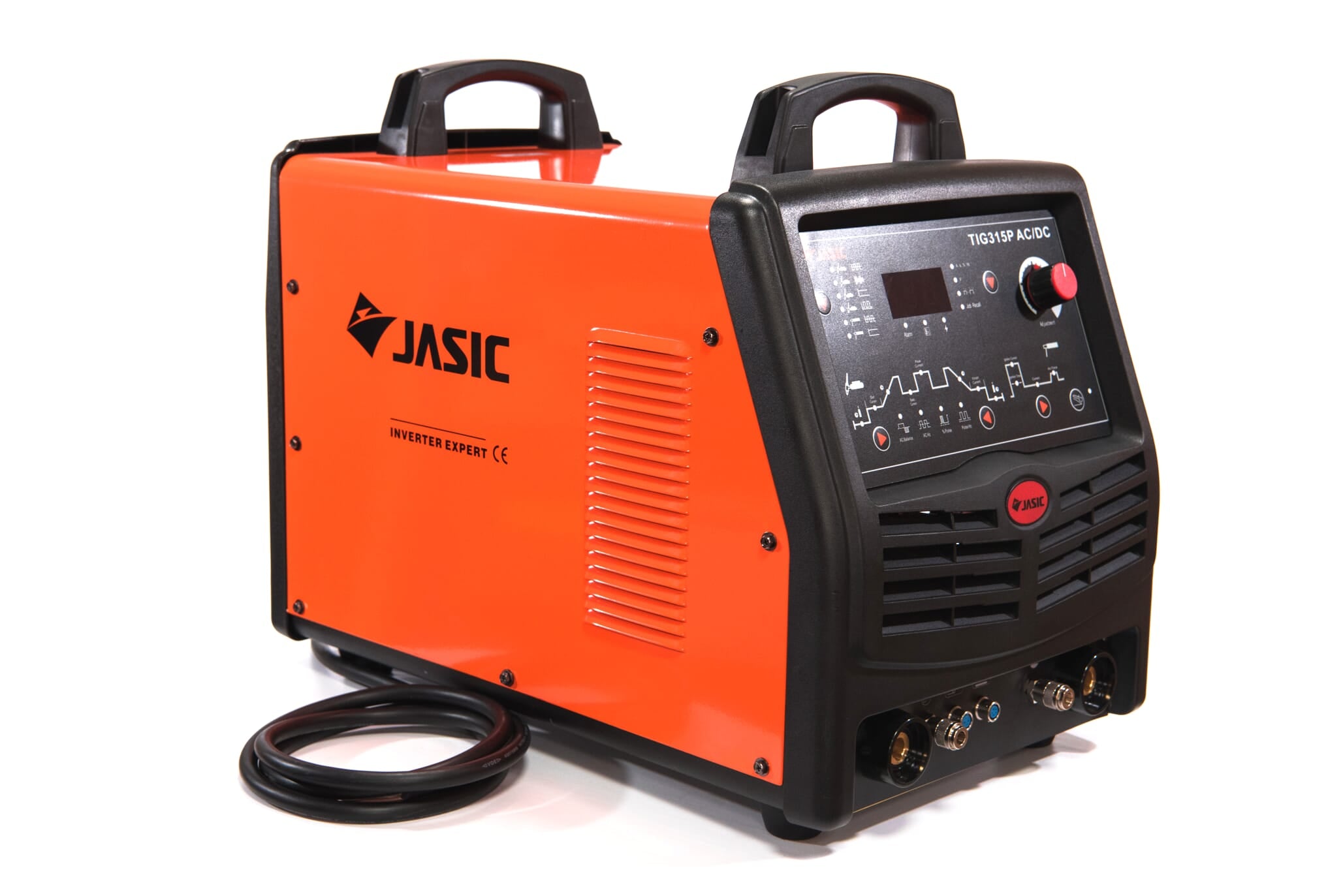

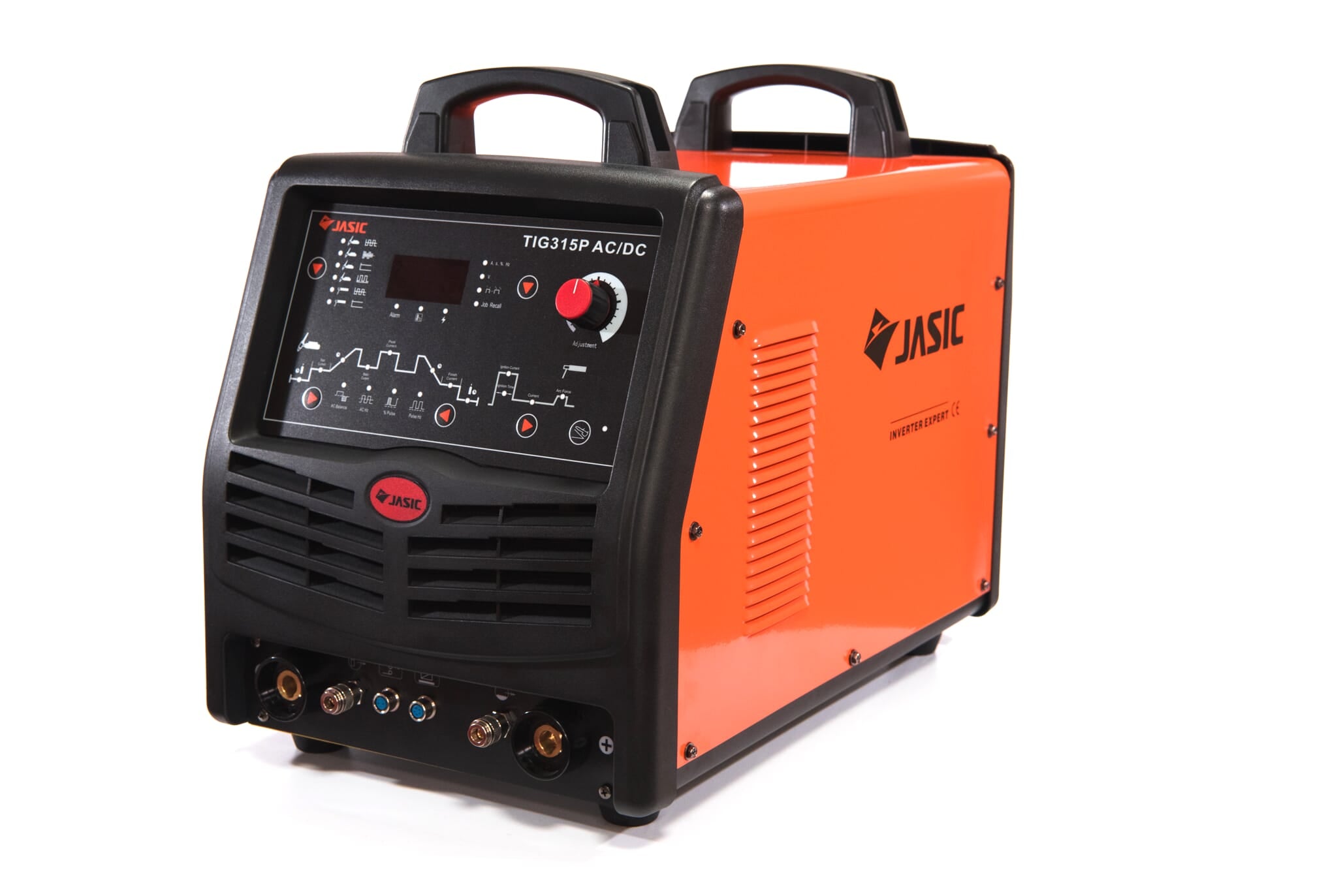

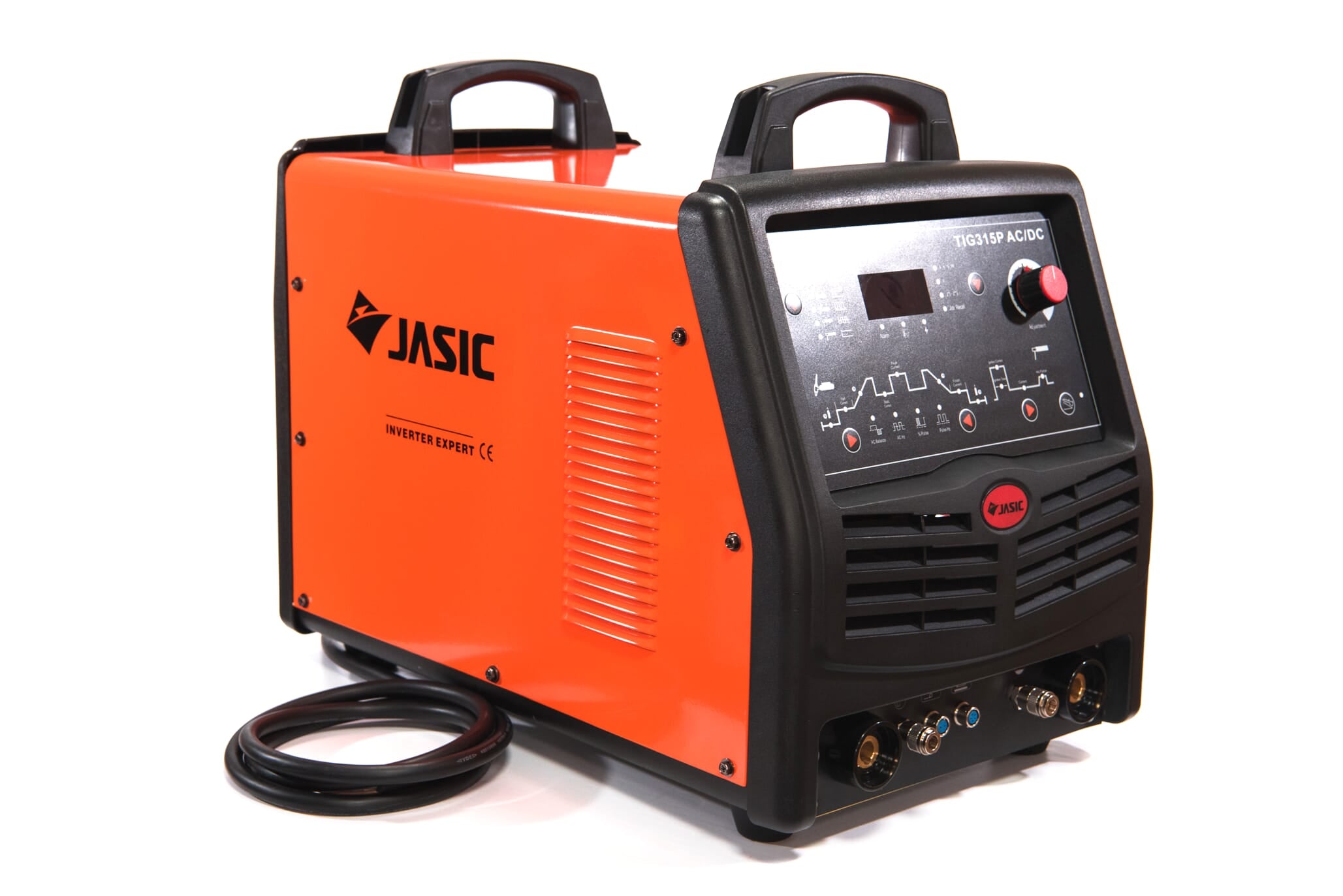

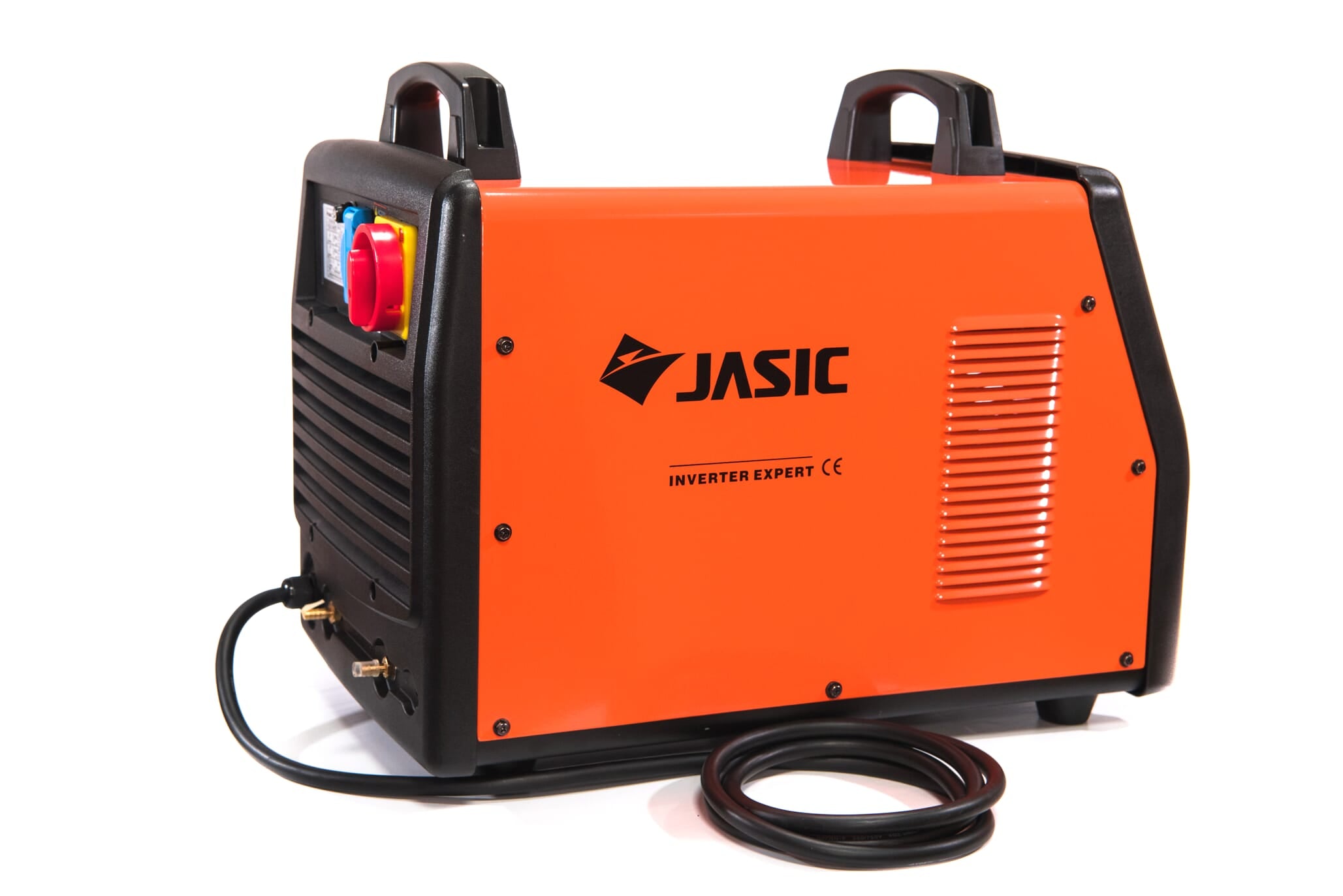

Jasic TIG315P AC/DC Digital (E106)
Regular price
€1.179,00

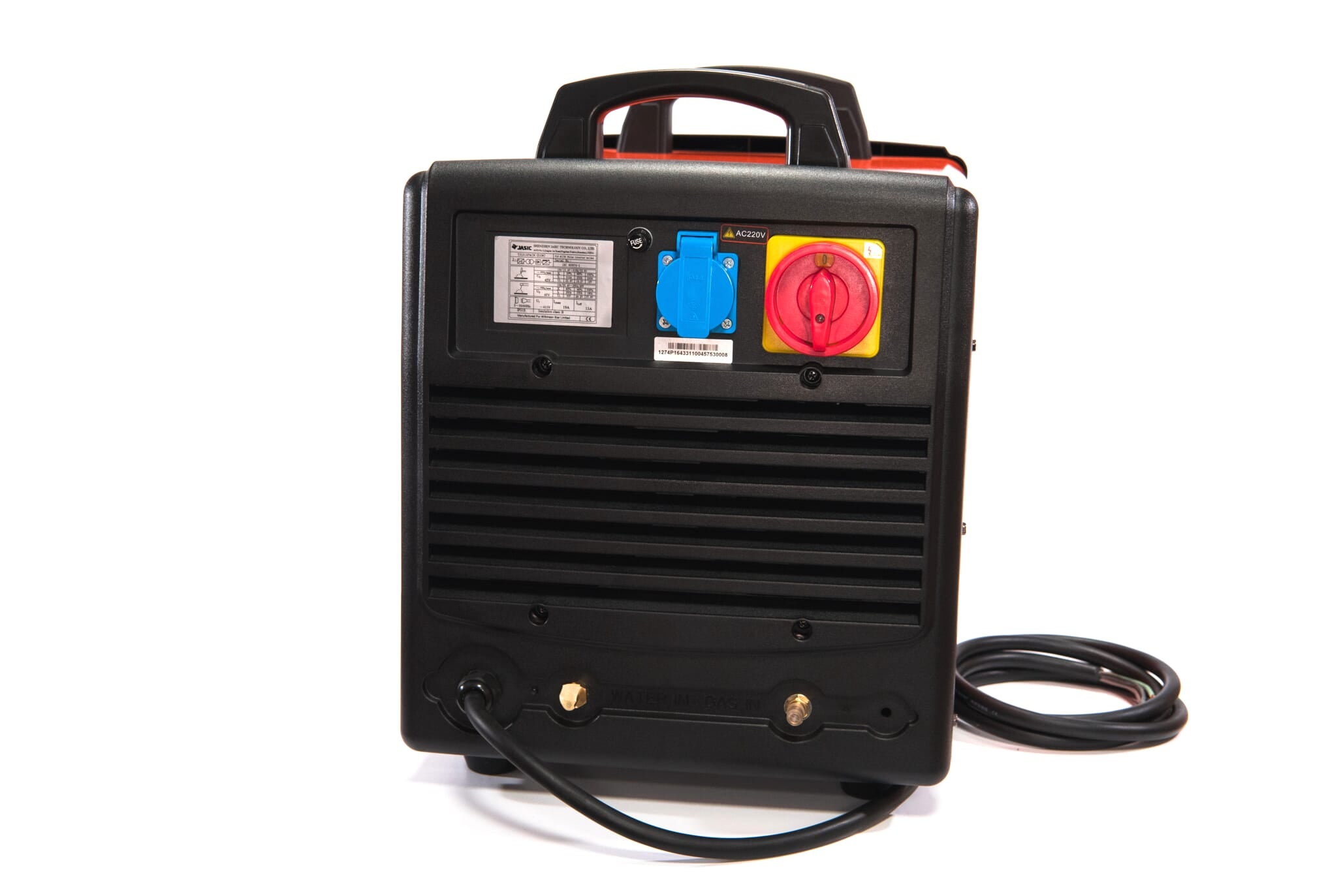

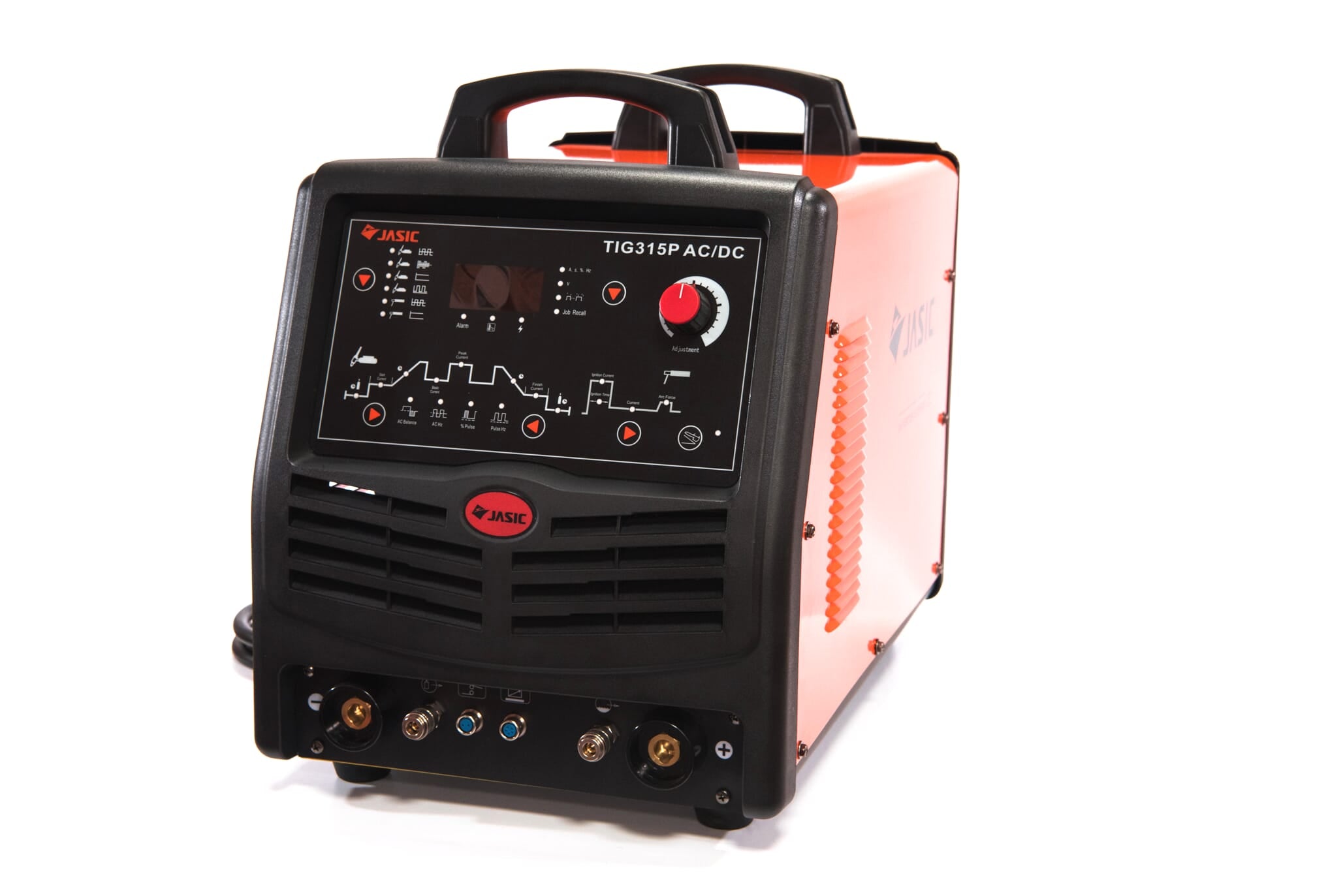

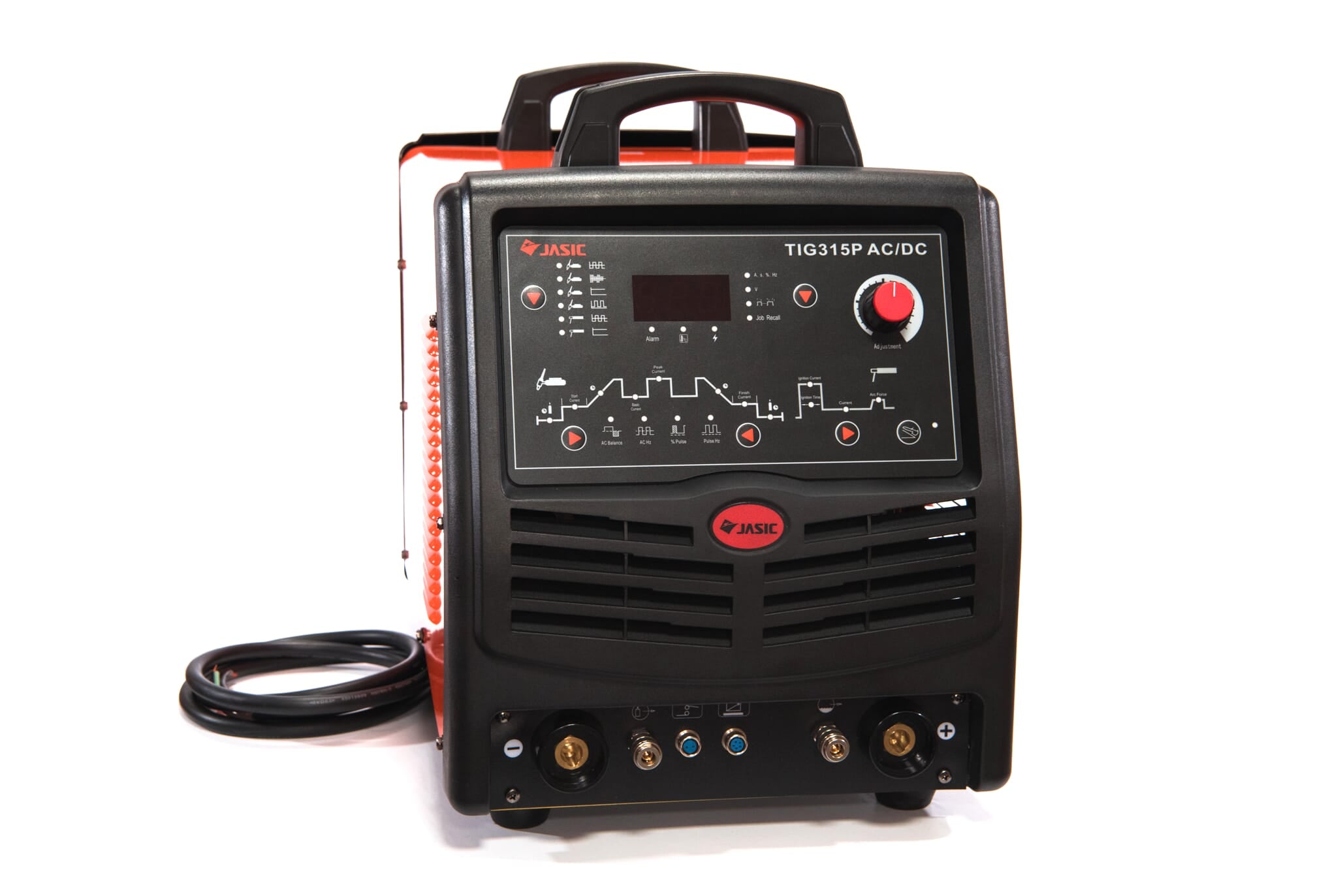

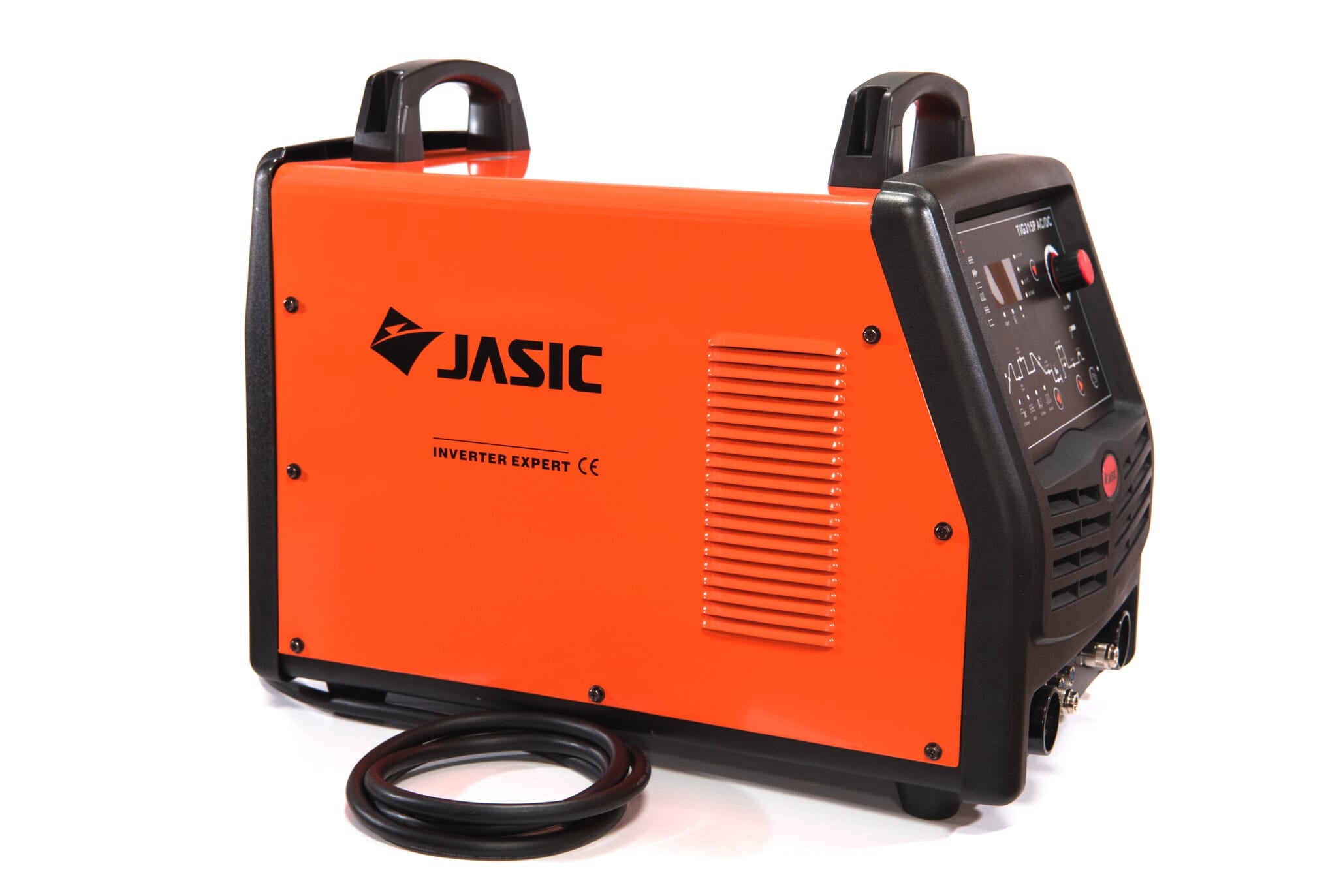

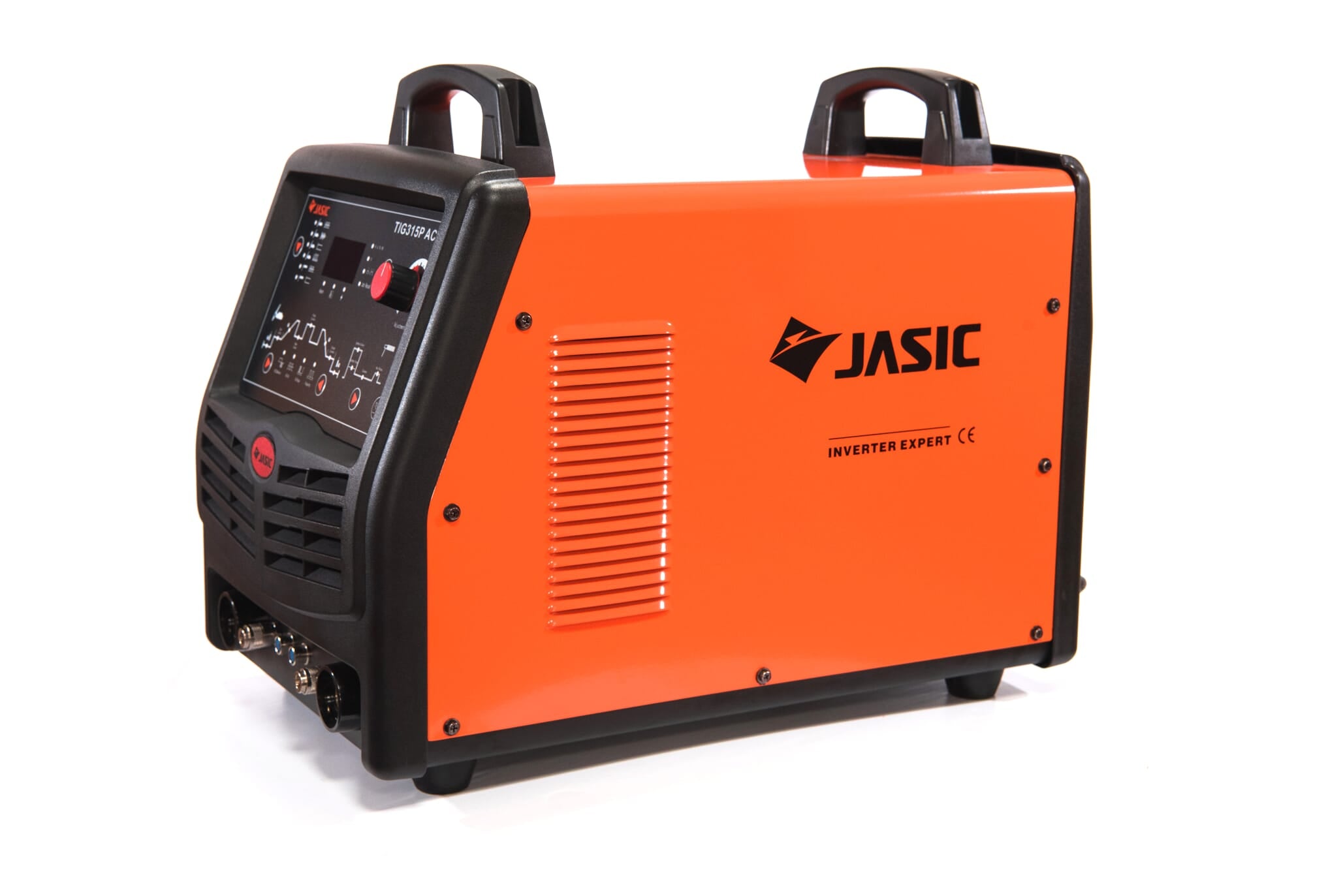

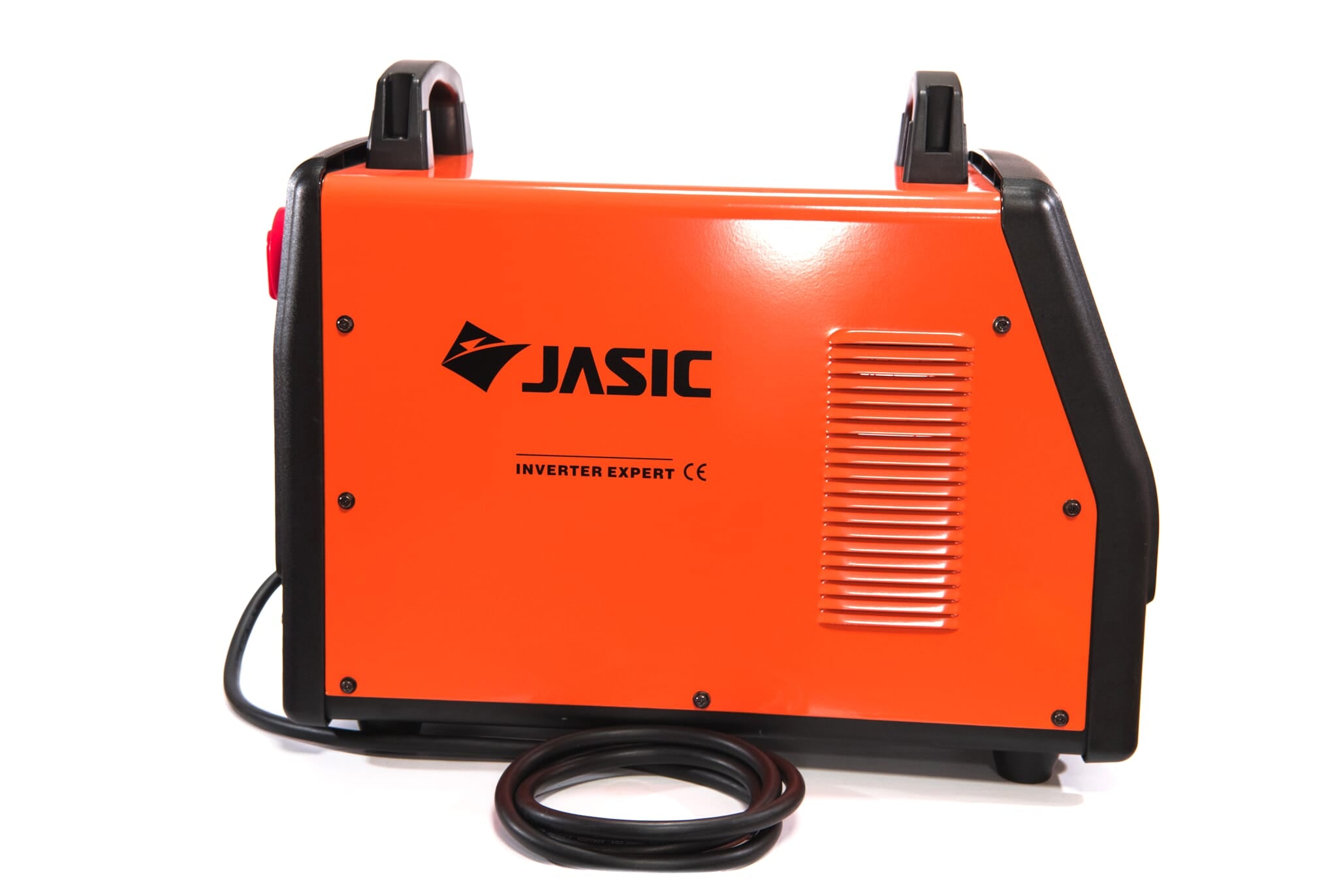

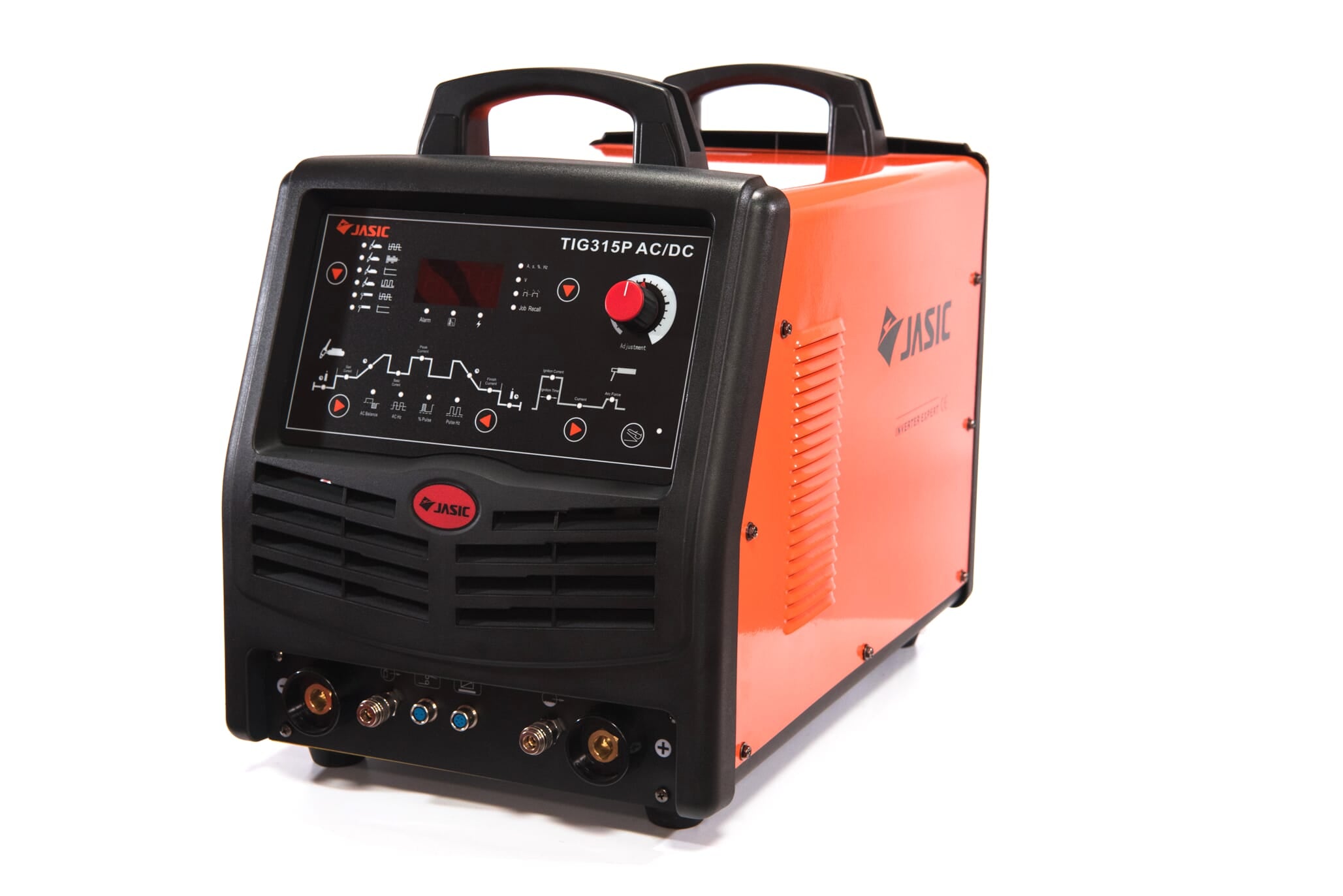

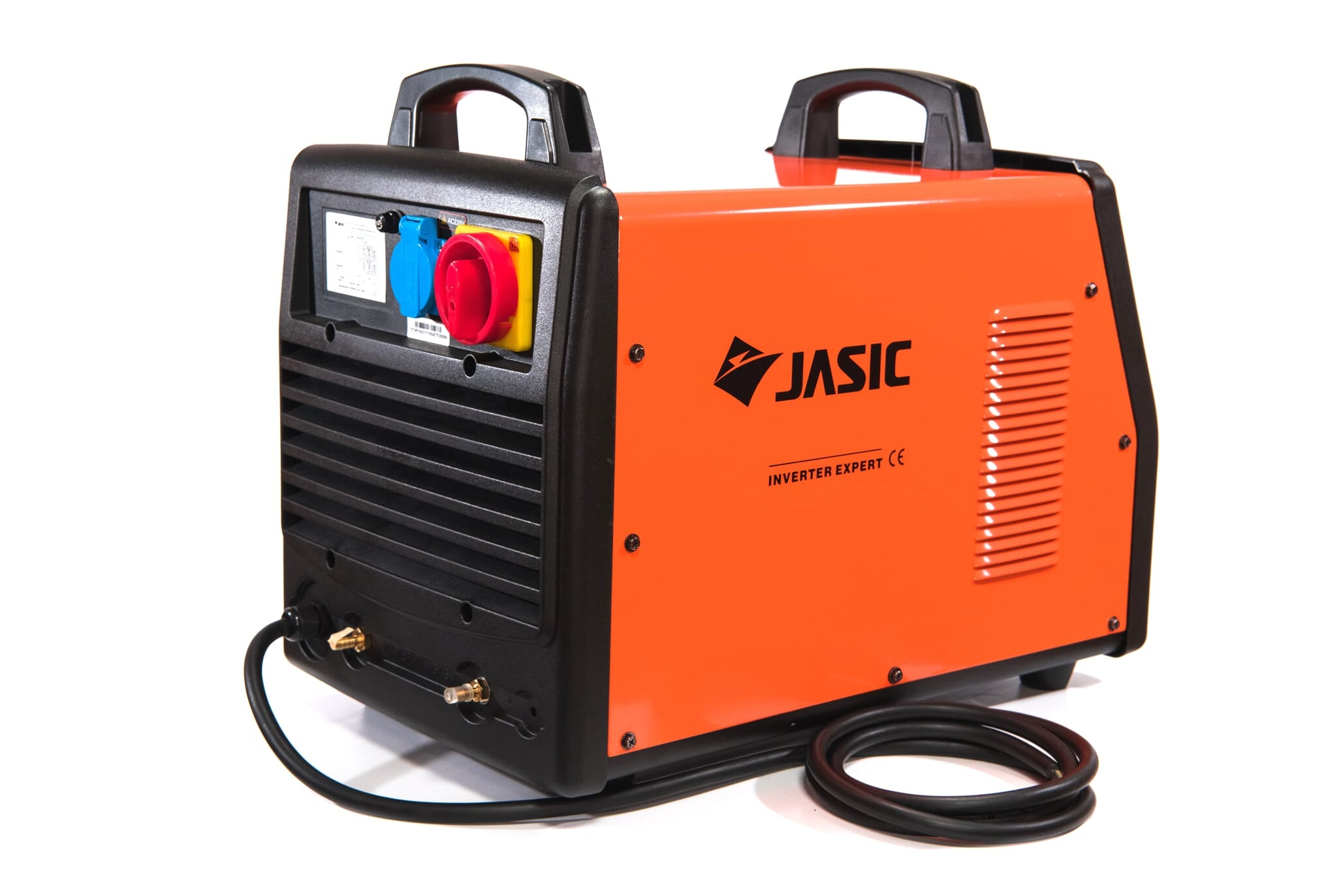

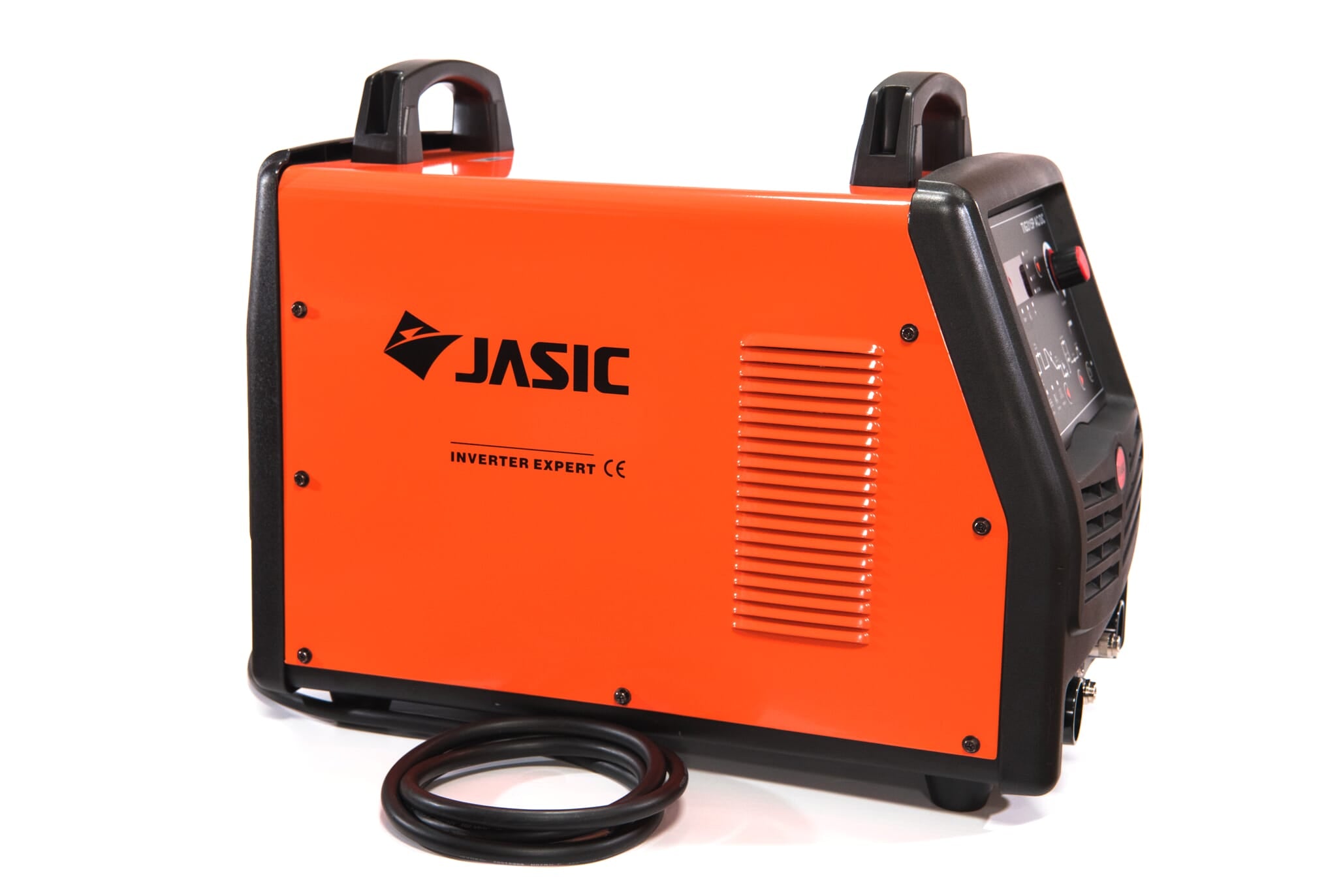

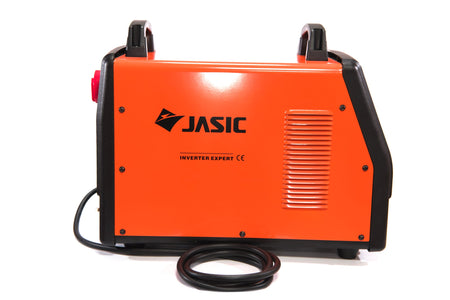

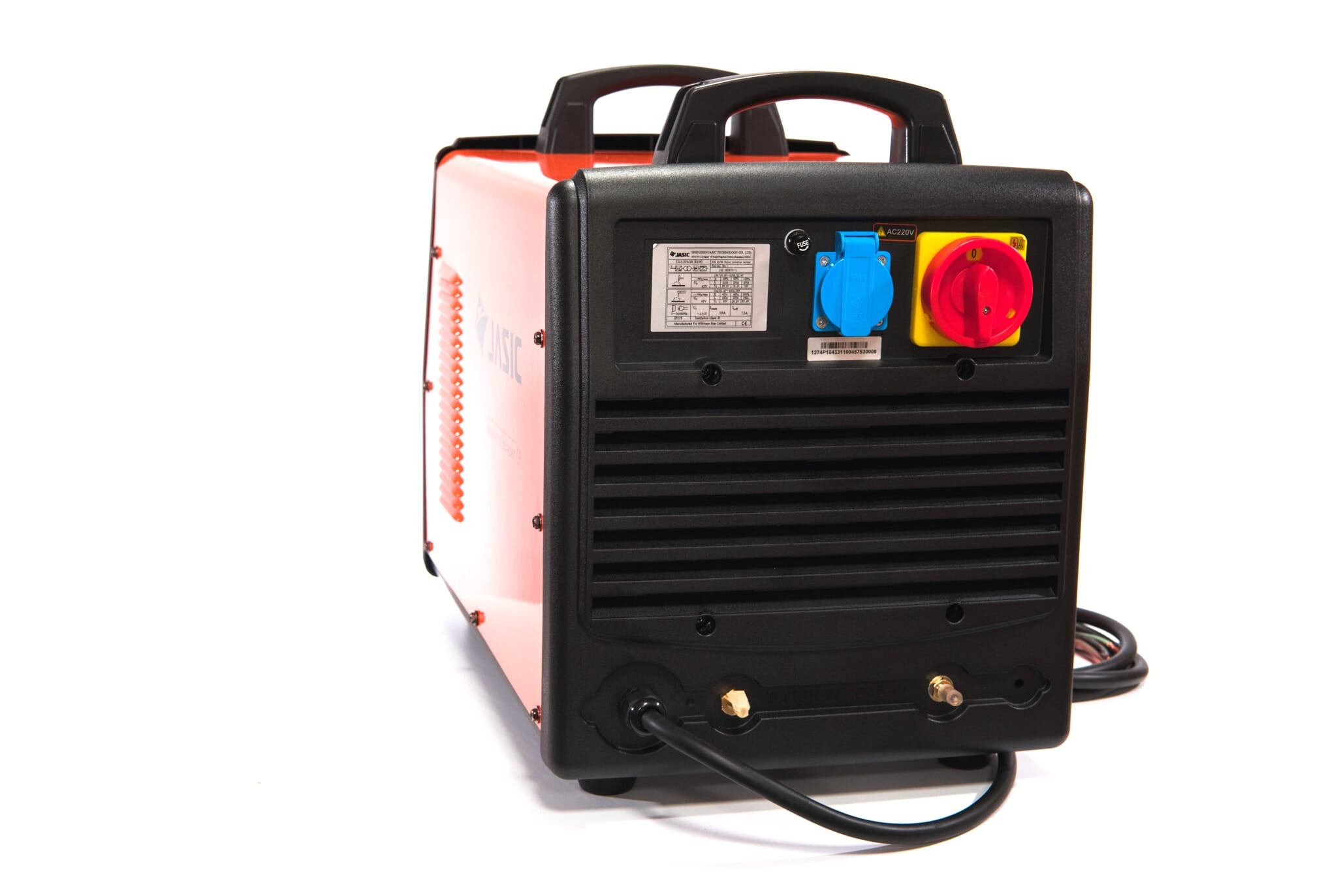

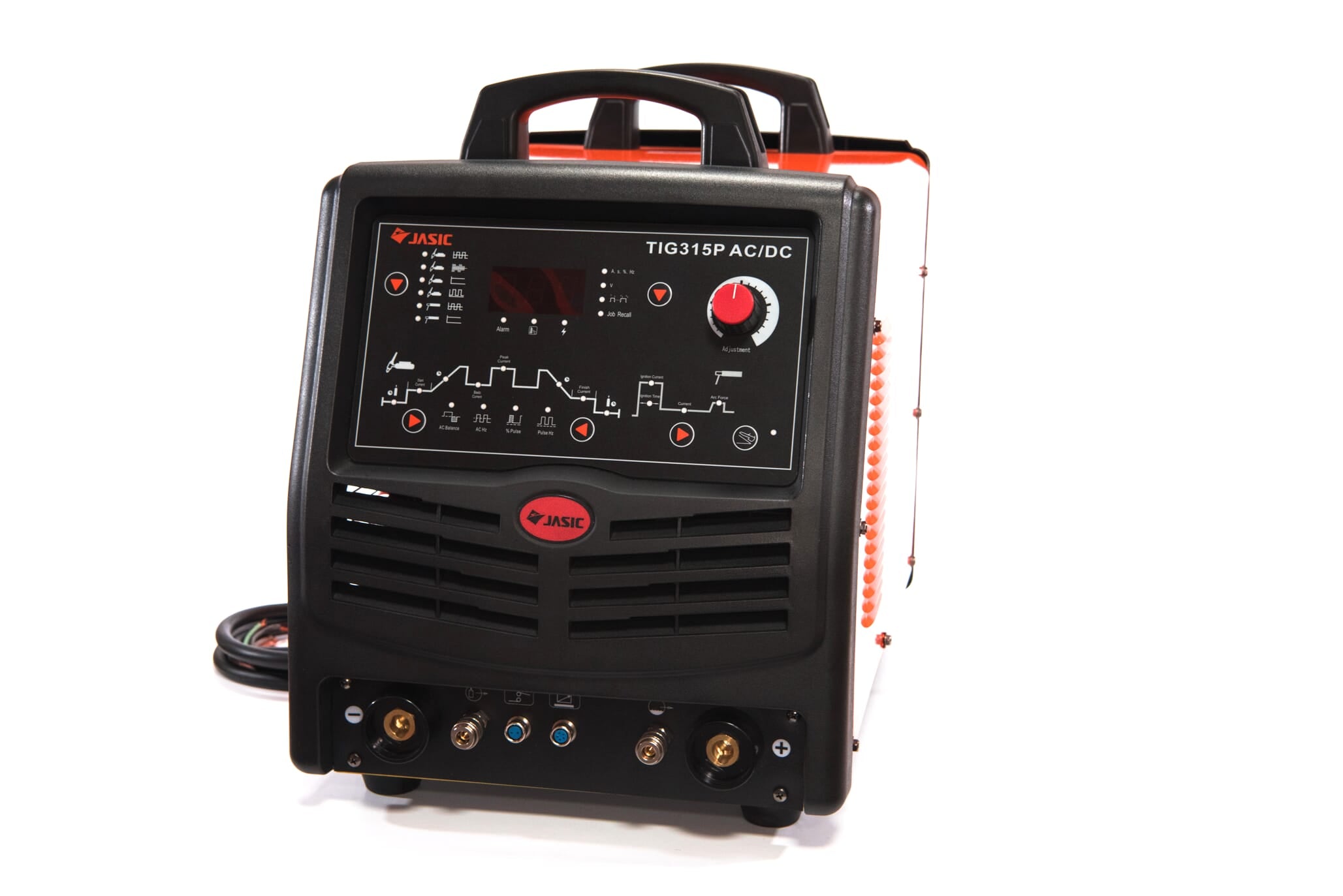

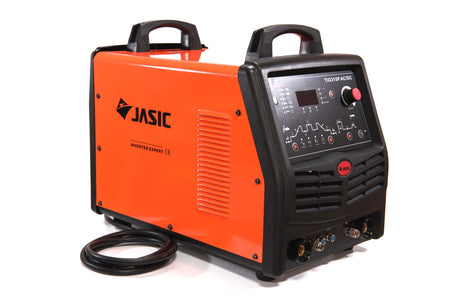

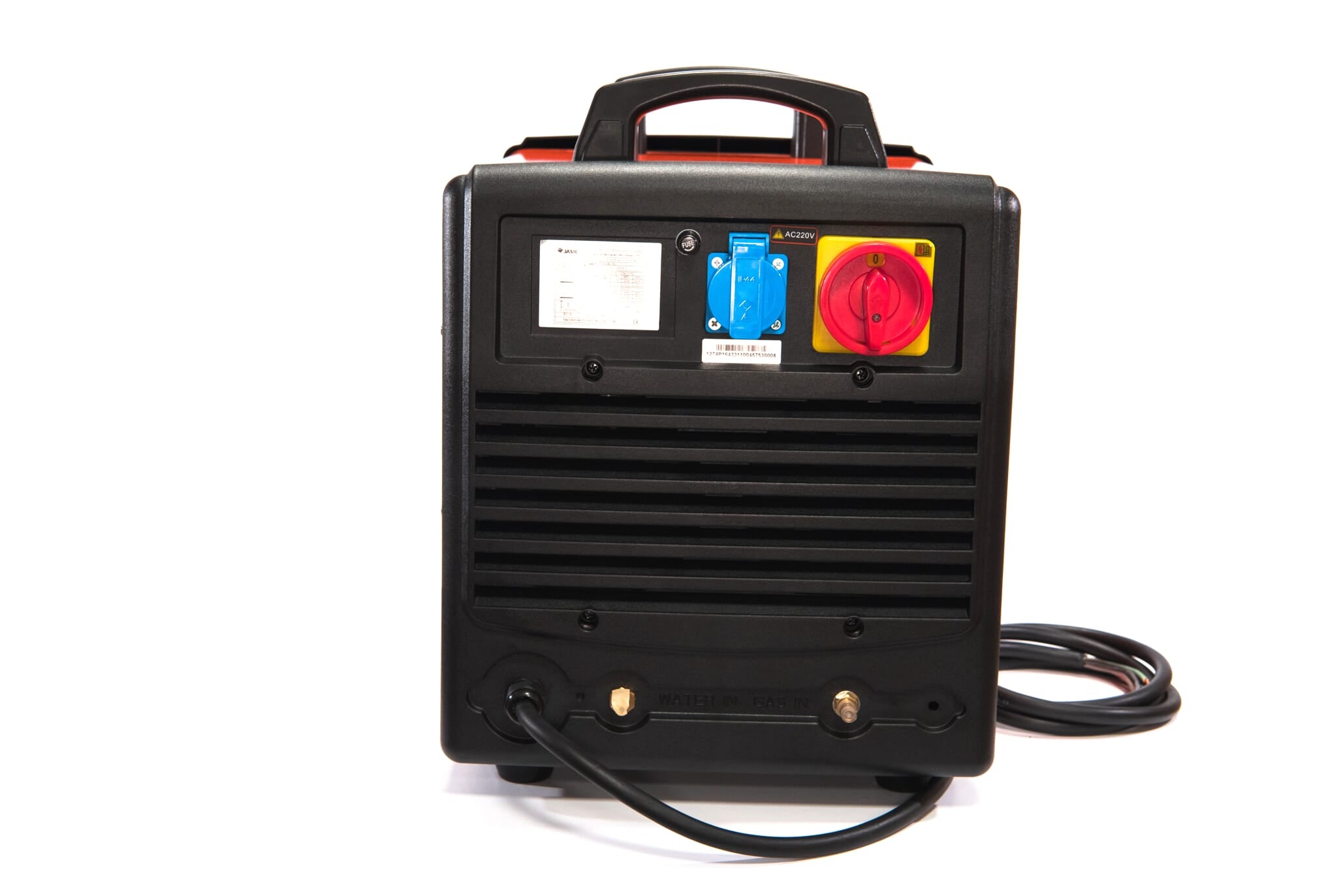

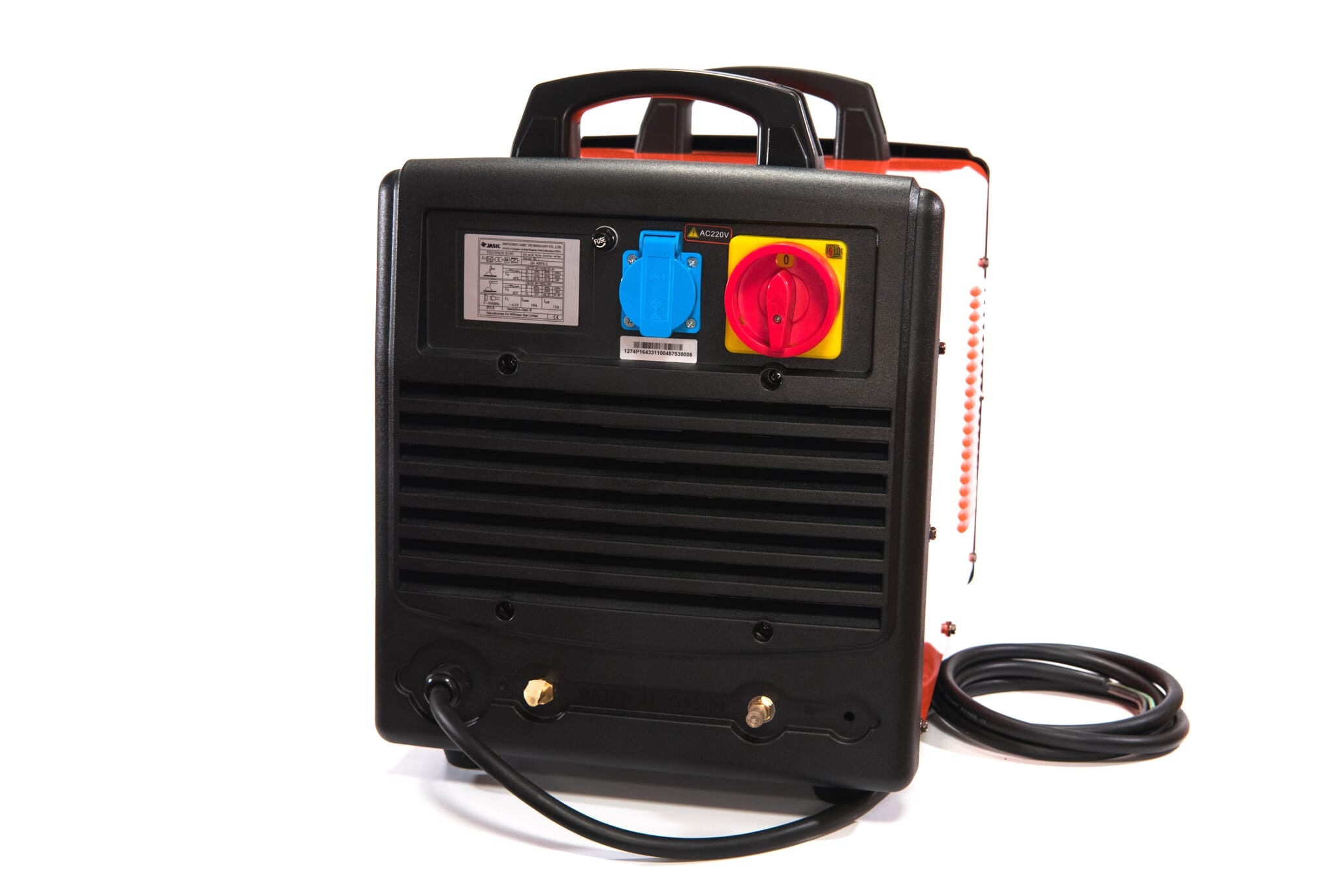

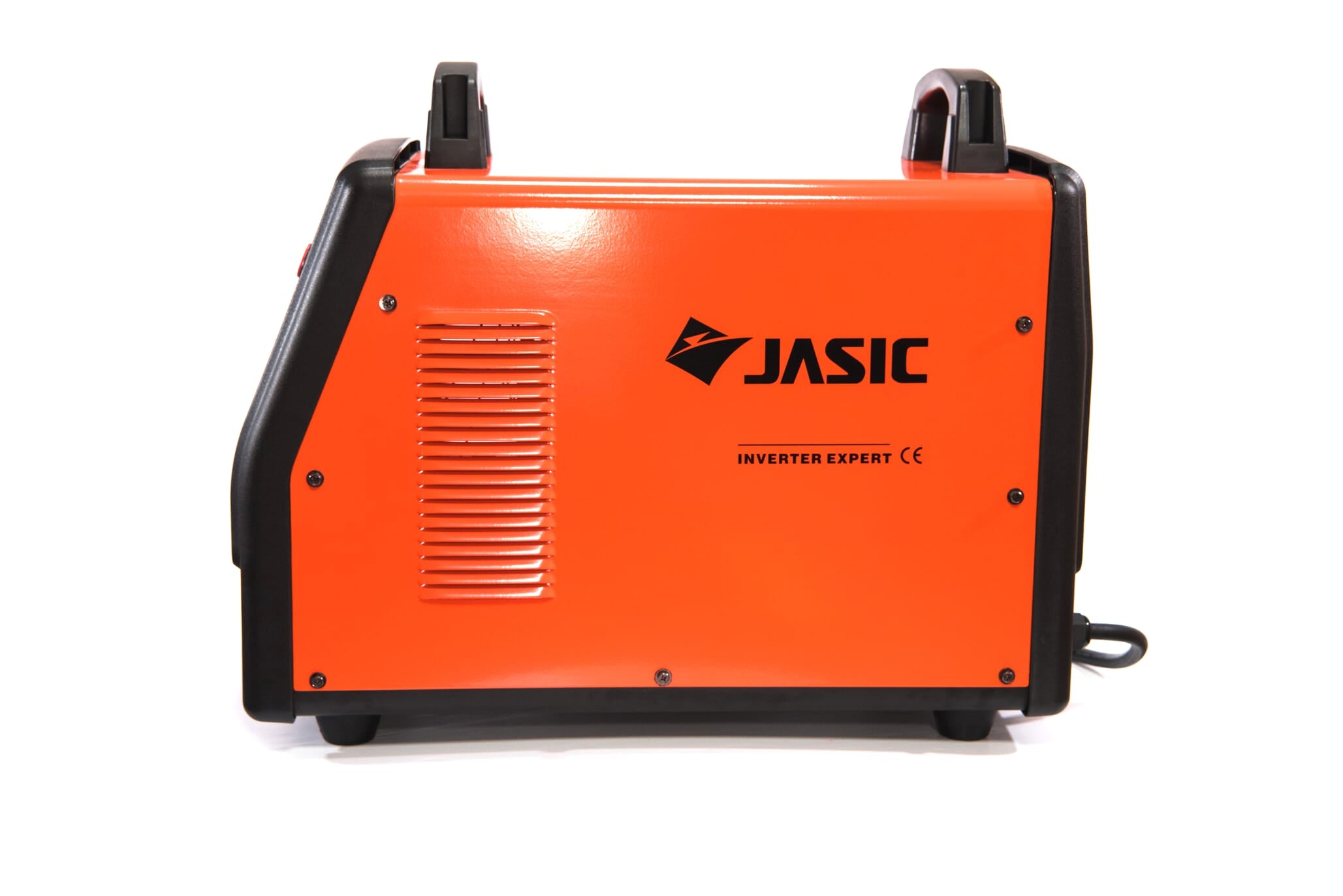

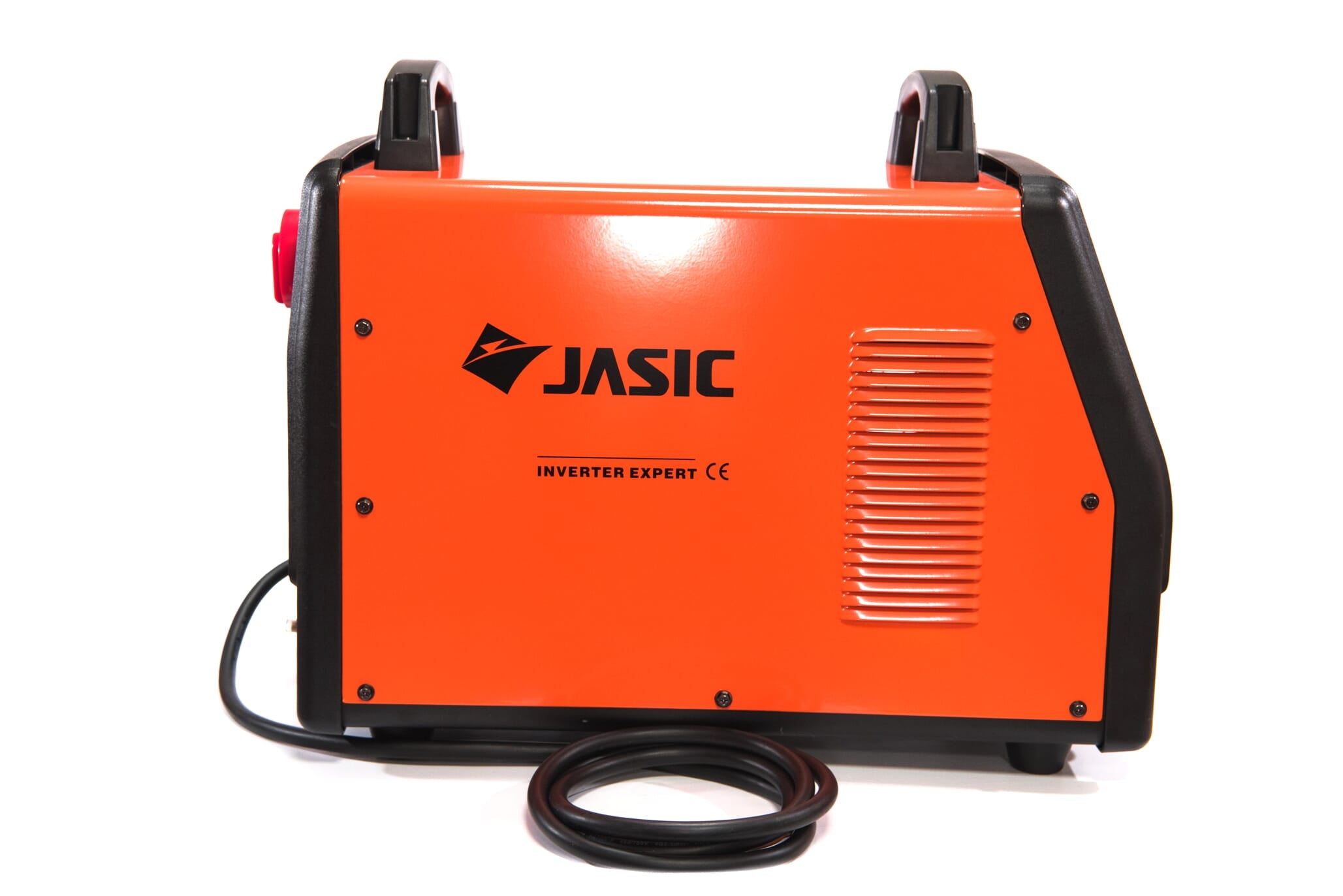

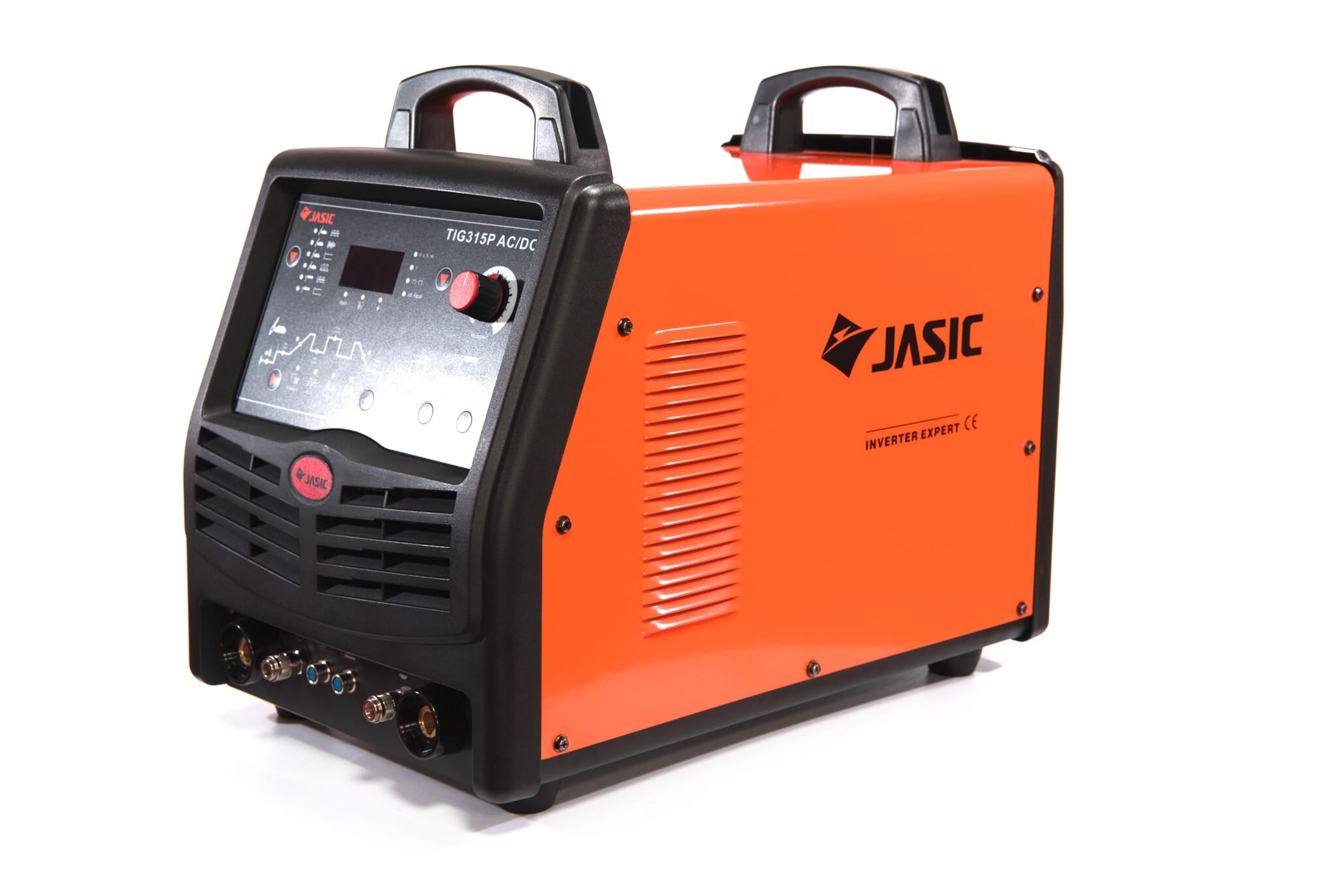

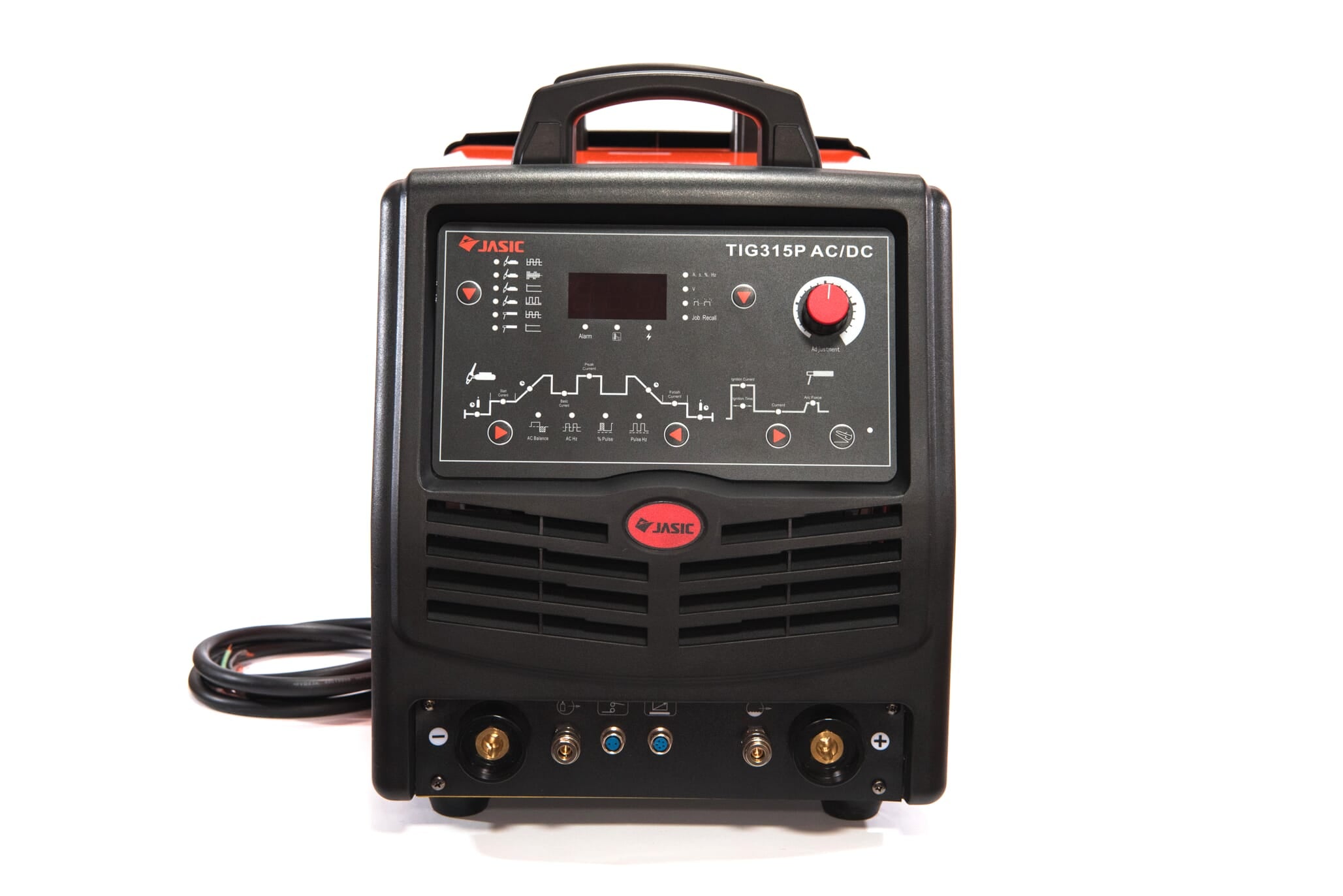

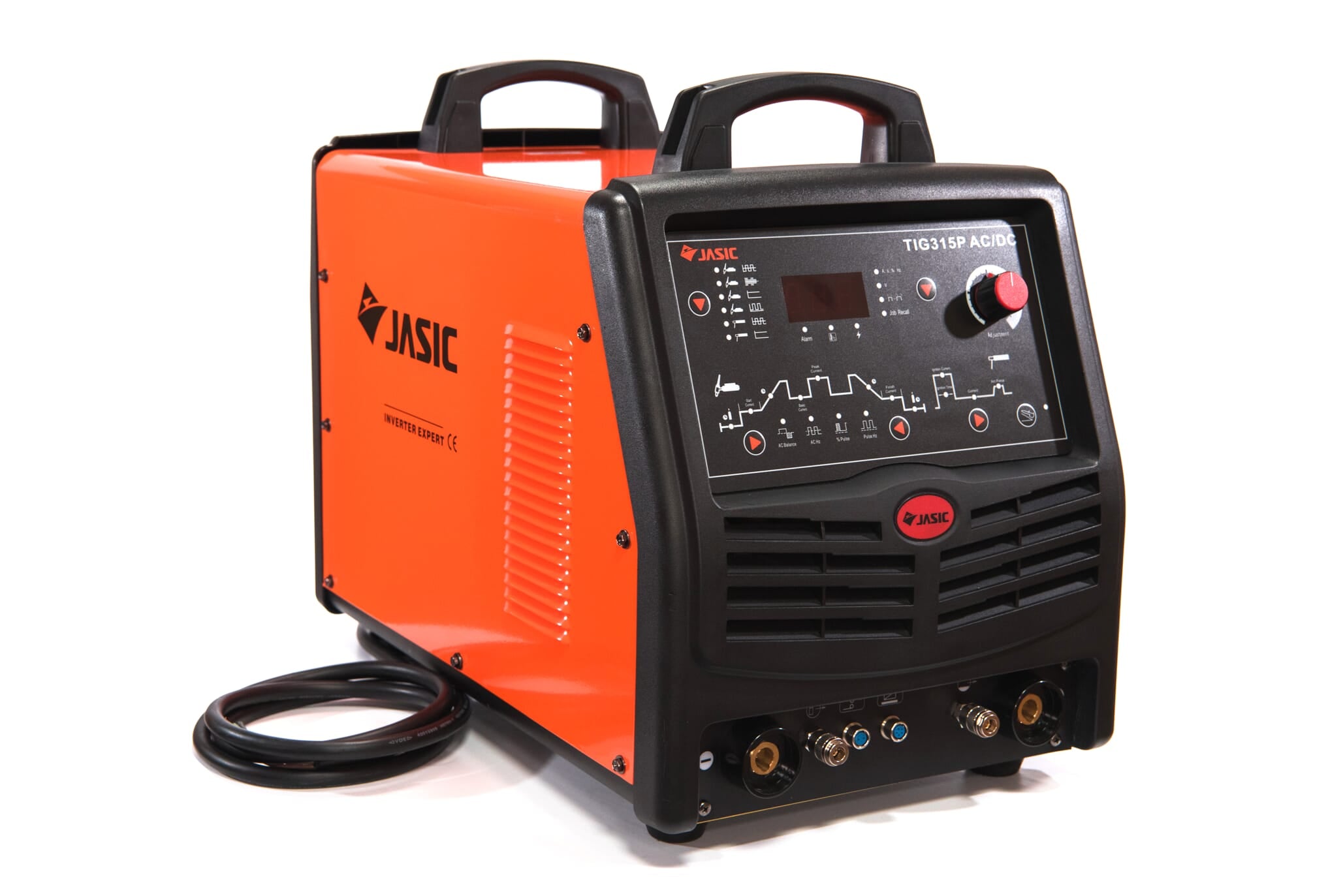

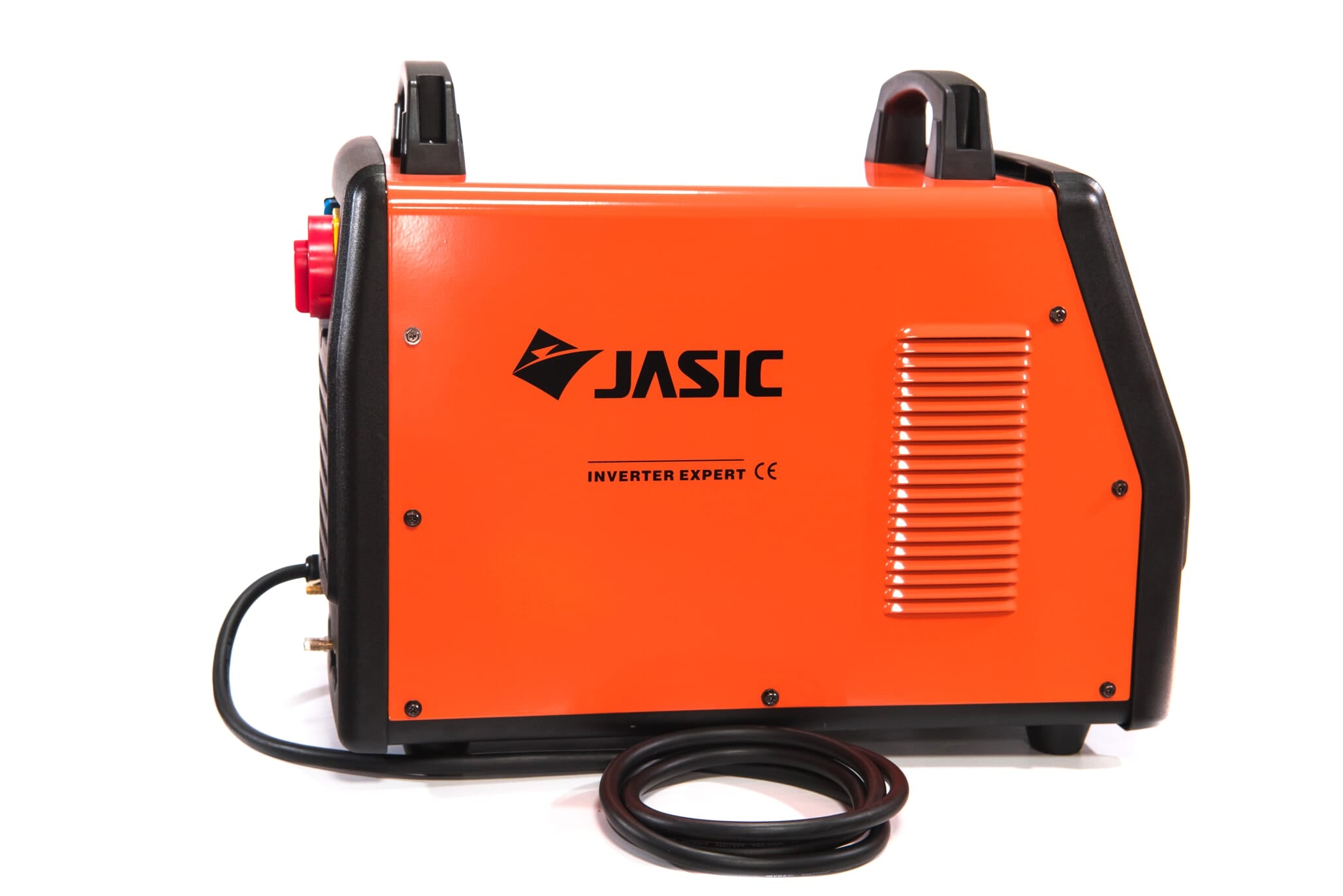

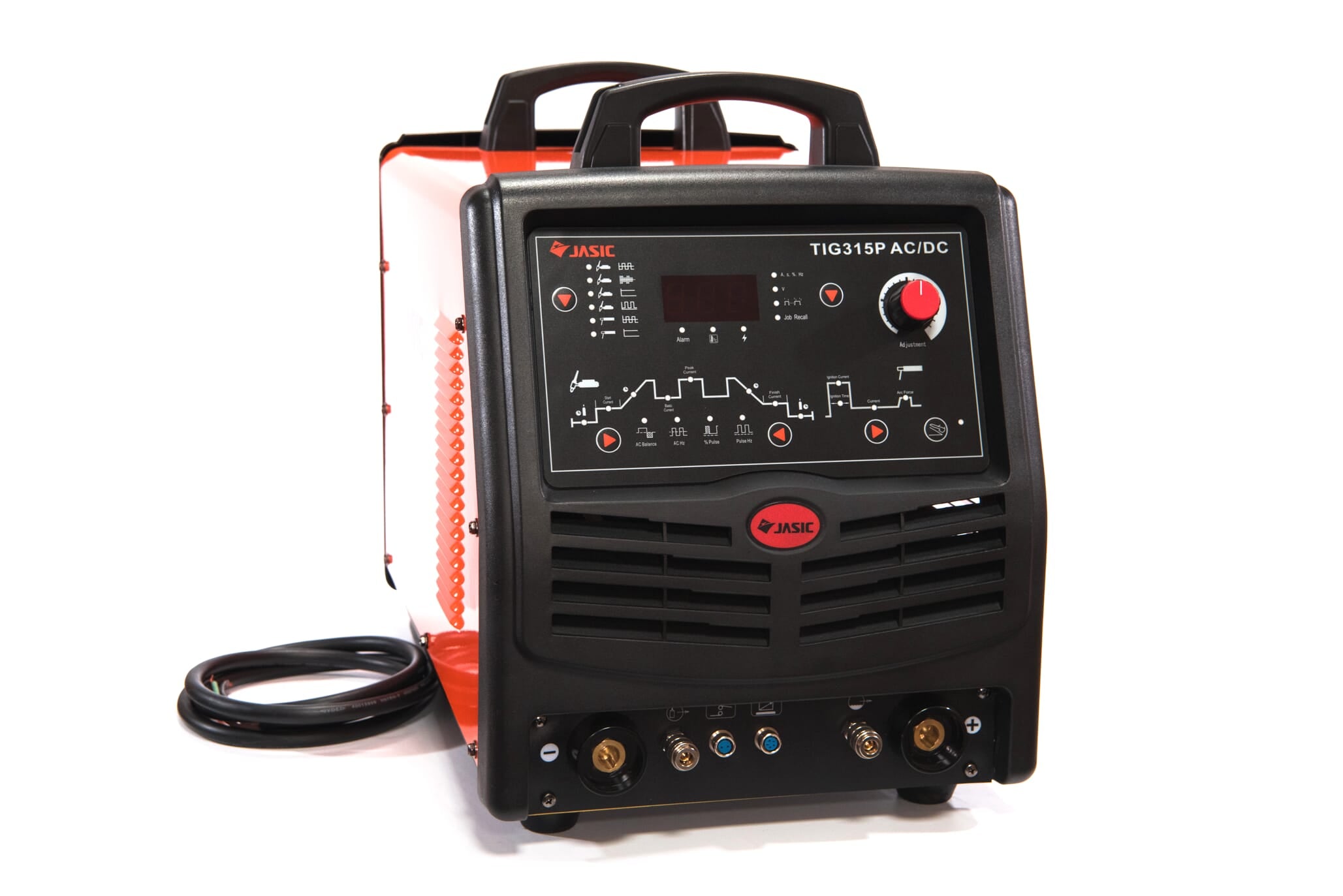

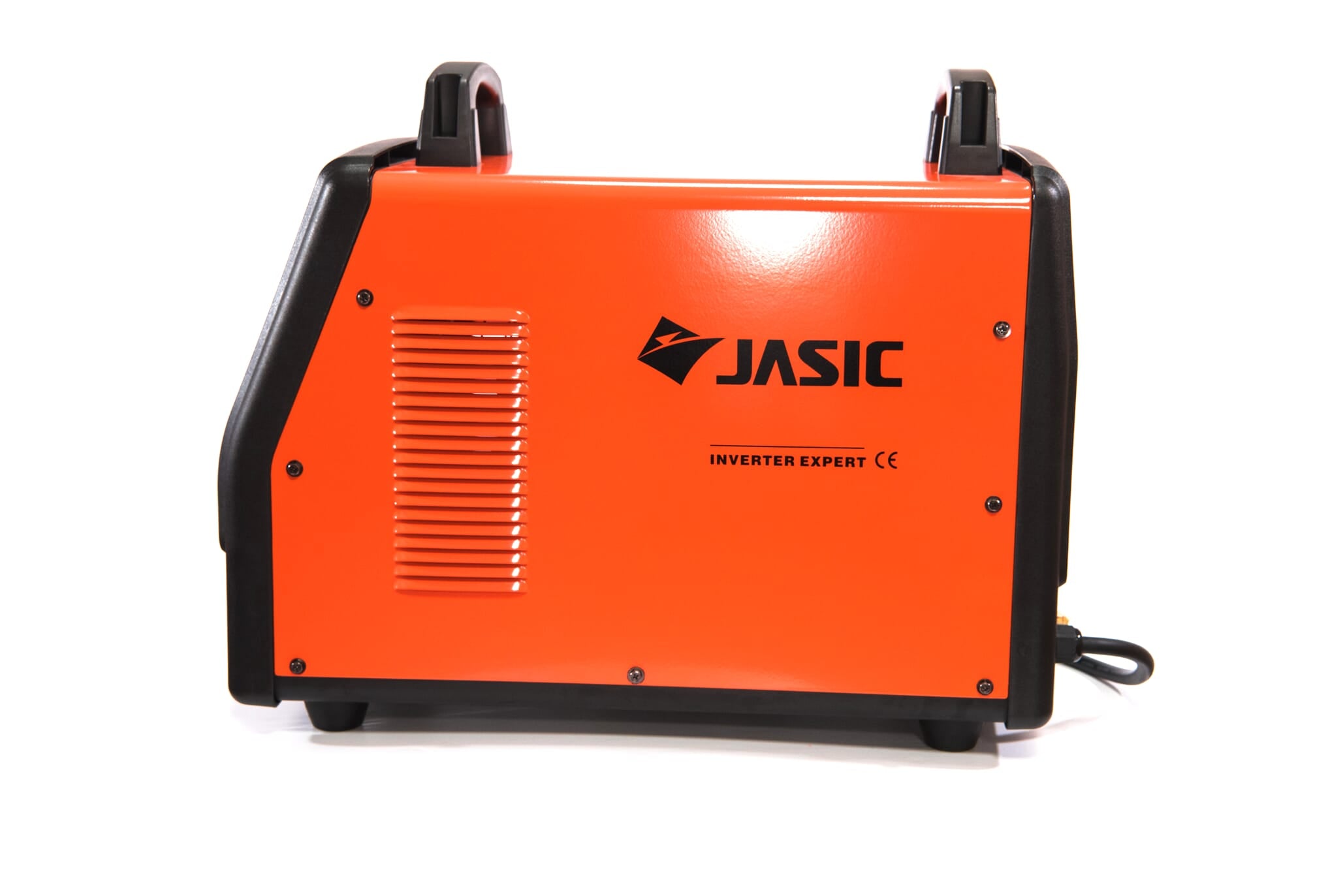

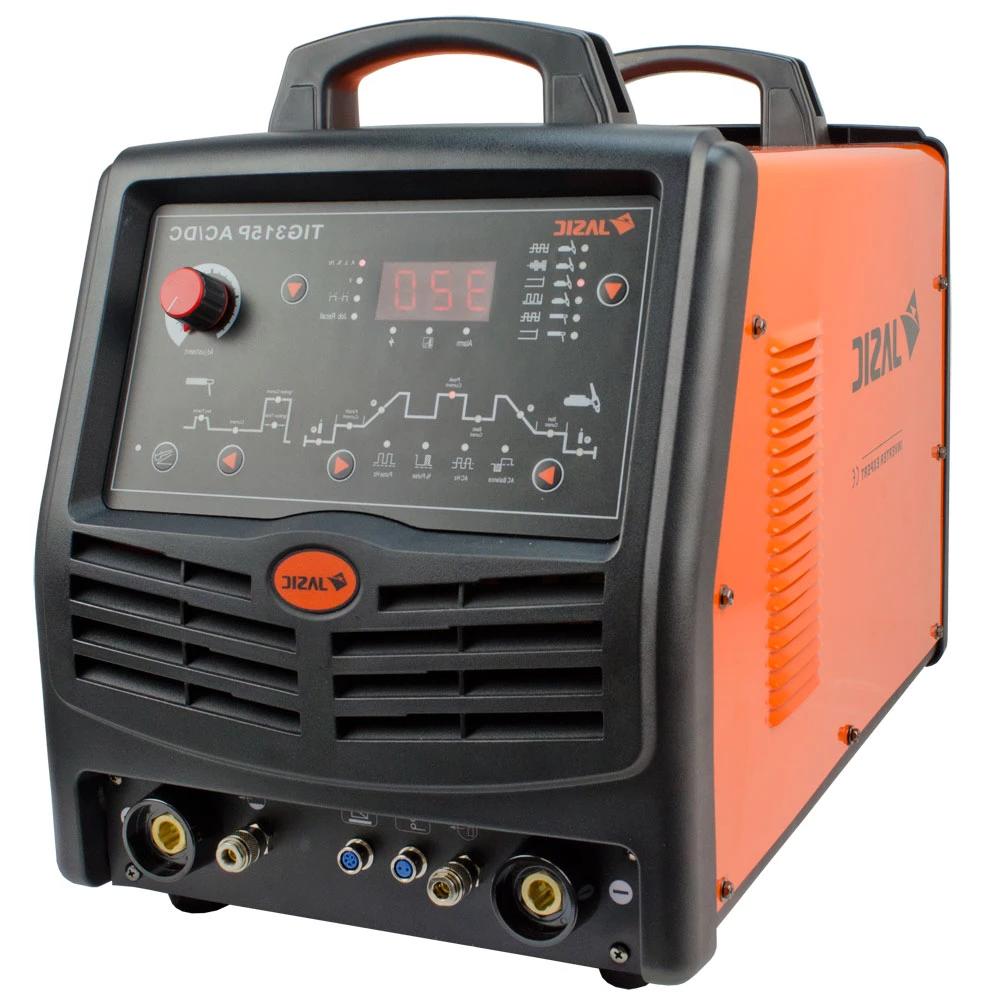

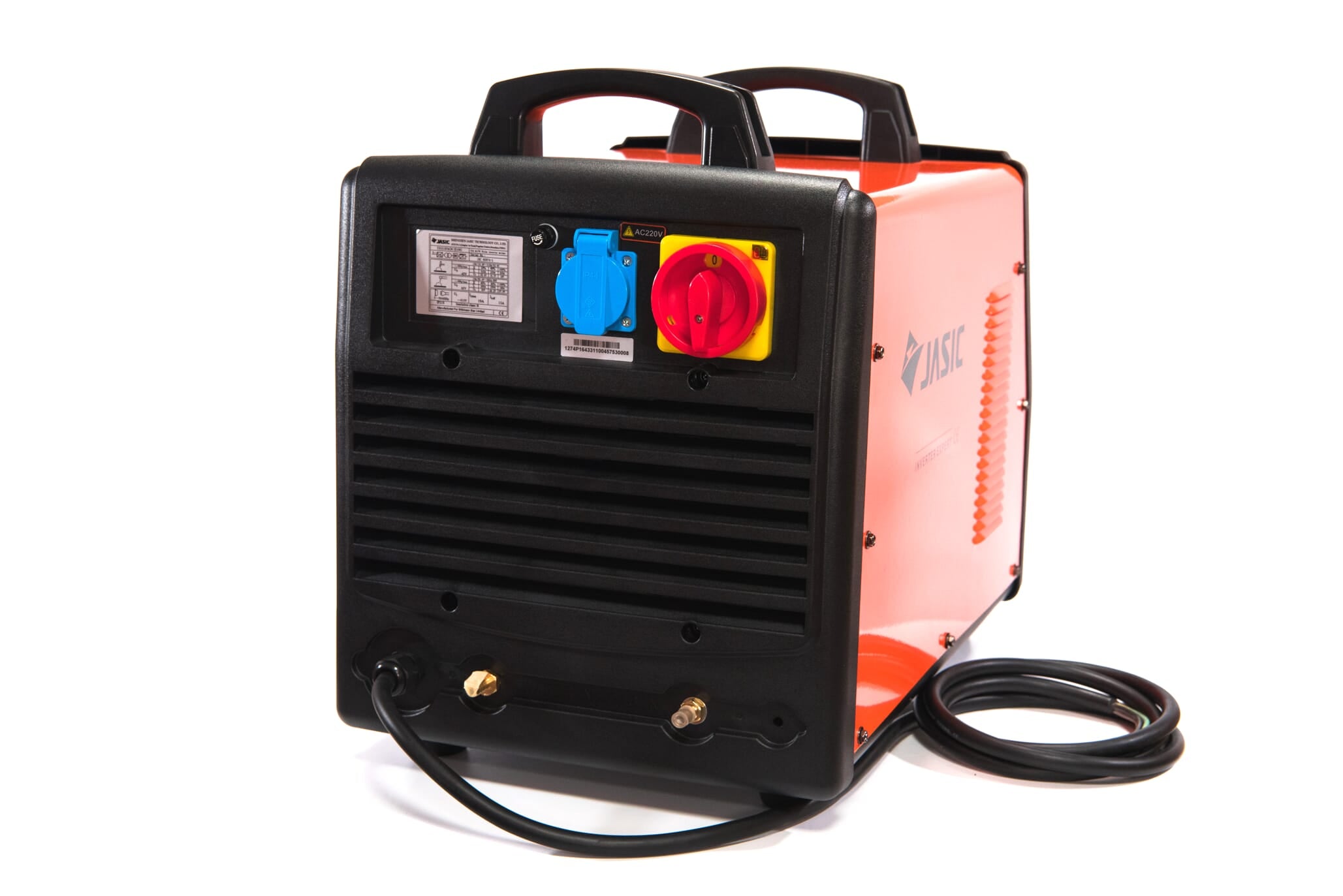

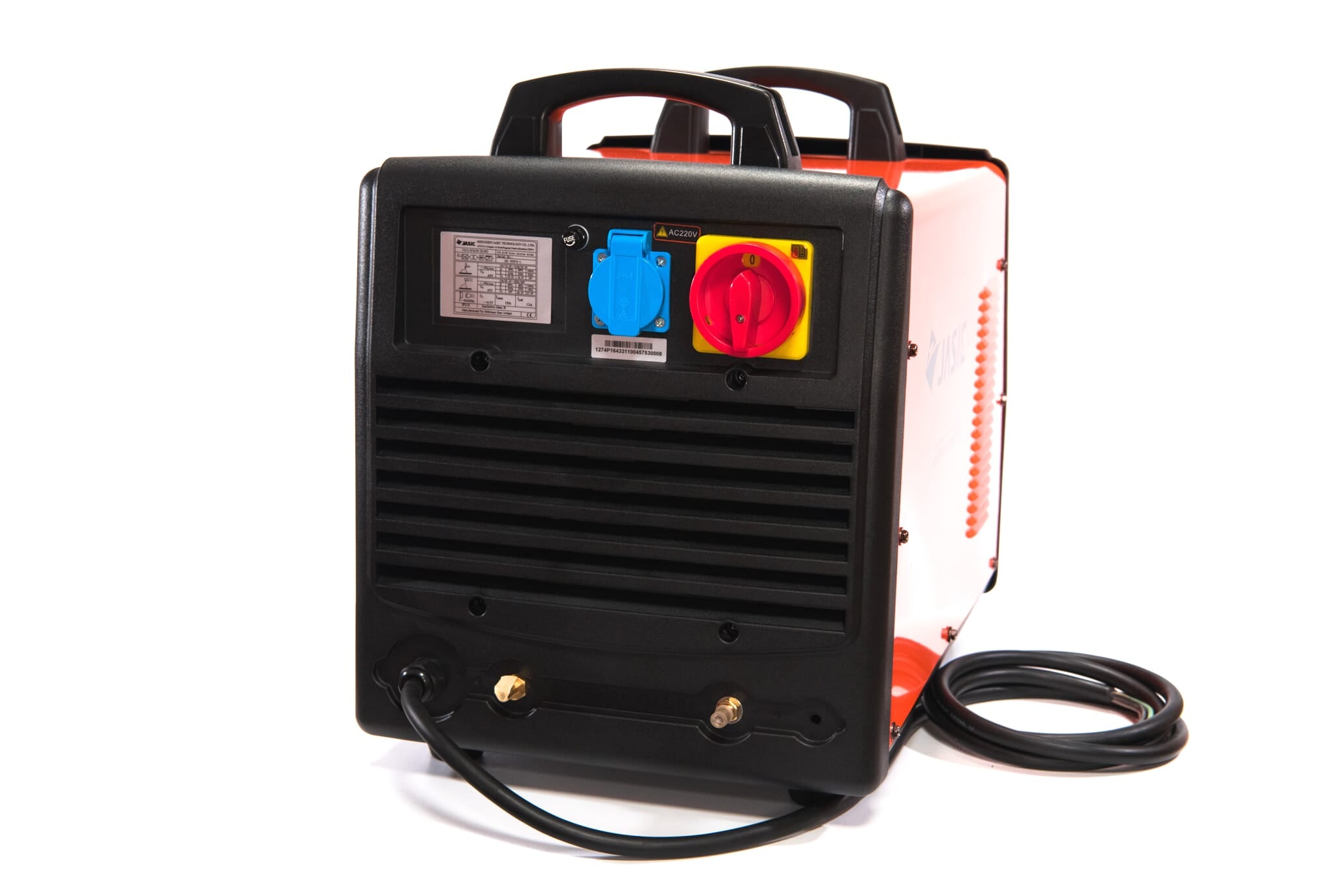

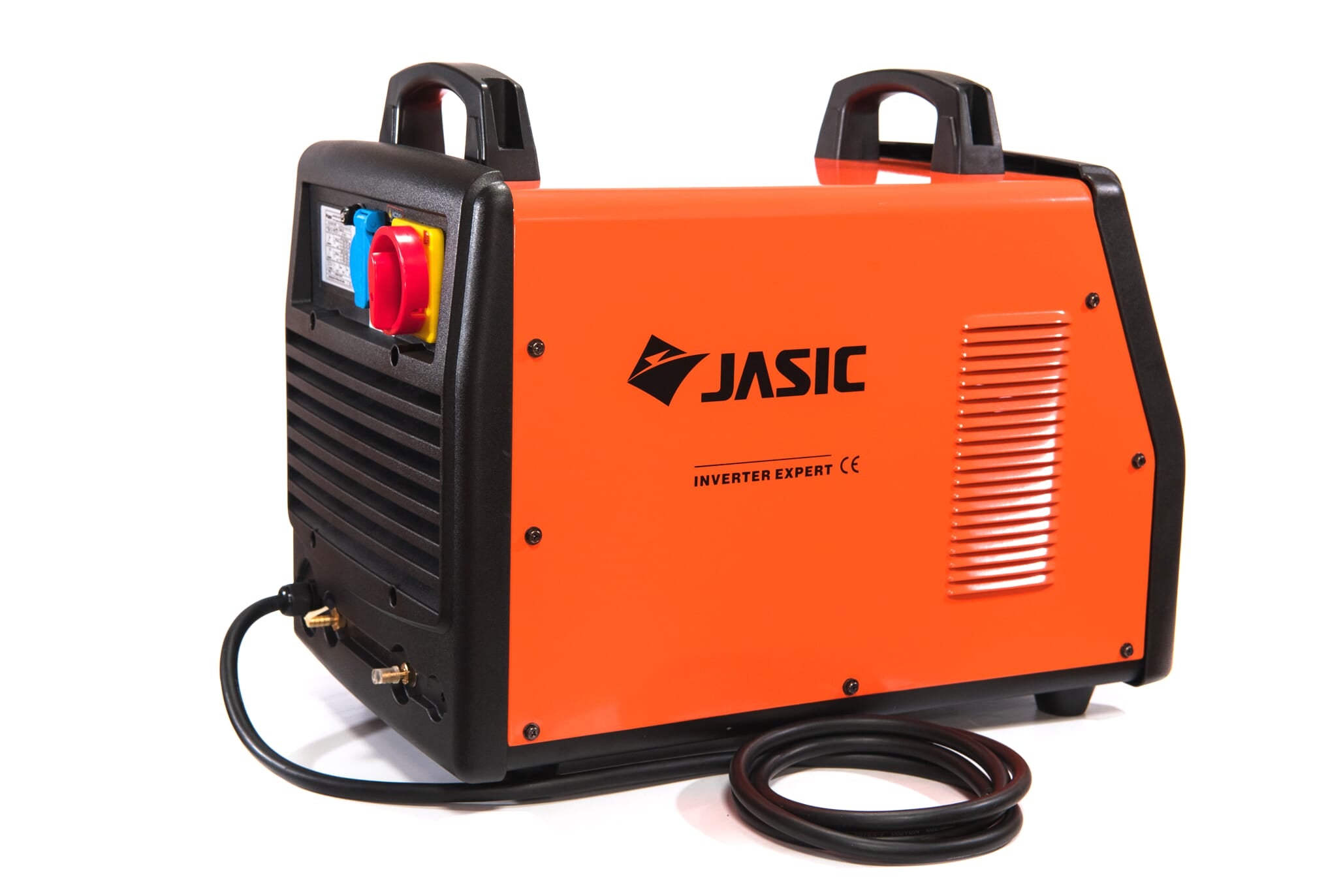

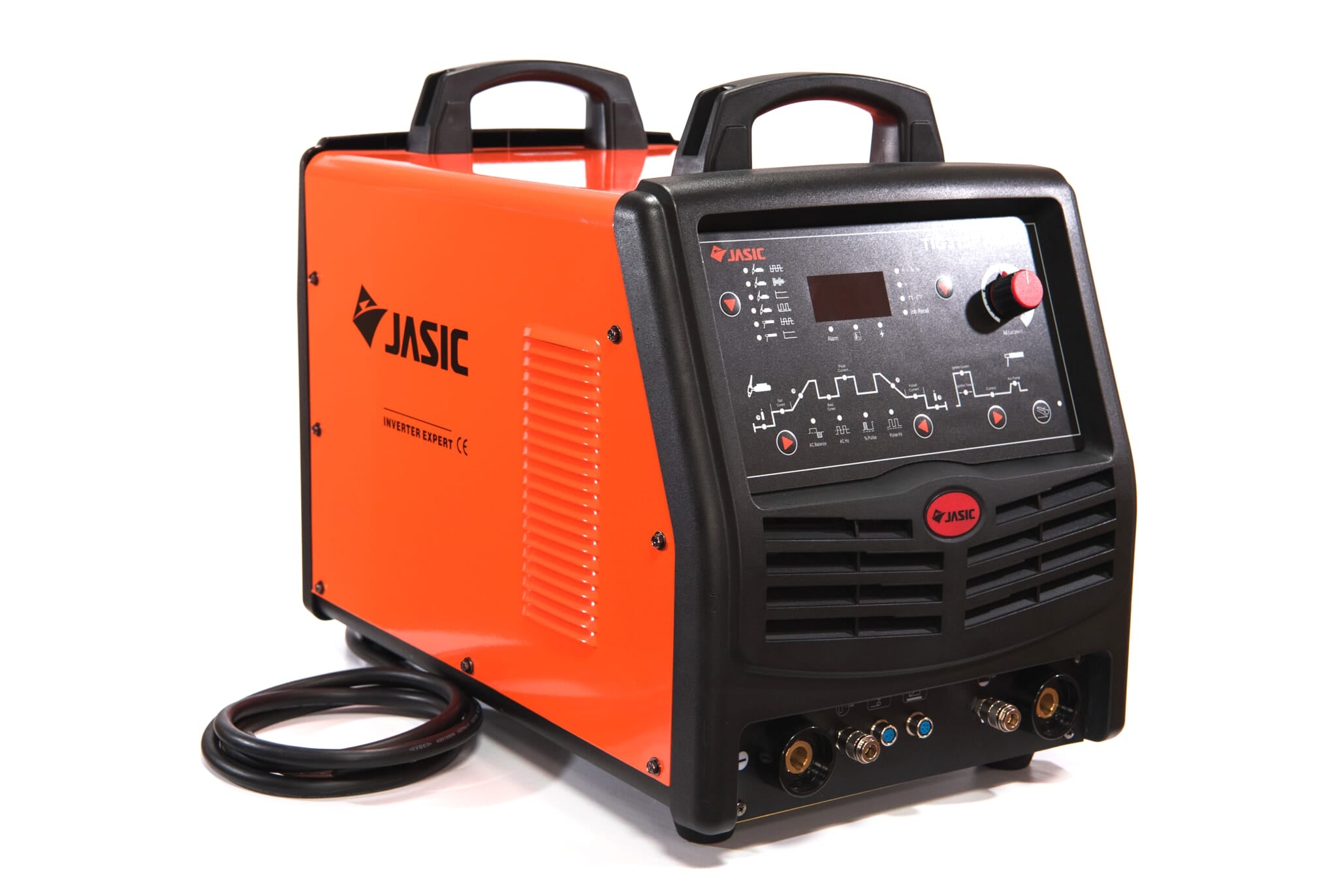

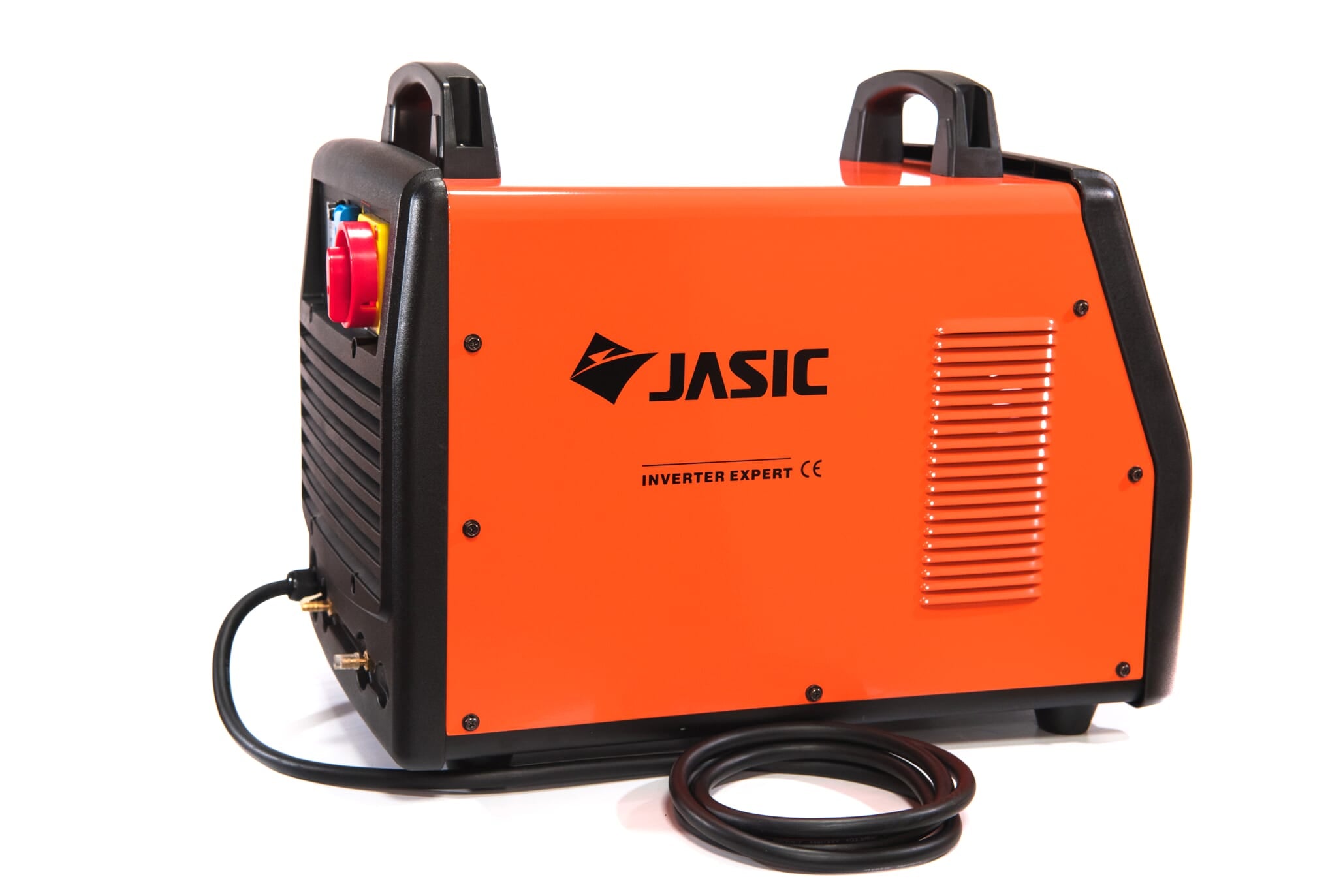

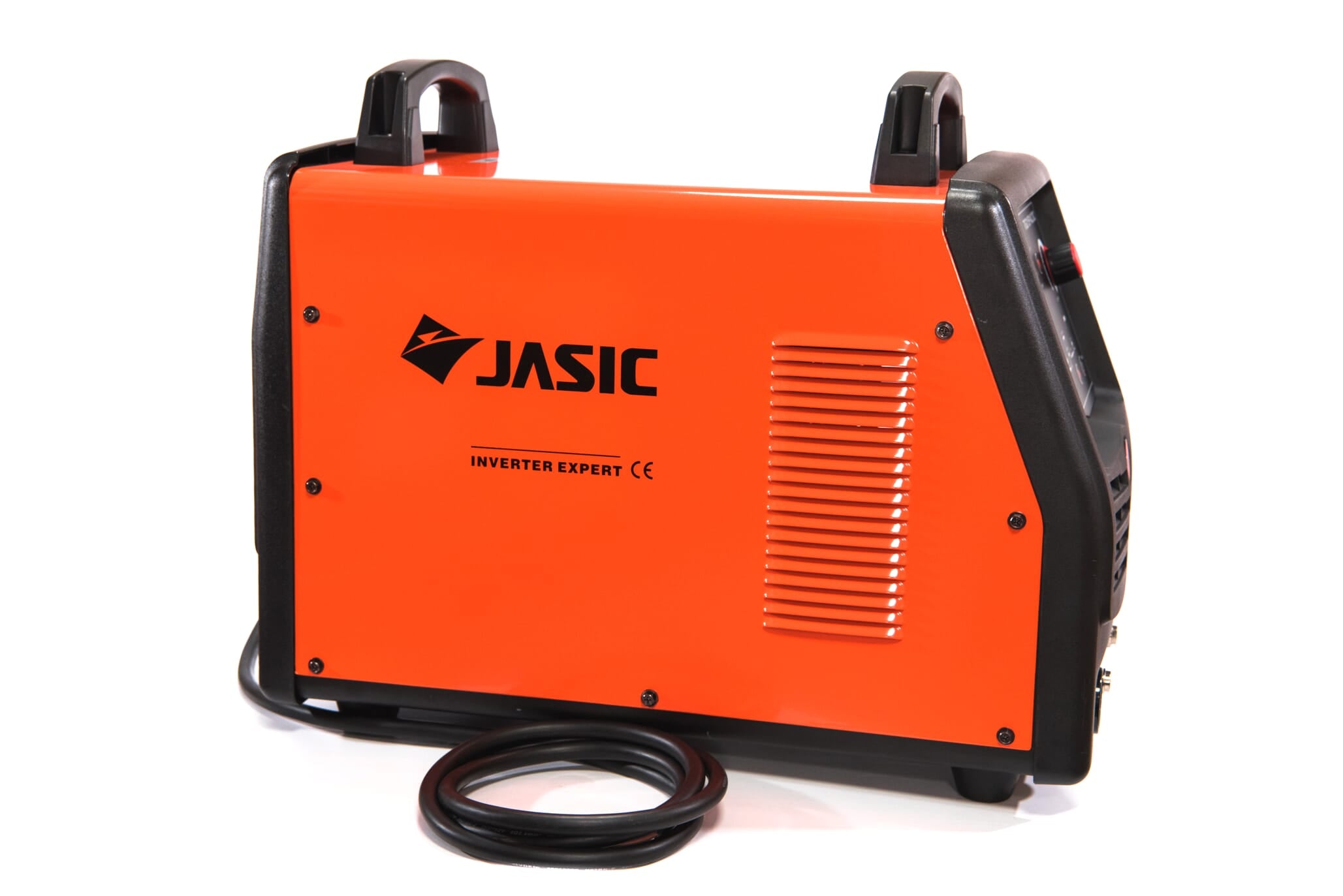

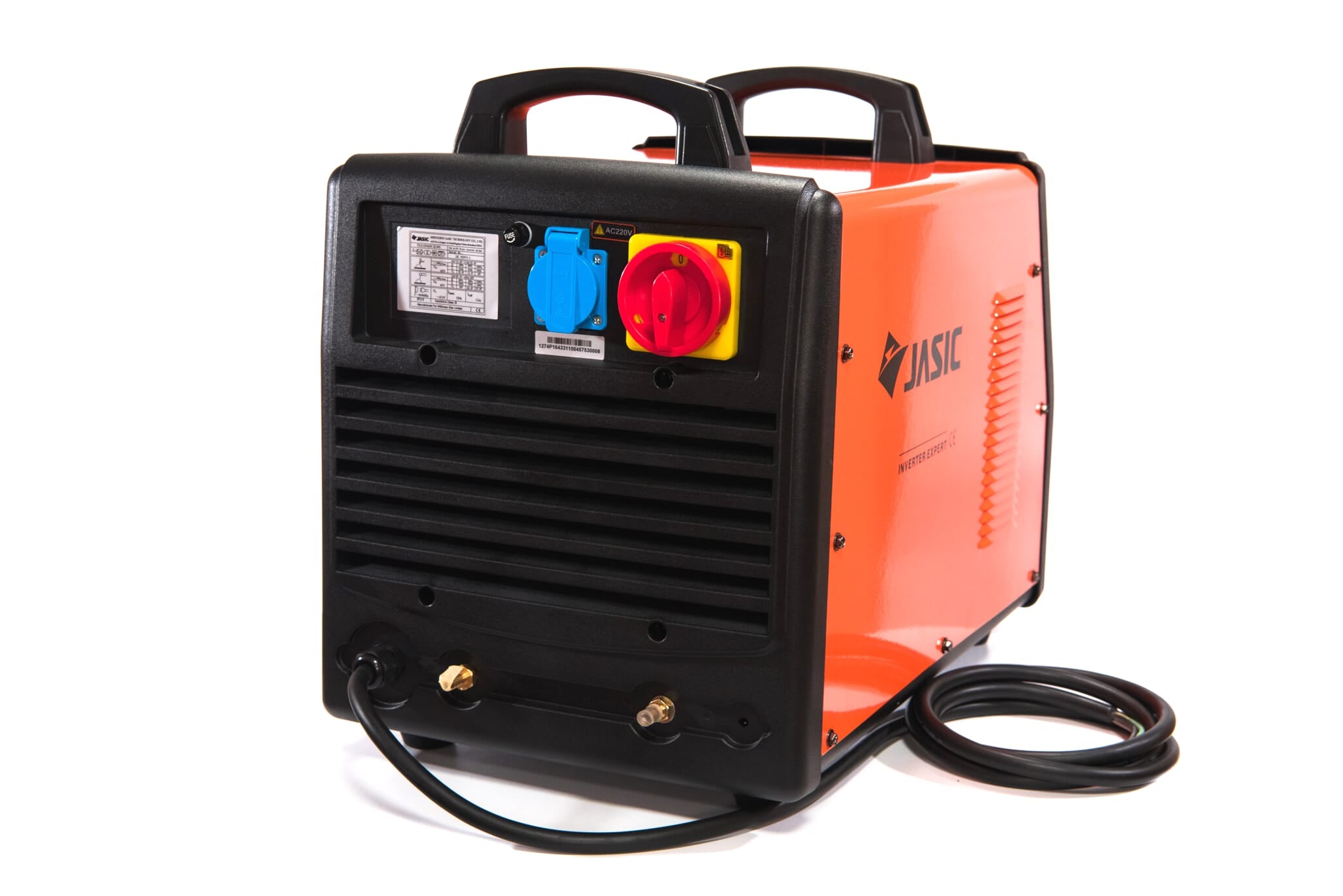

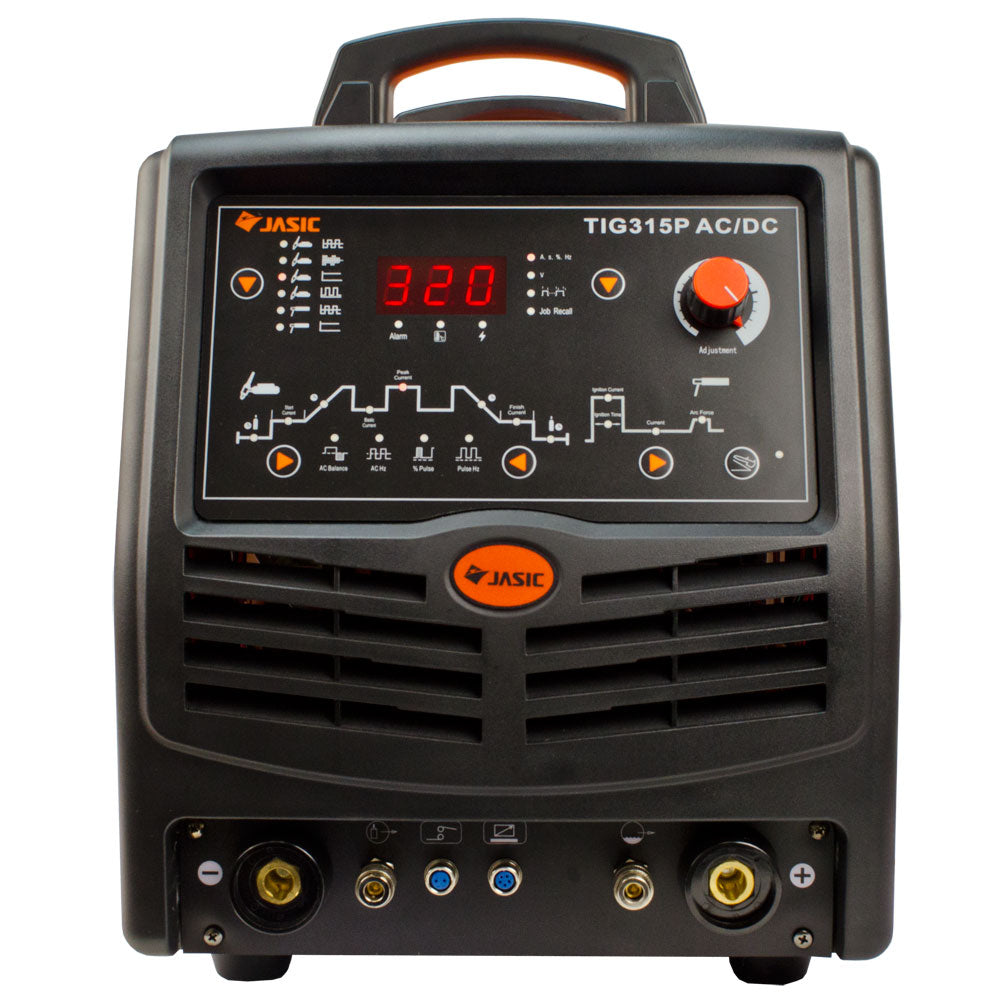

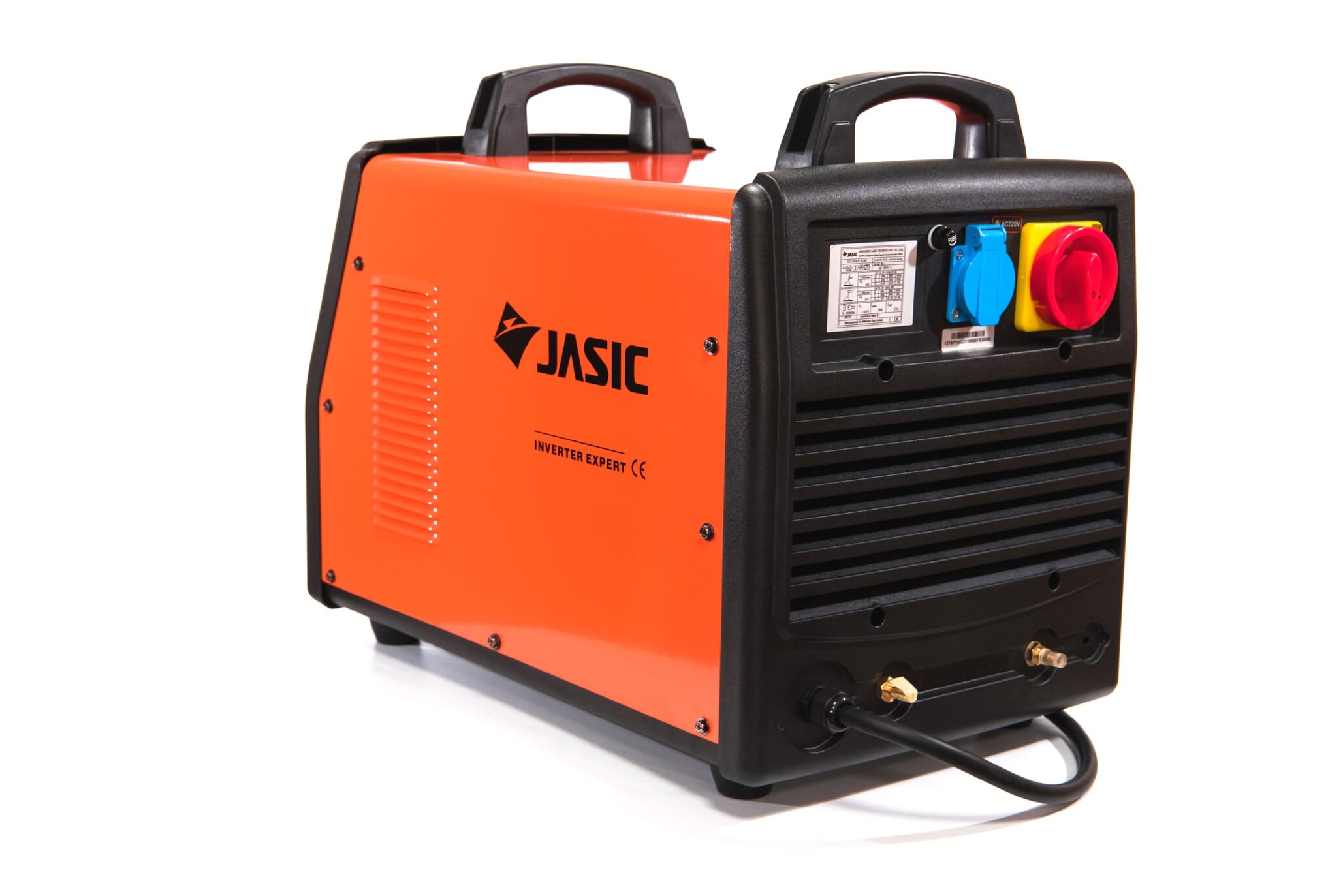

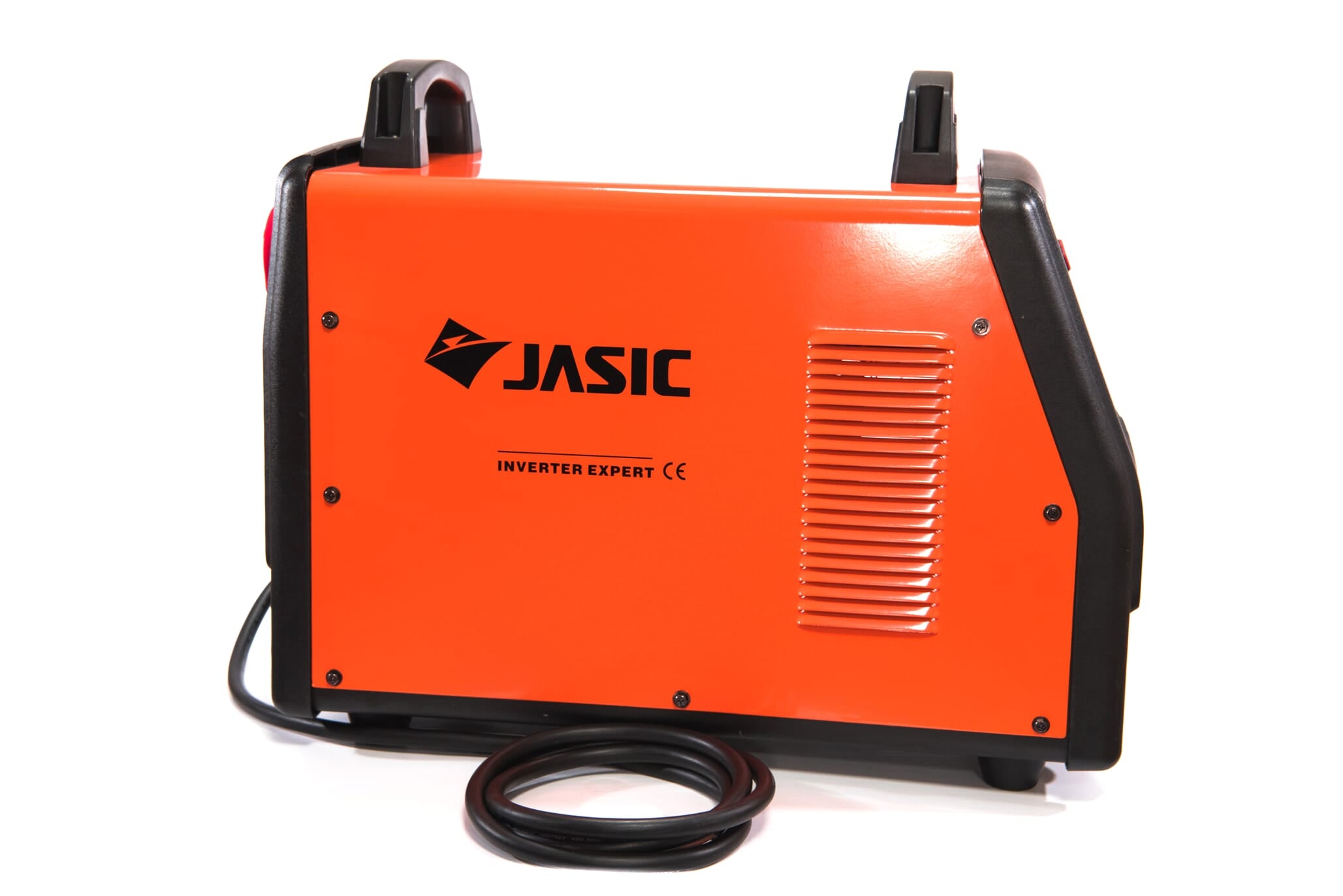

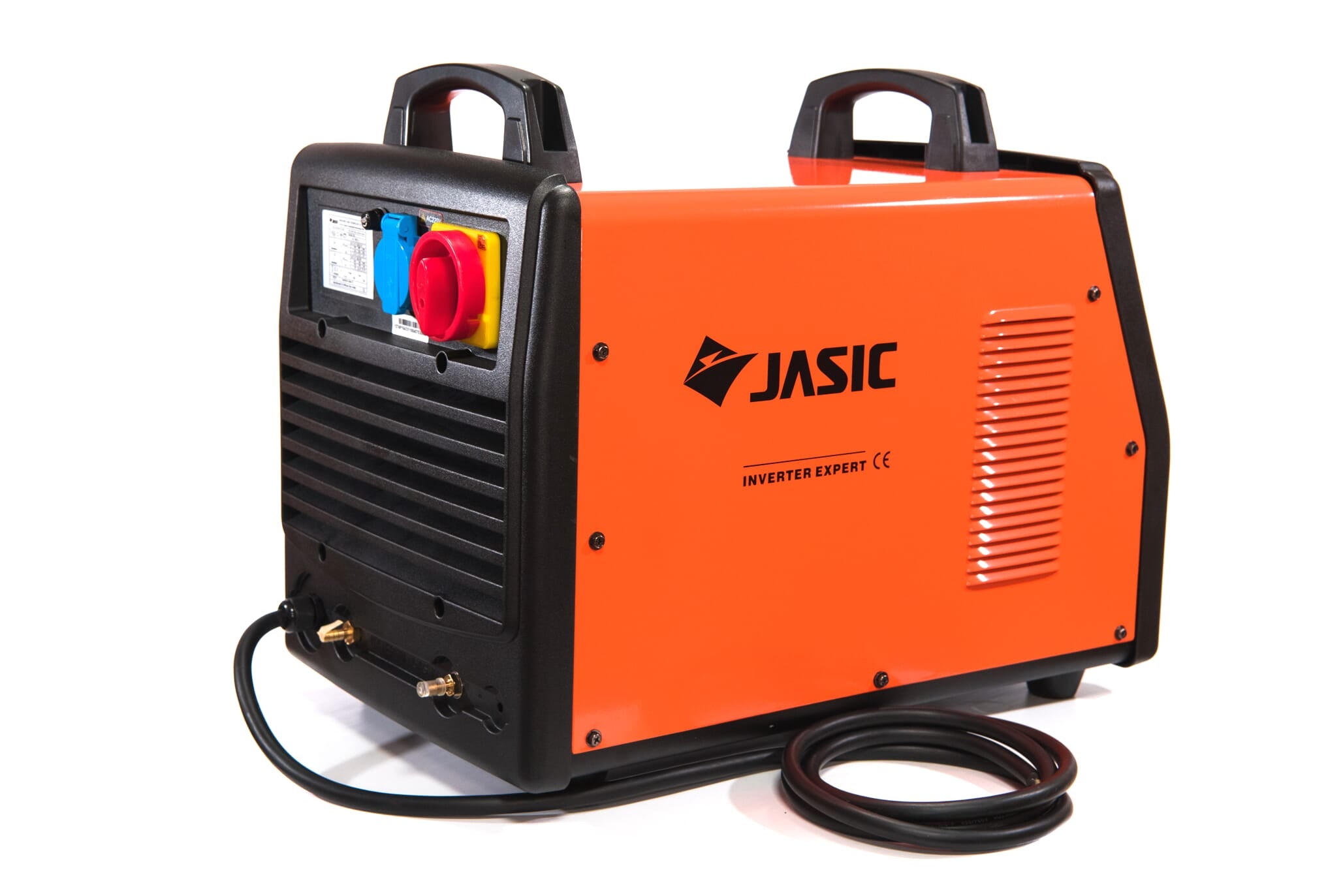

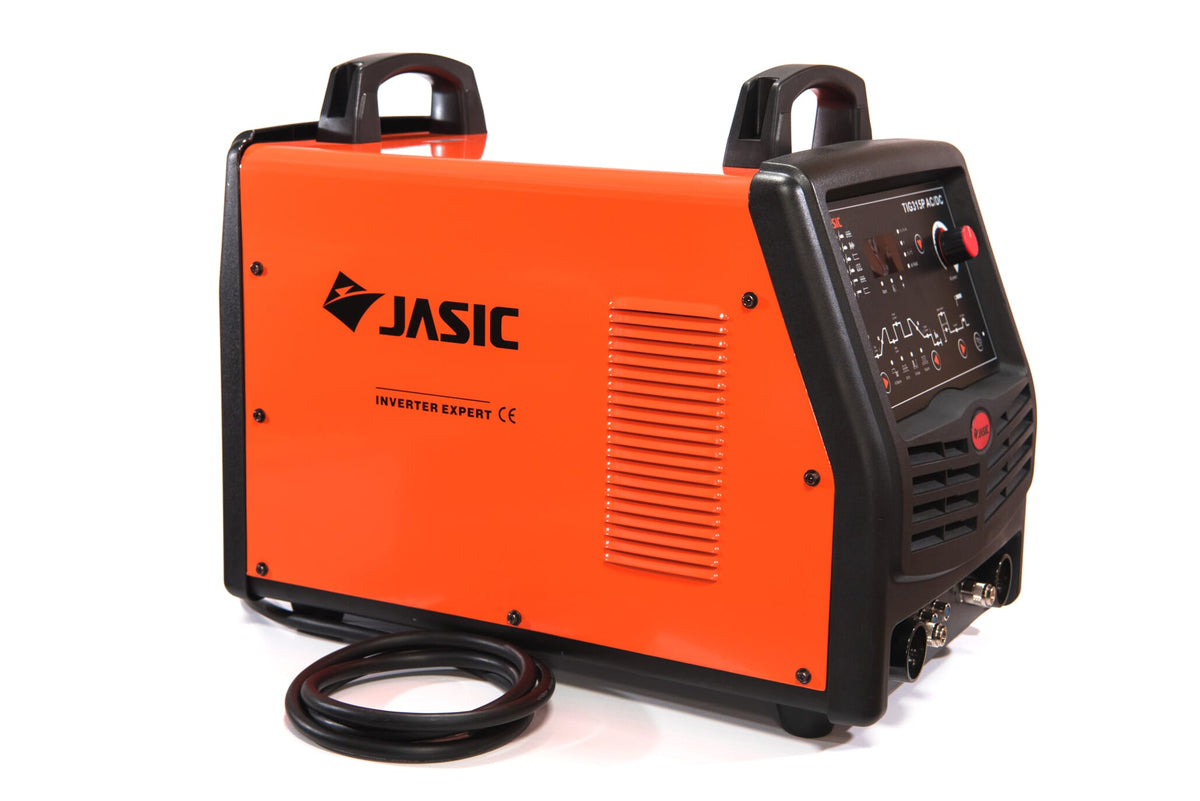

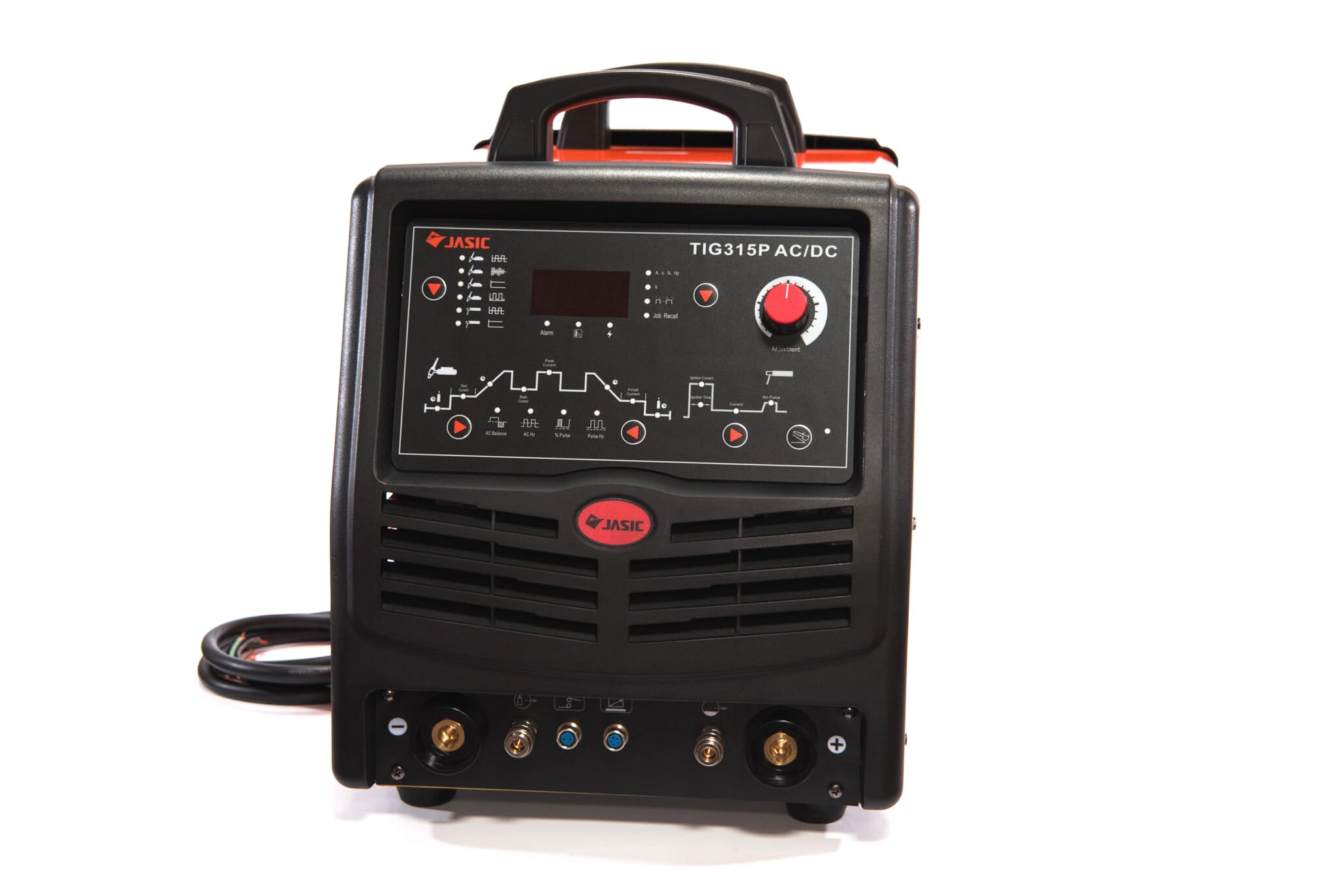

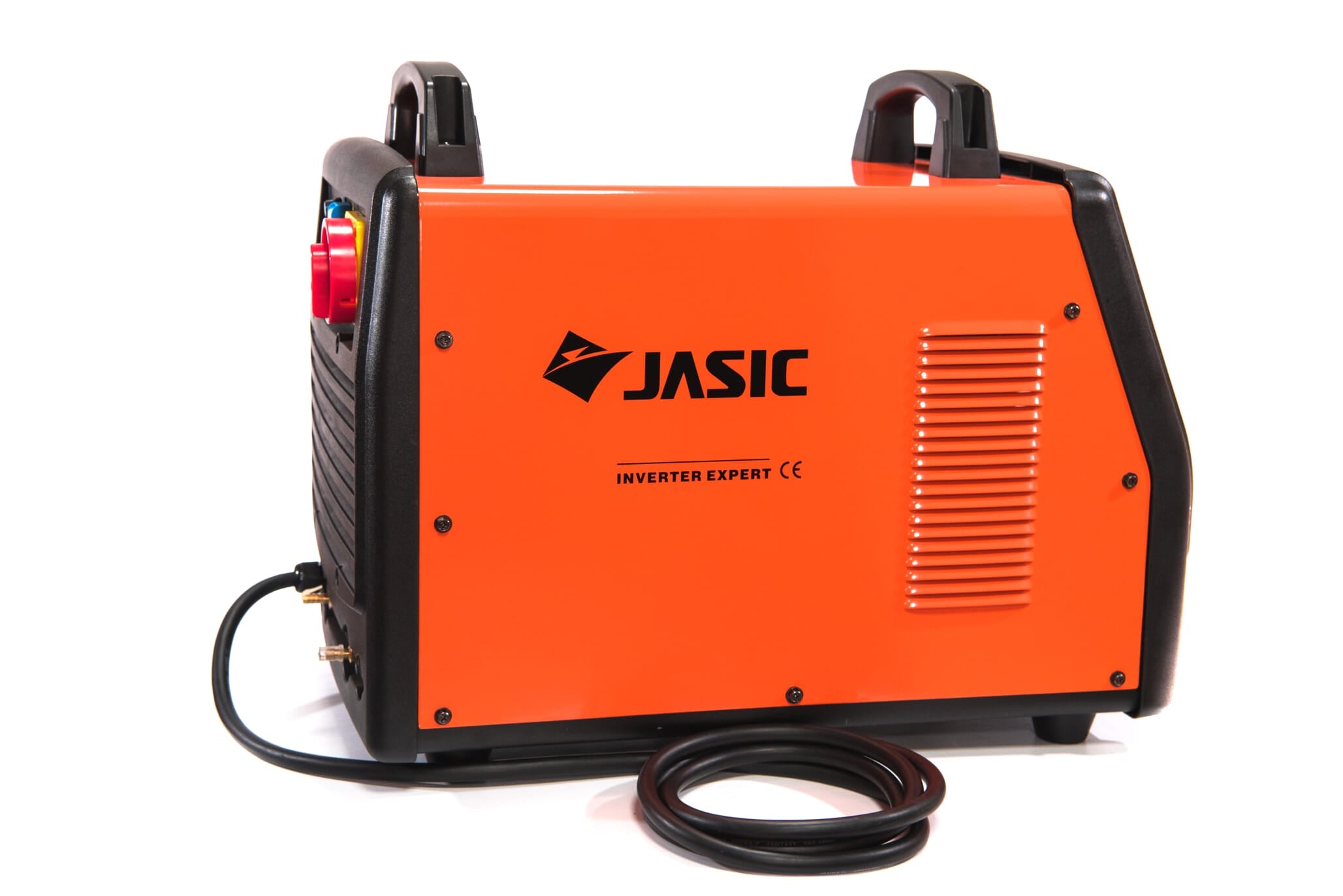

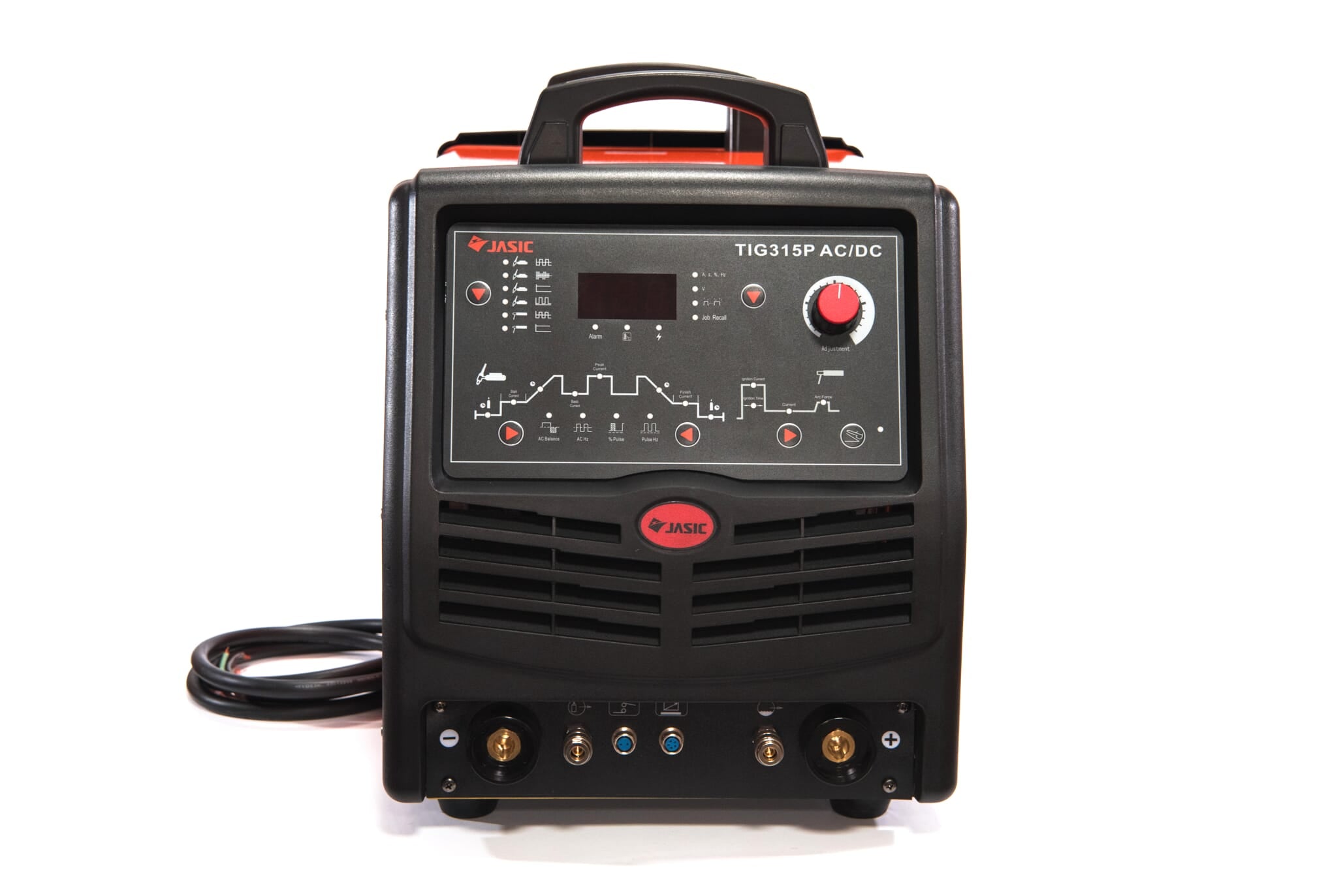

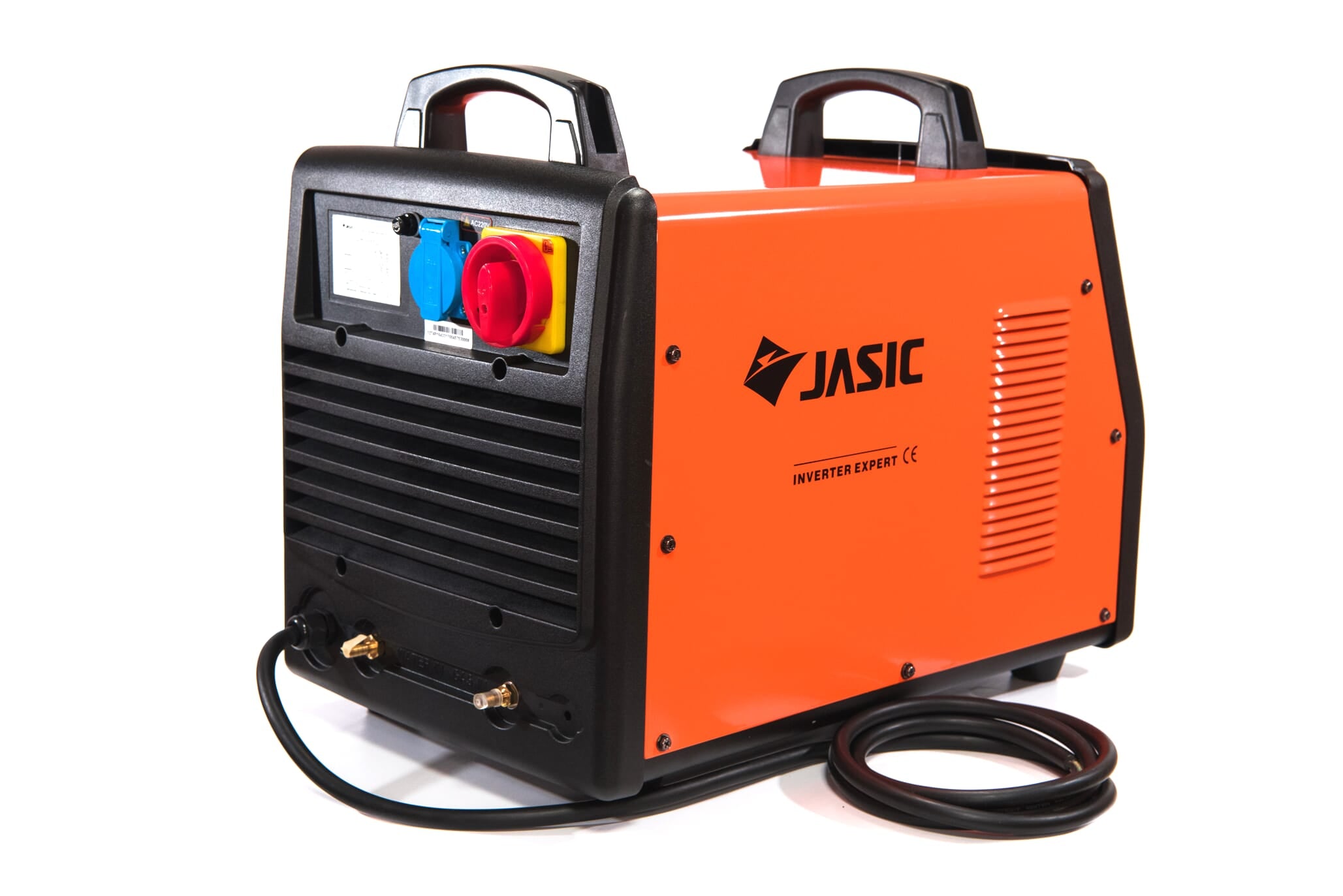

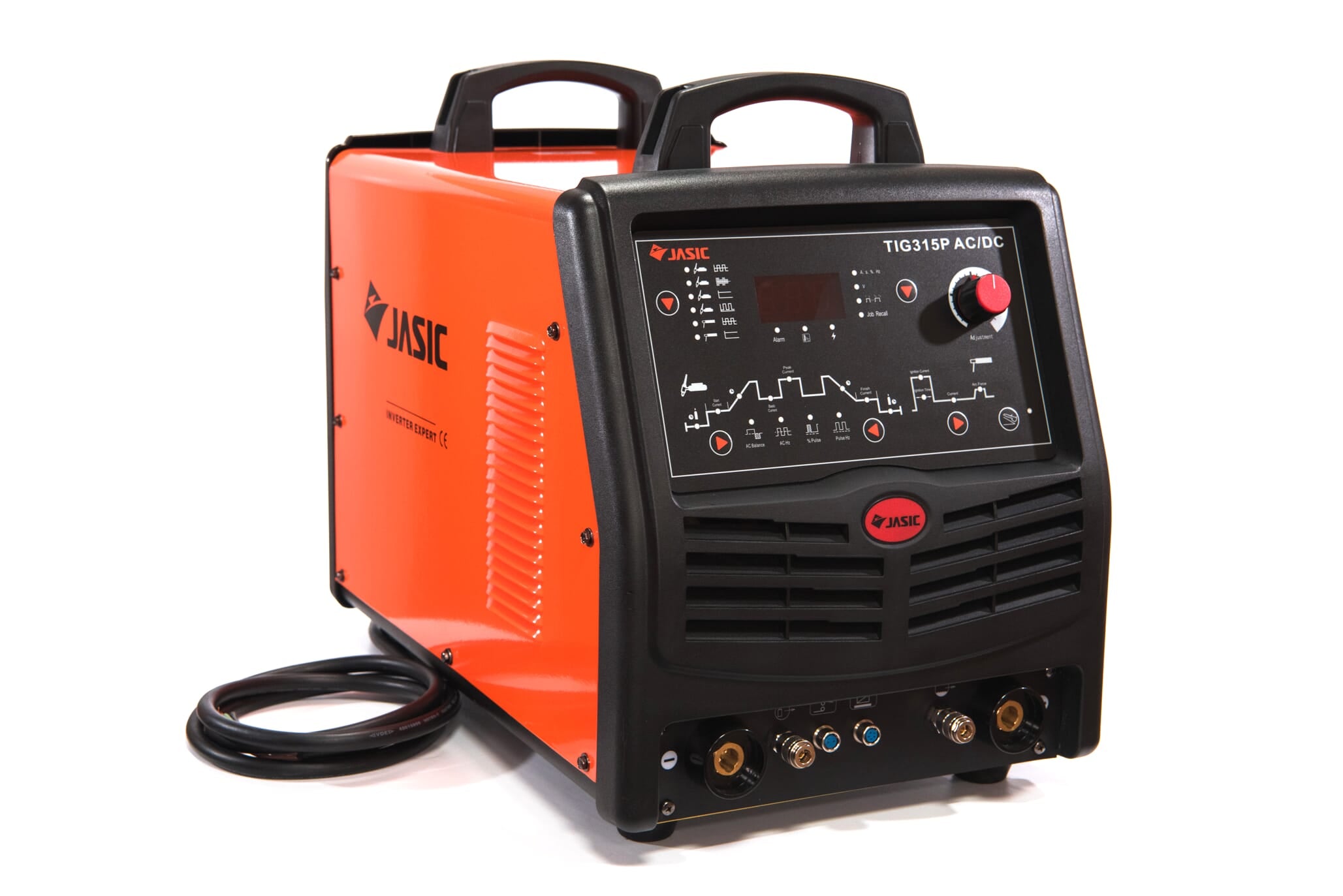

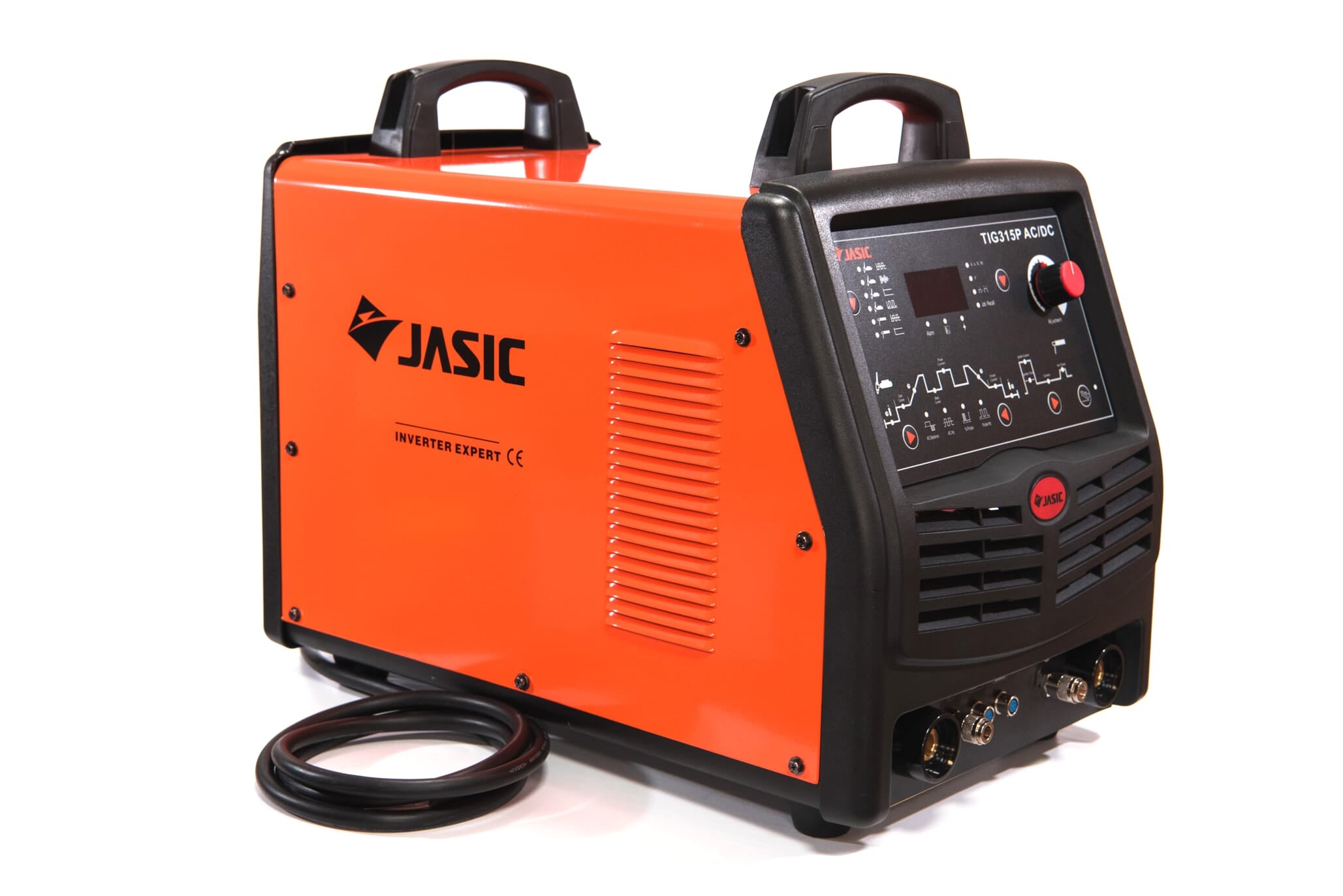

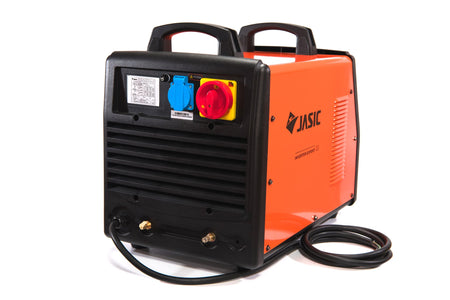

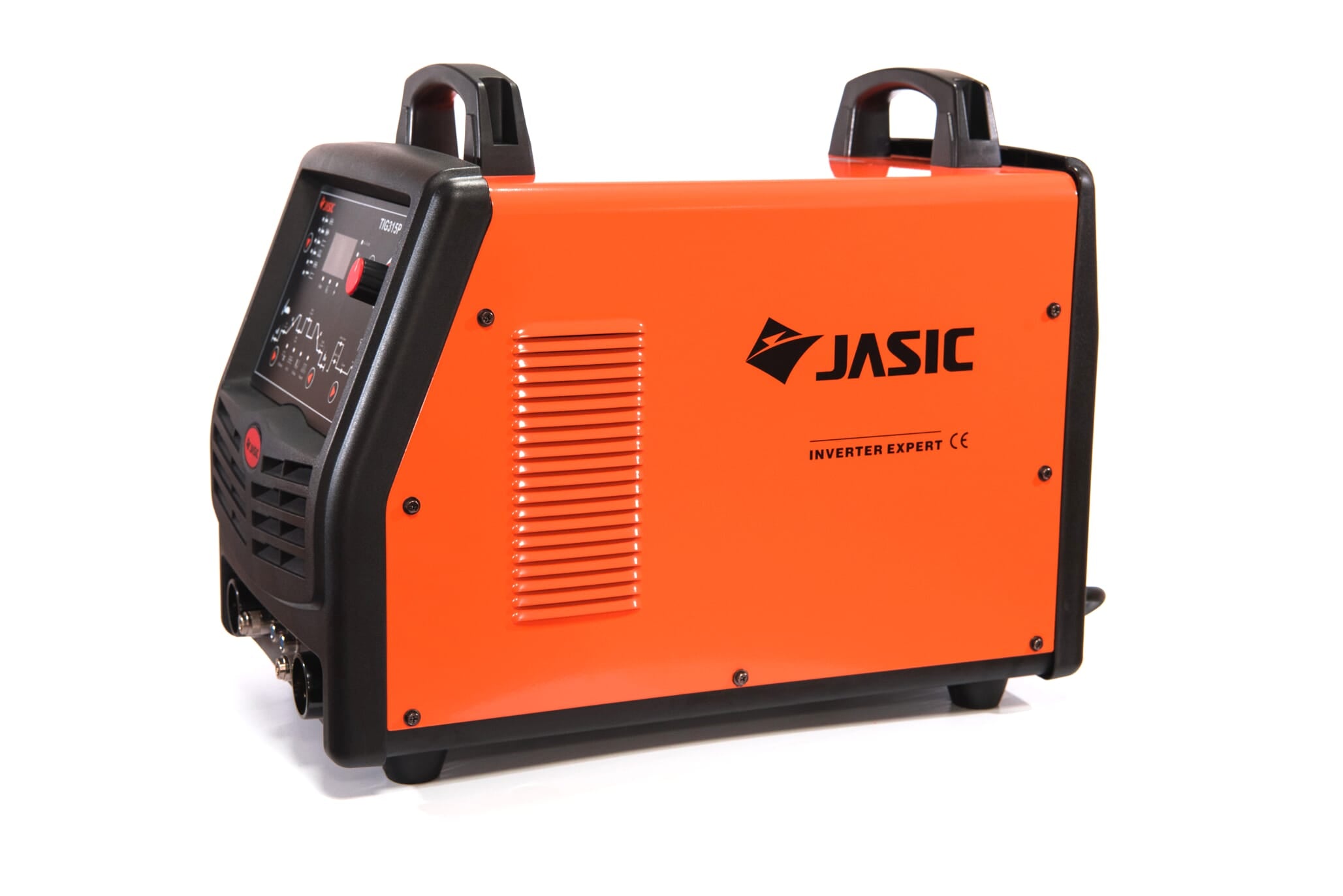

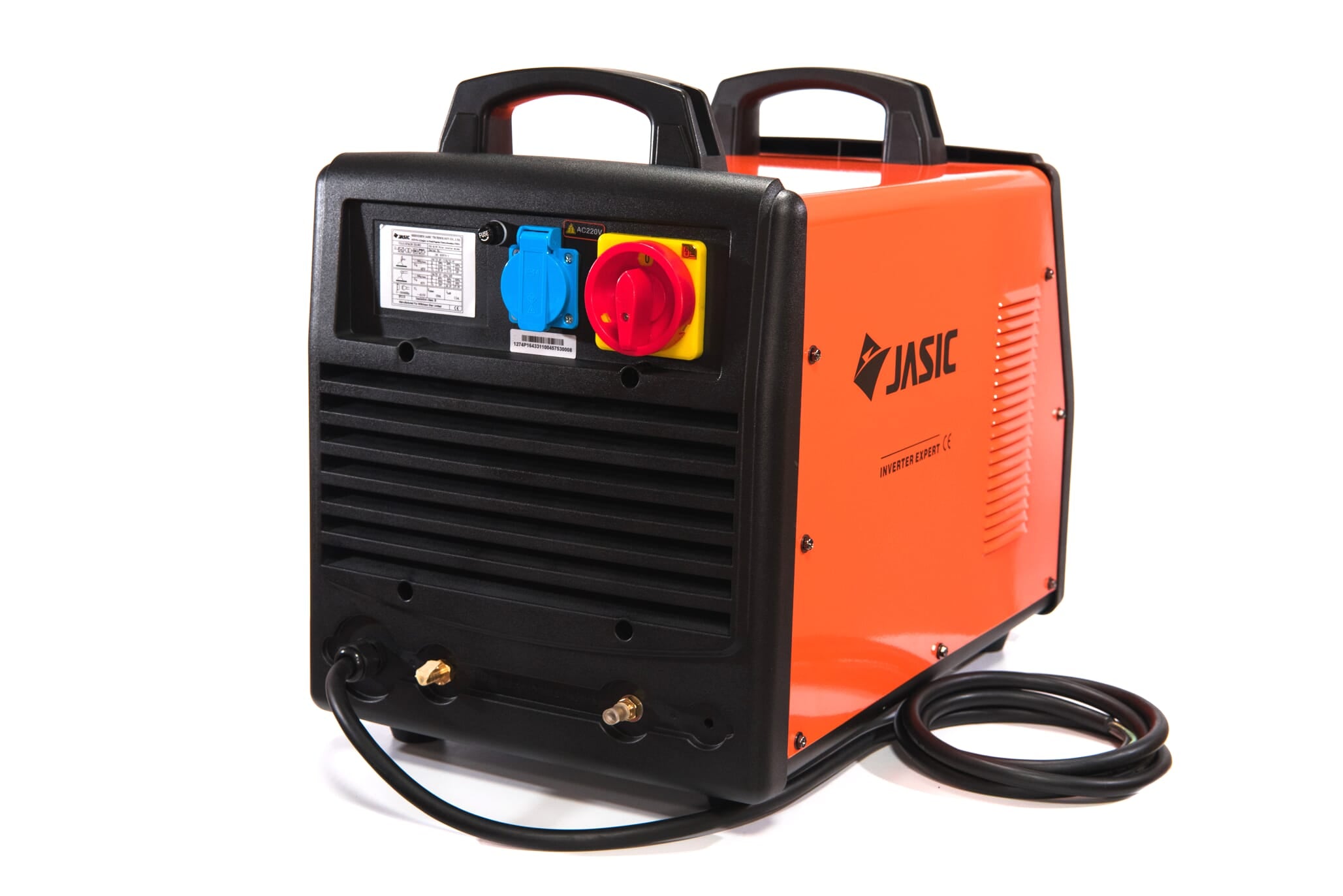

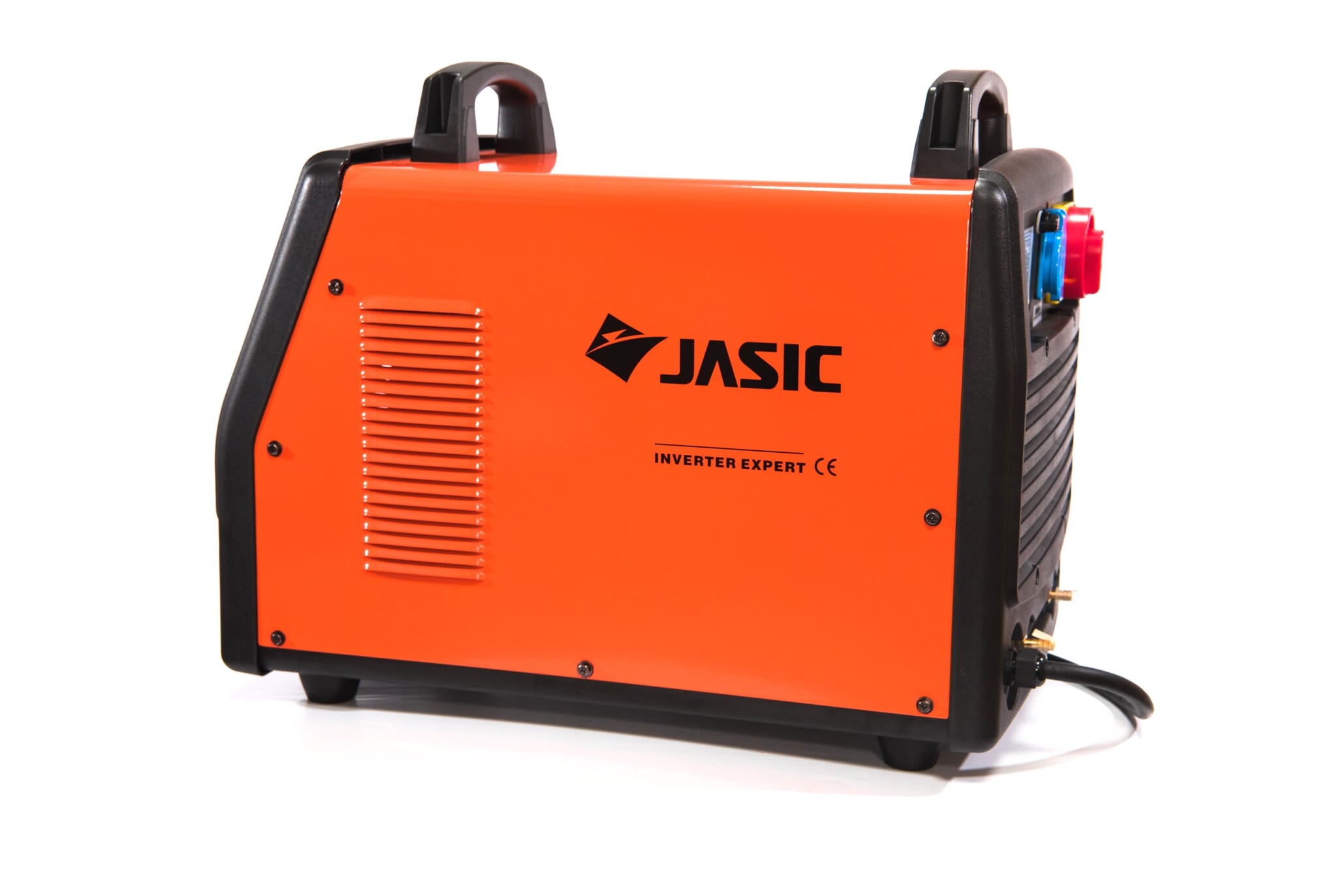

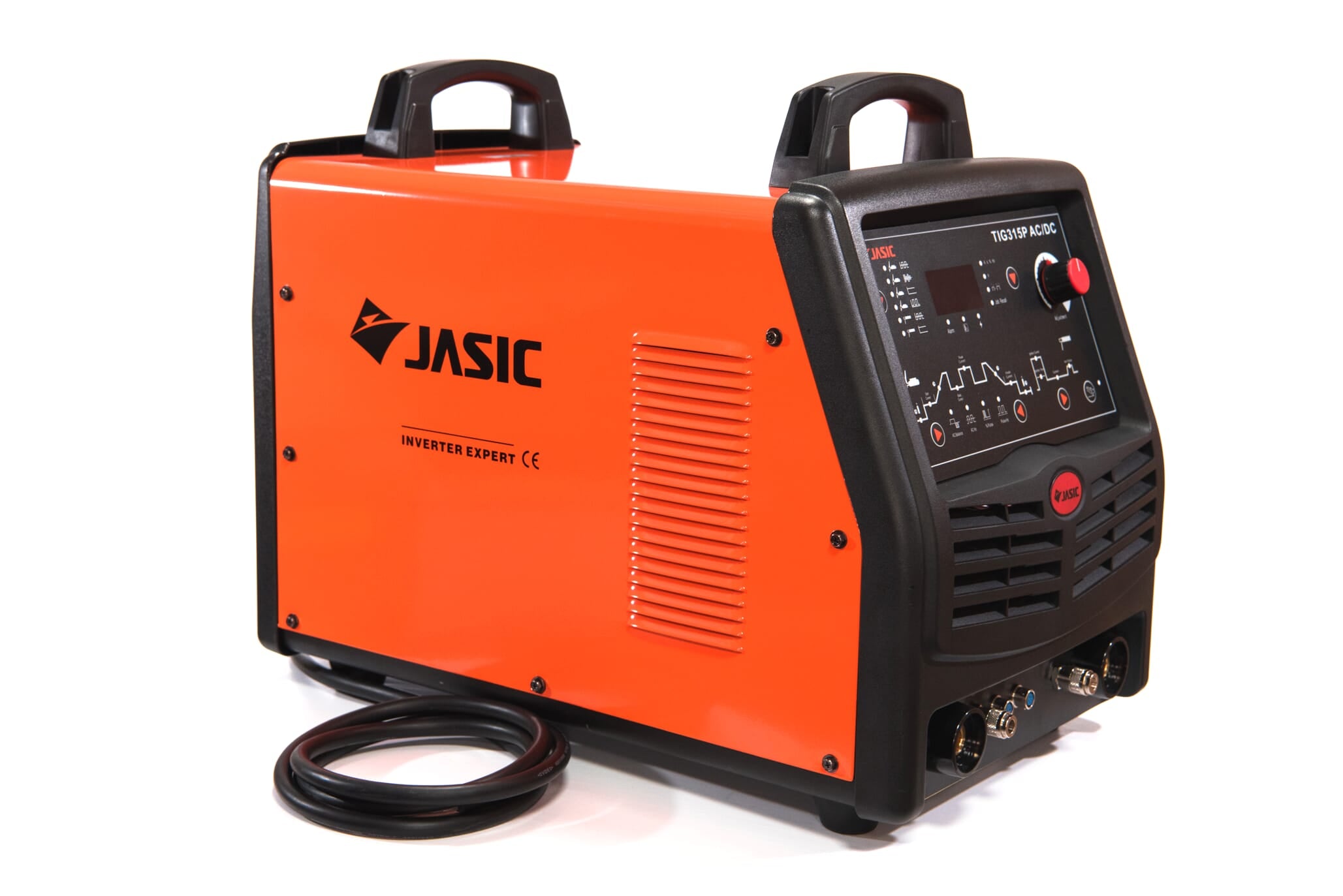

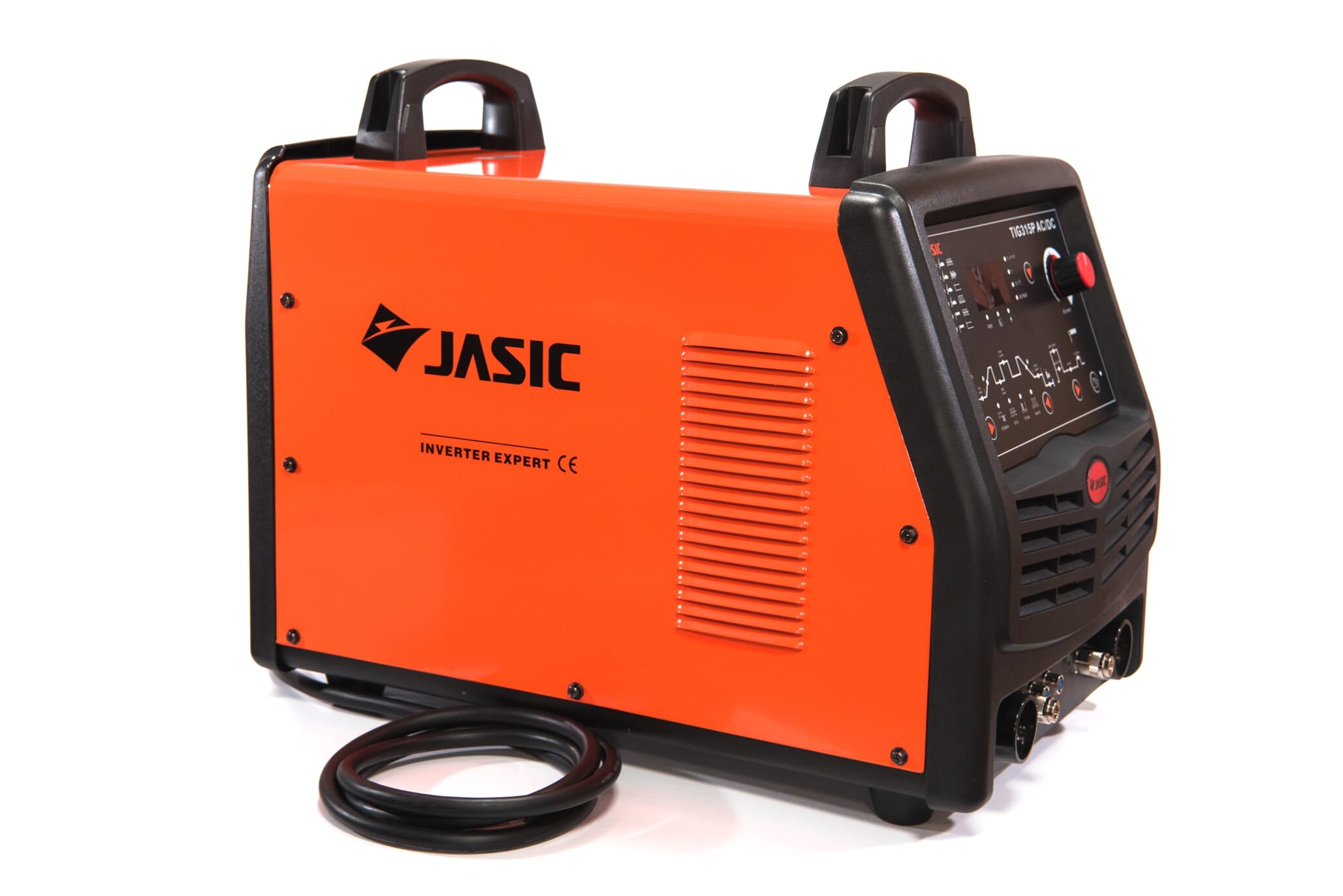

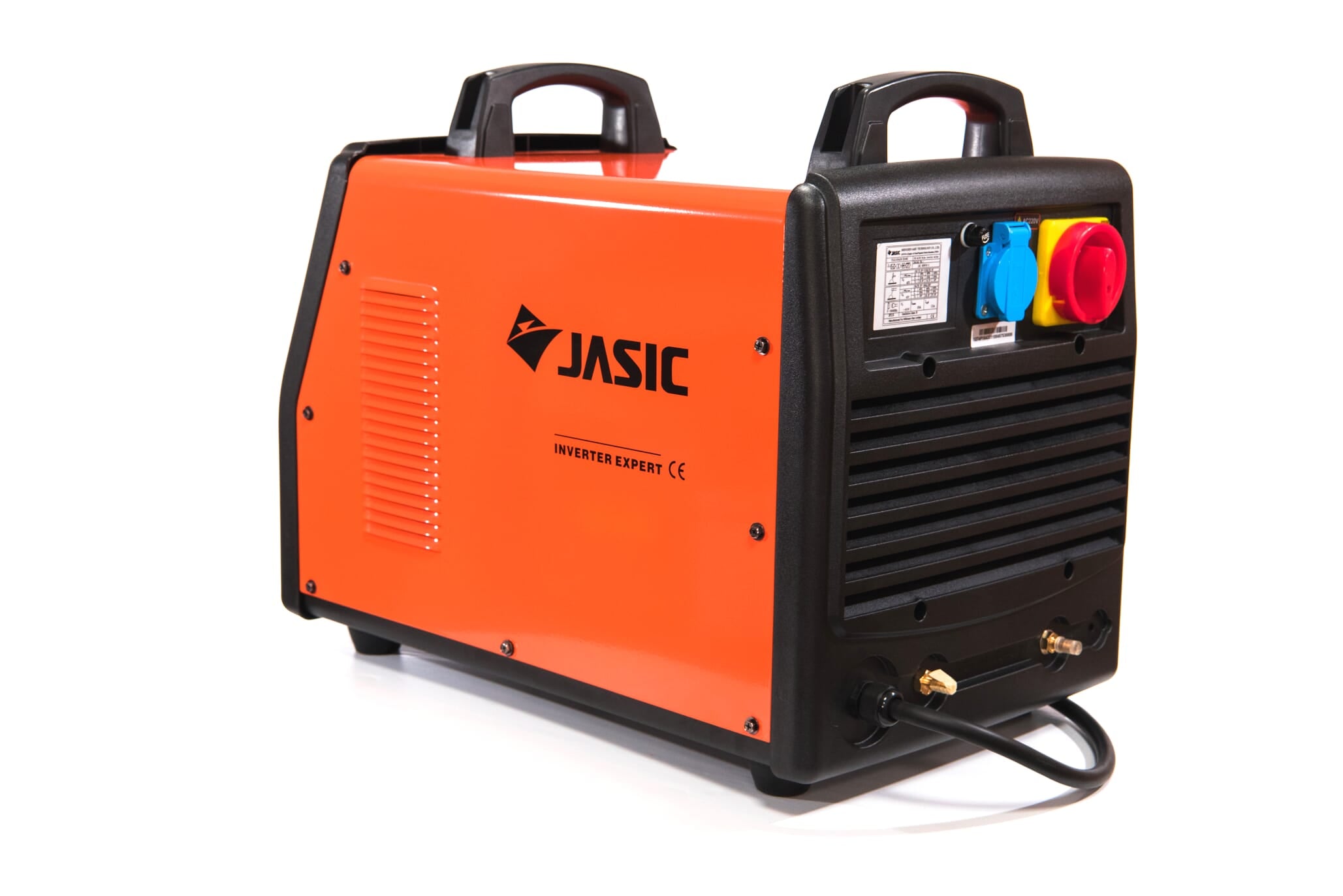

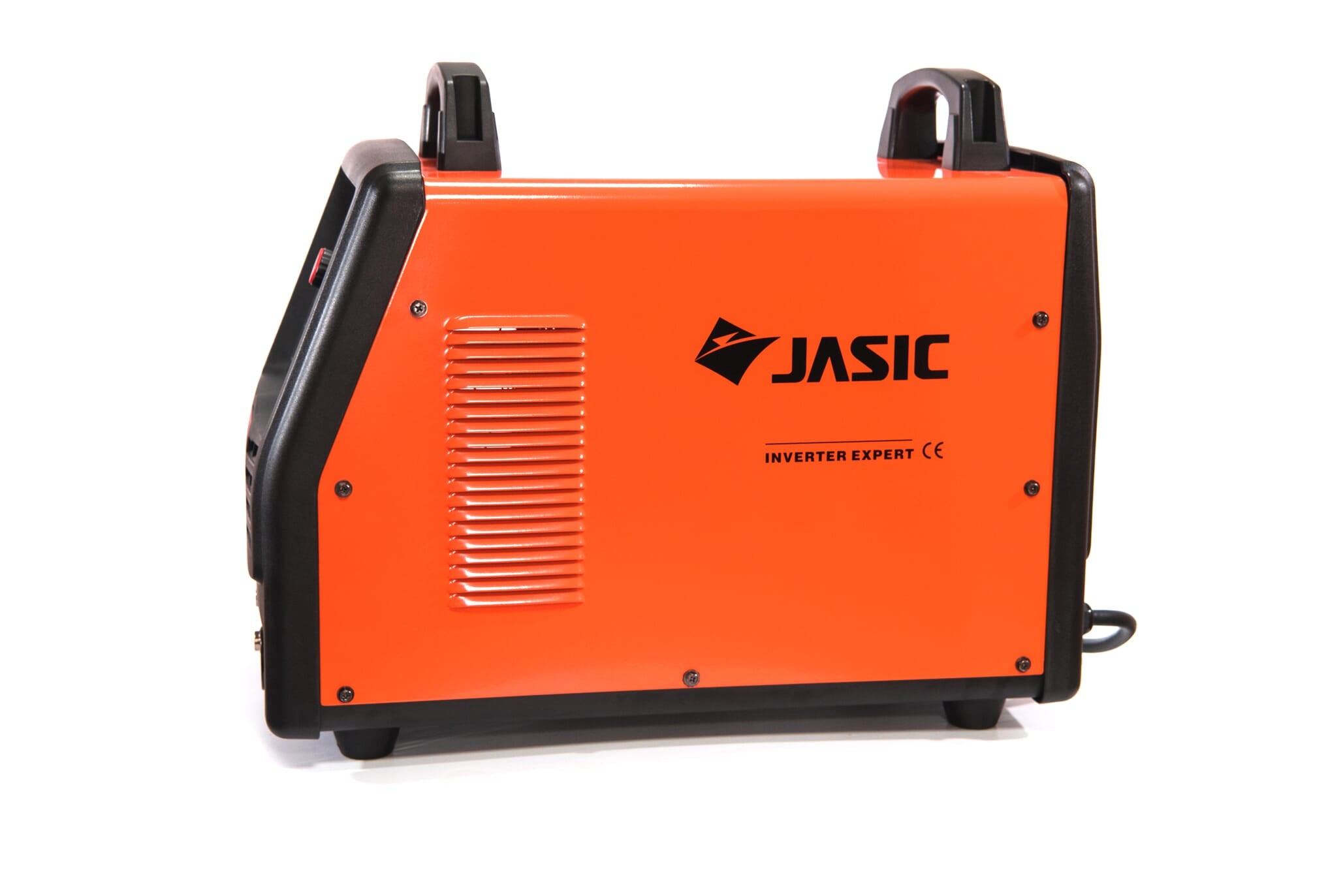

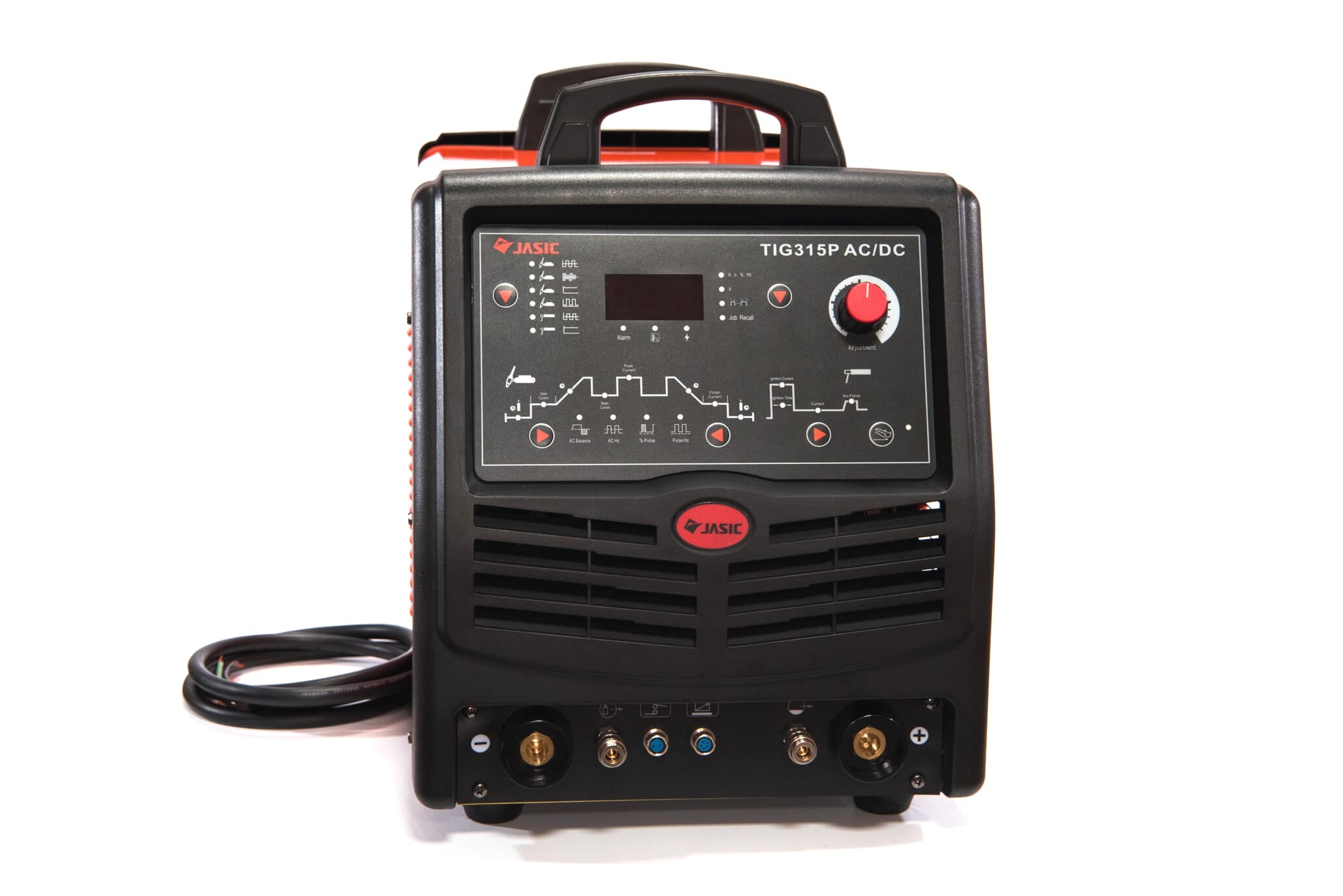

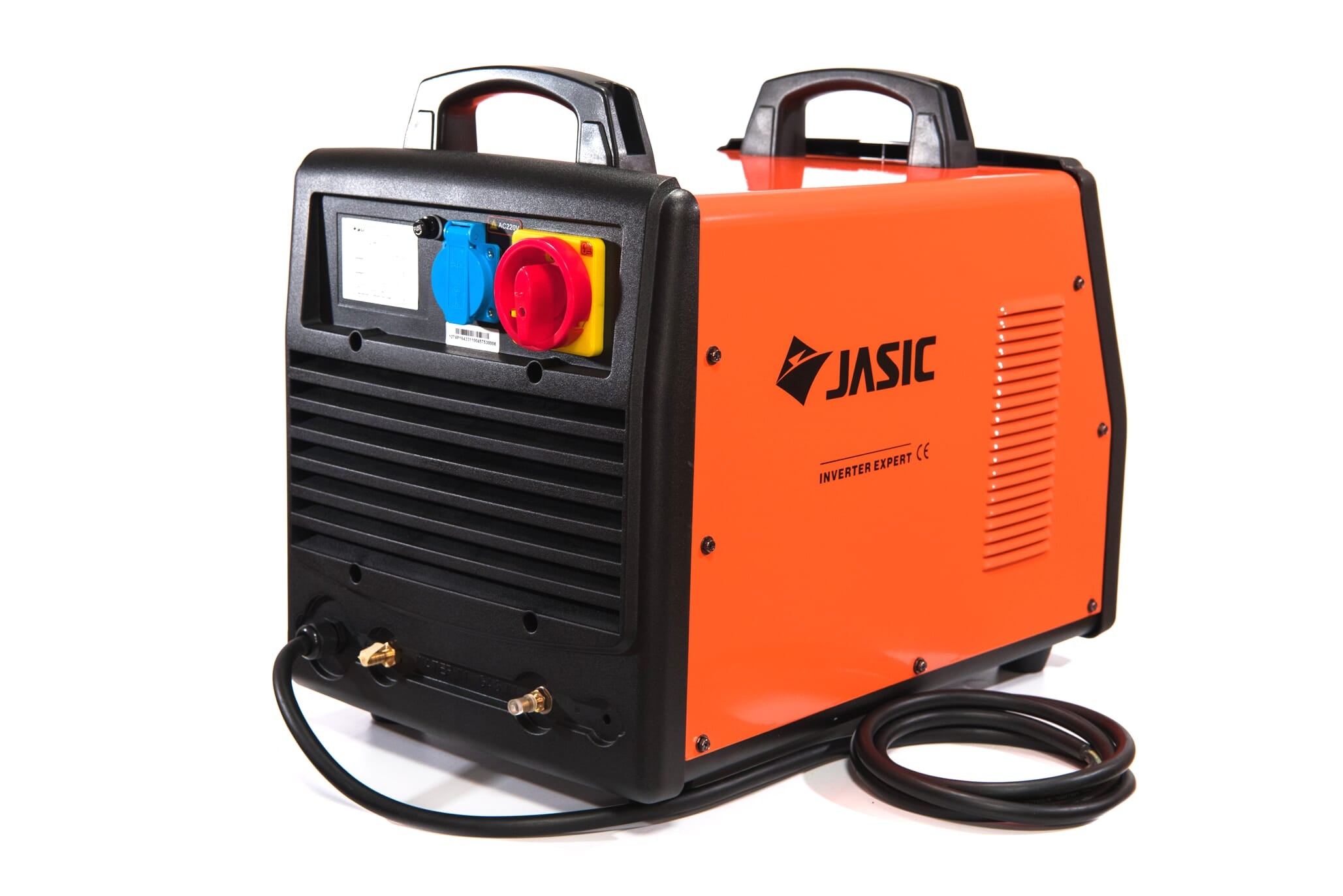

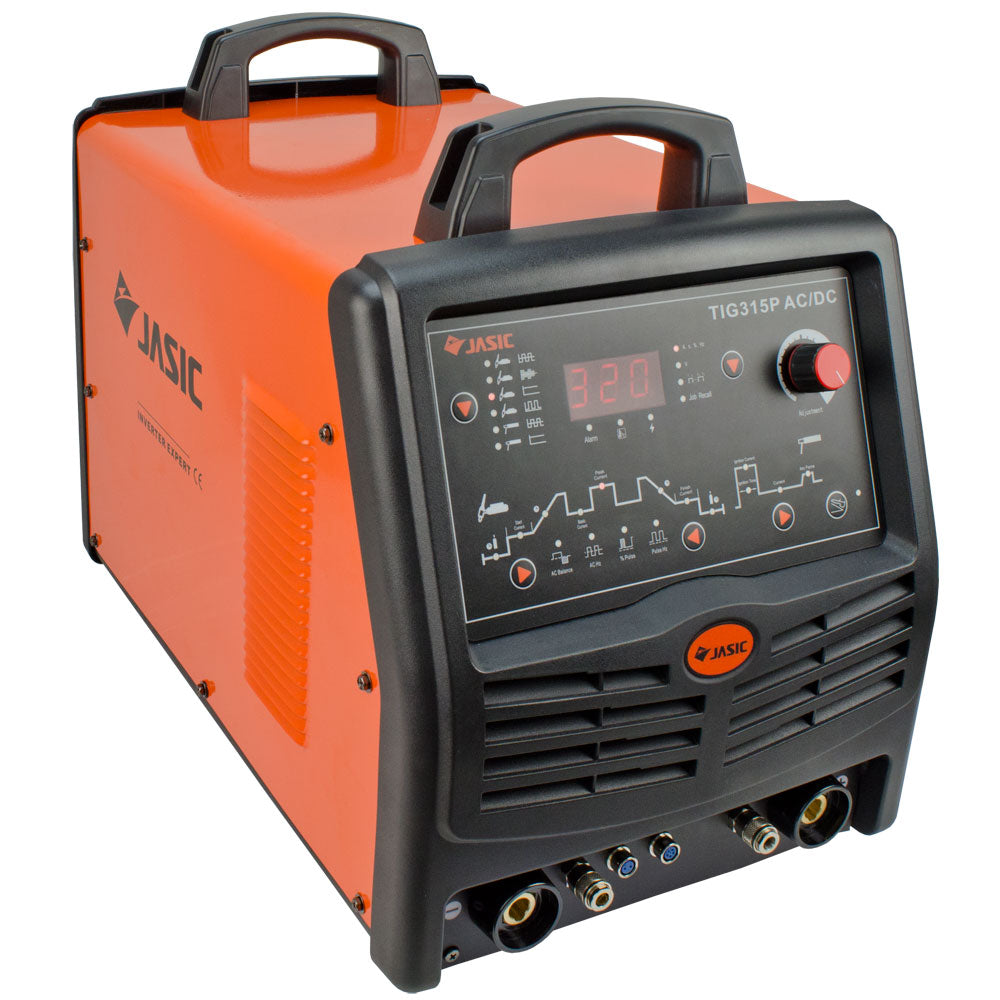

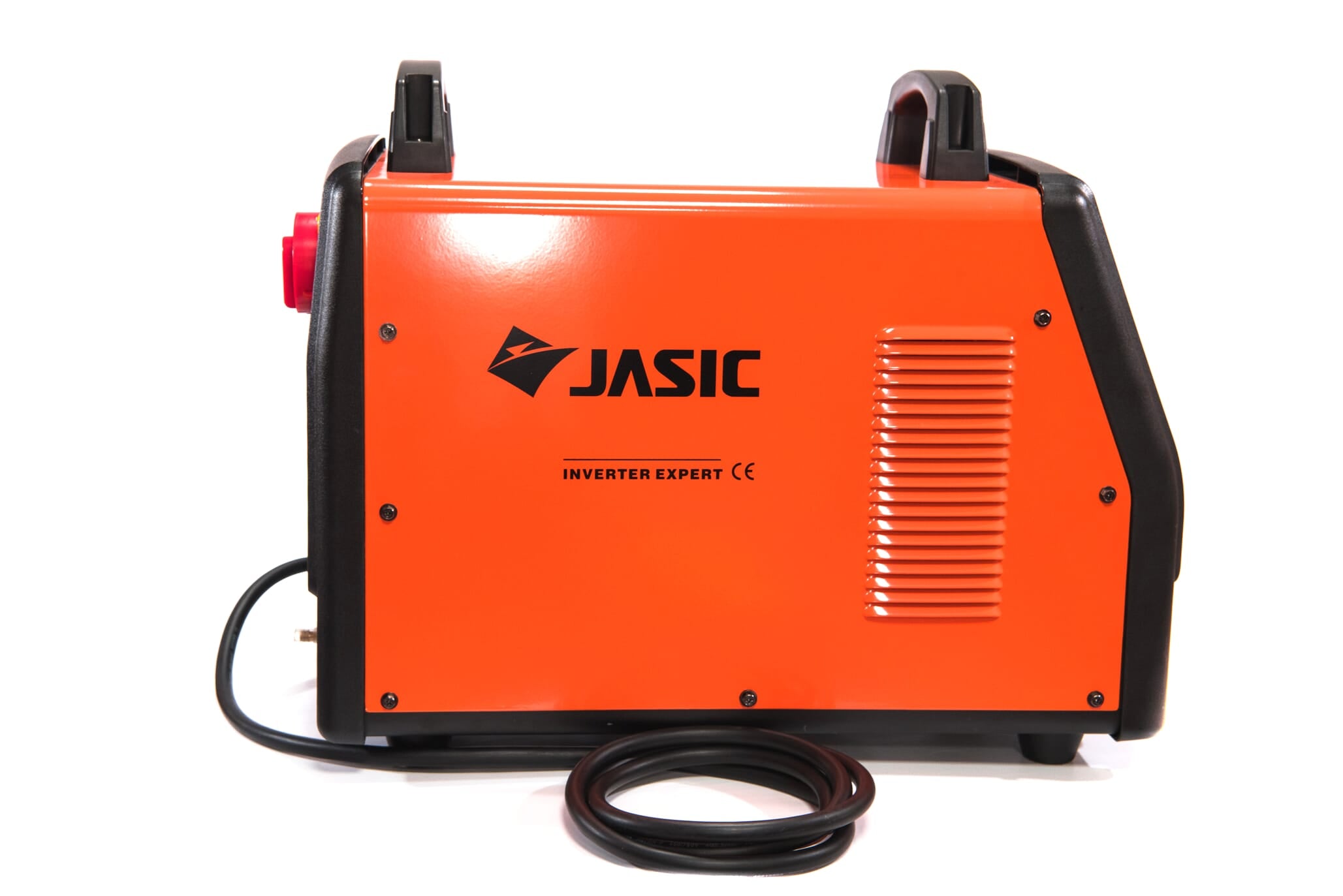

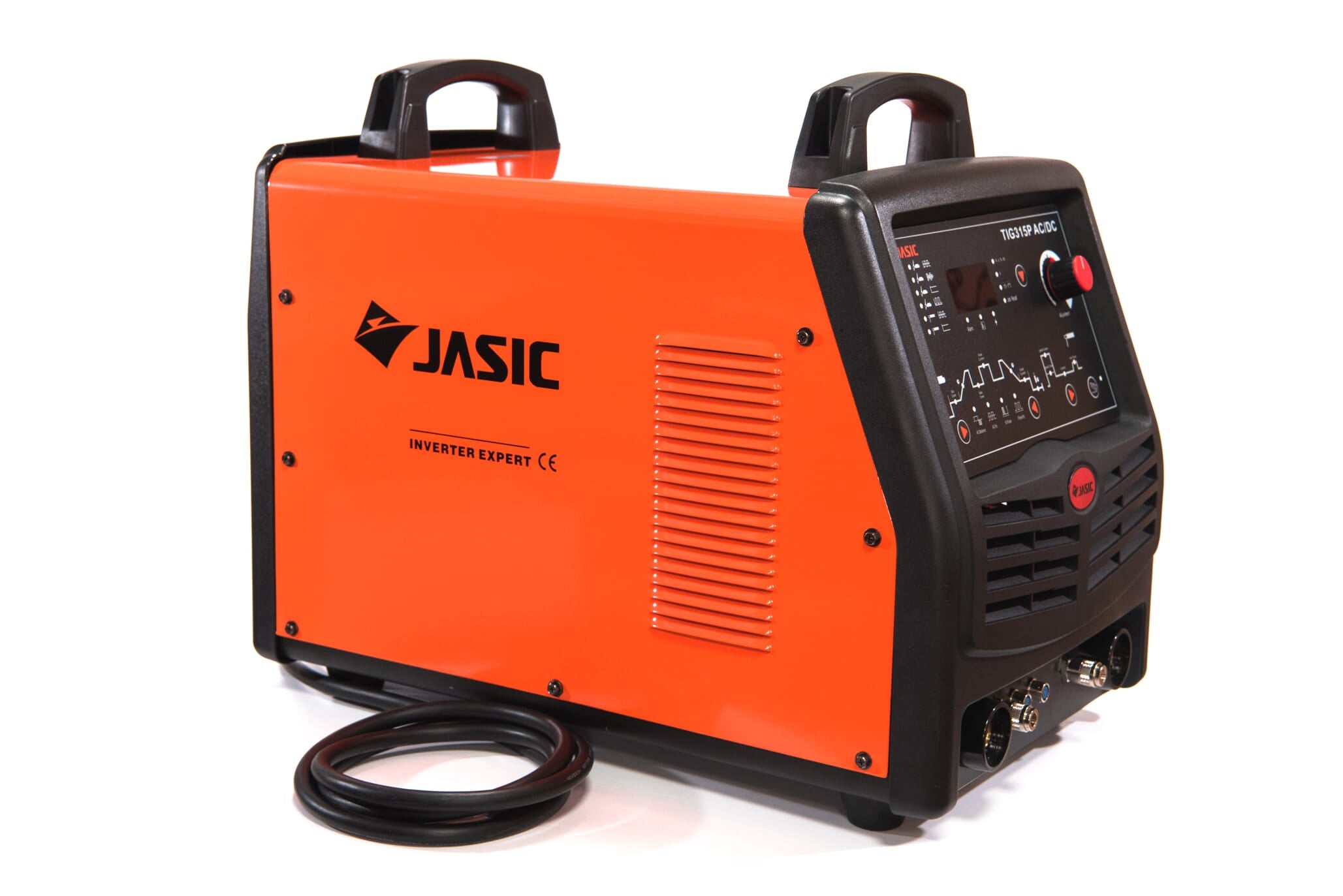

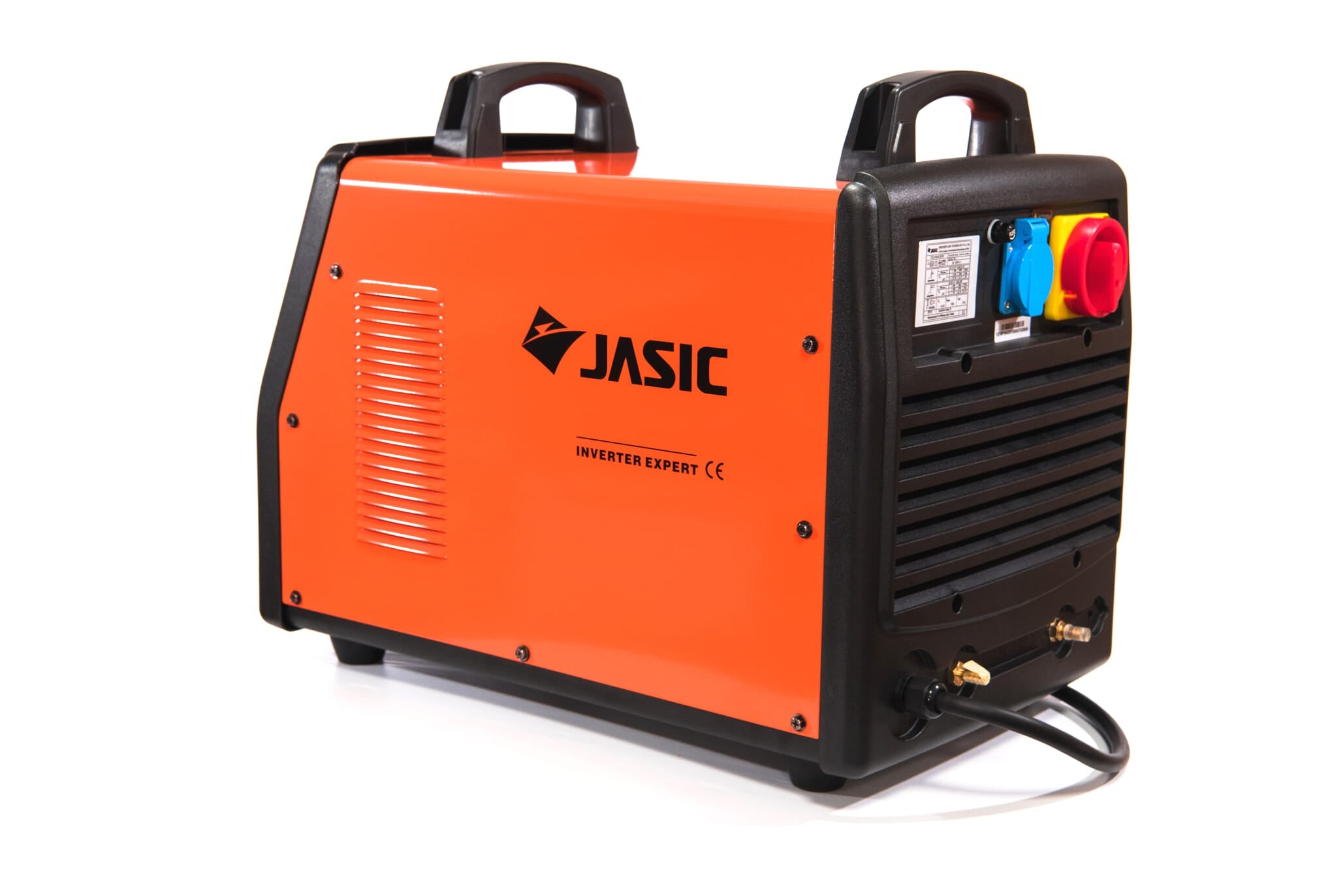

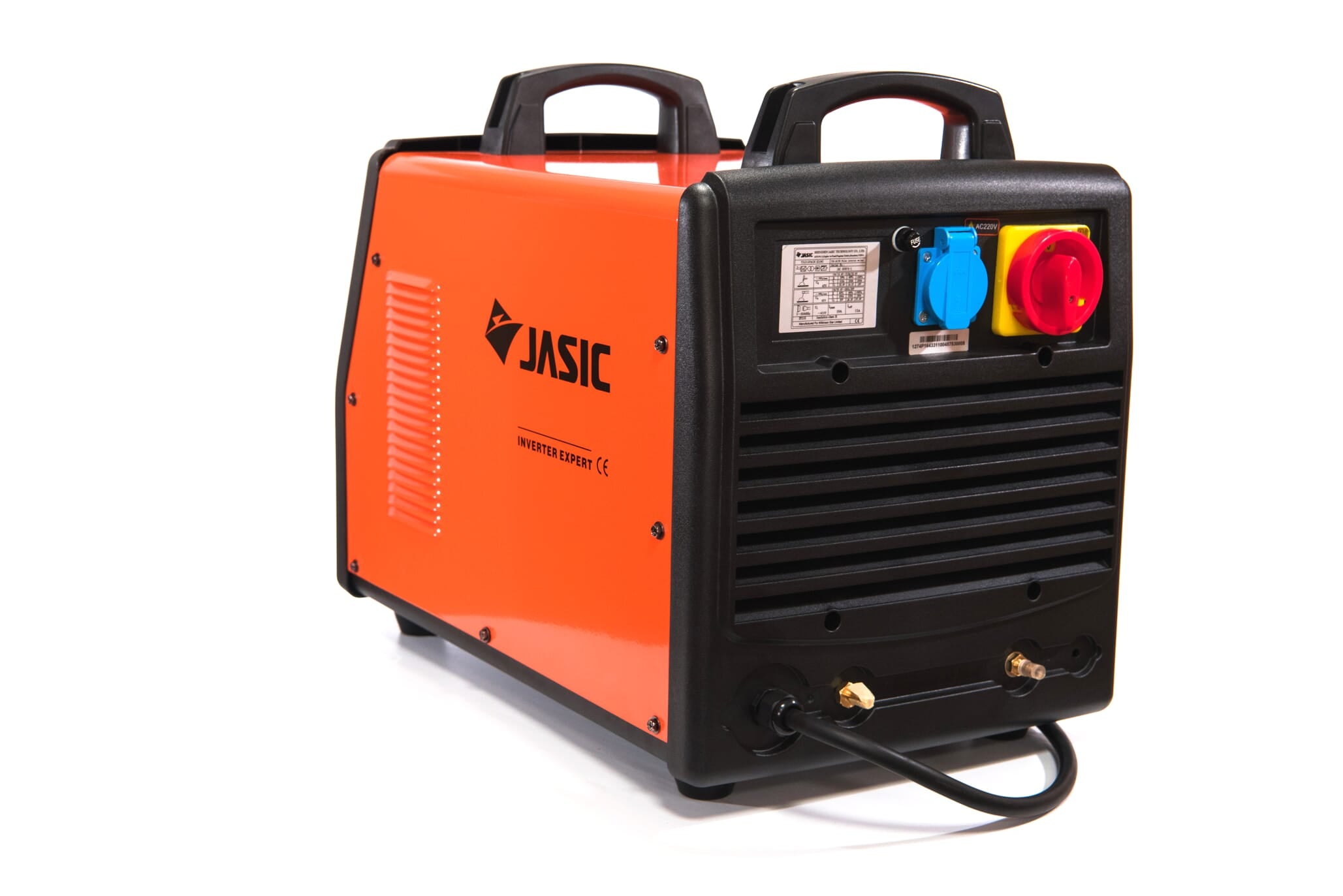

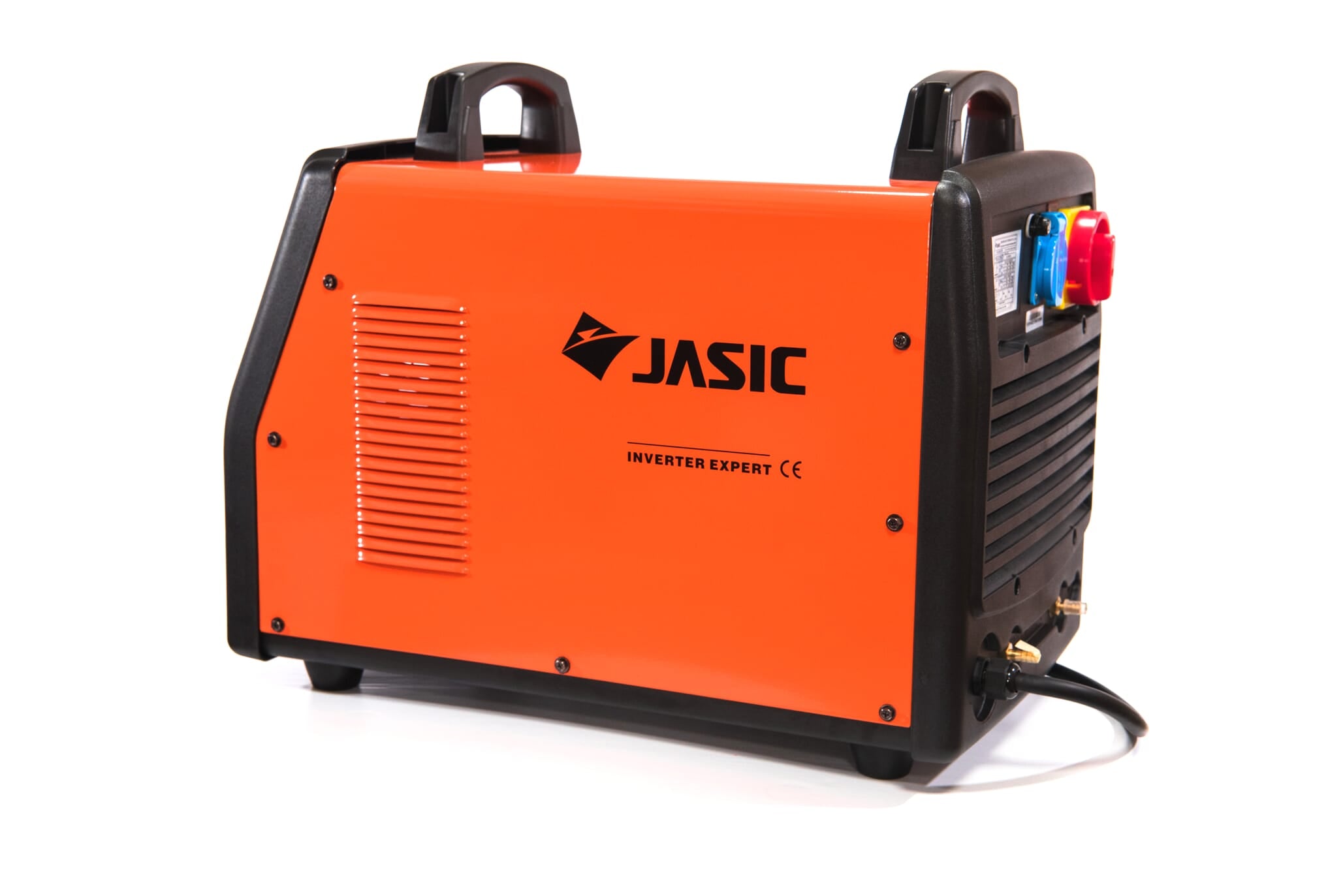

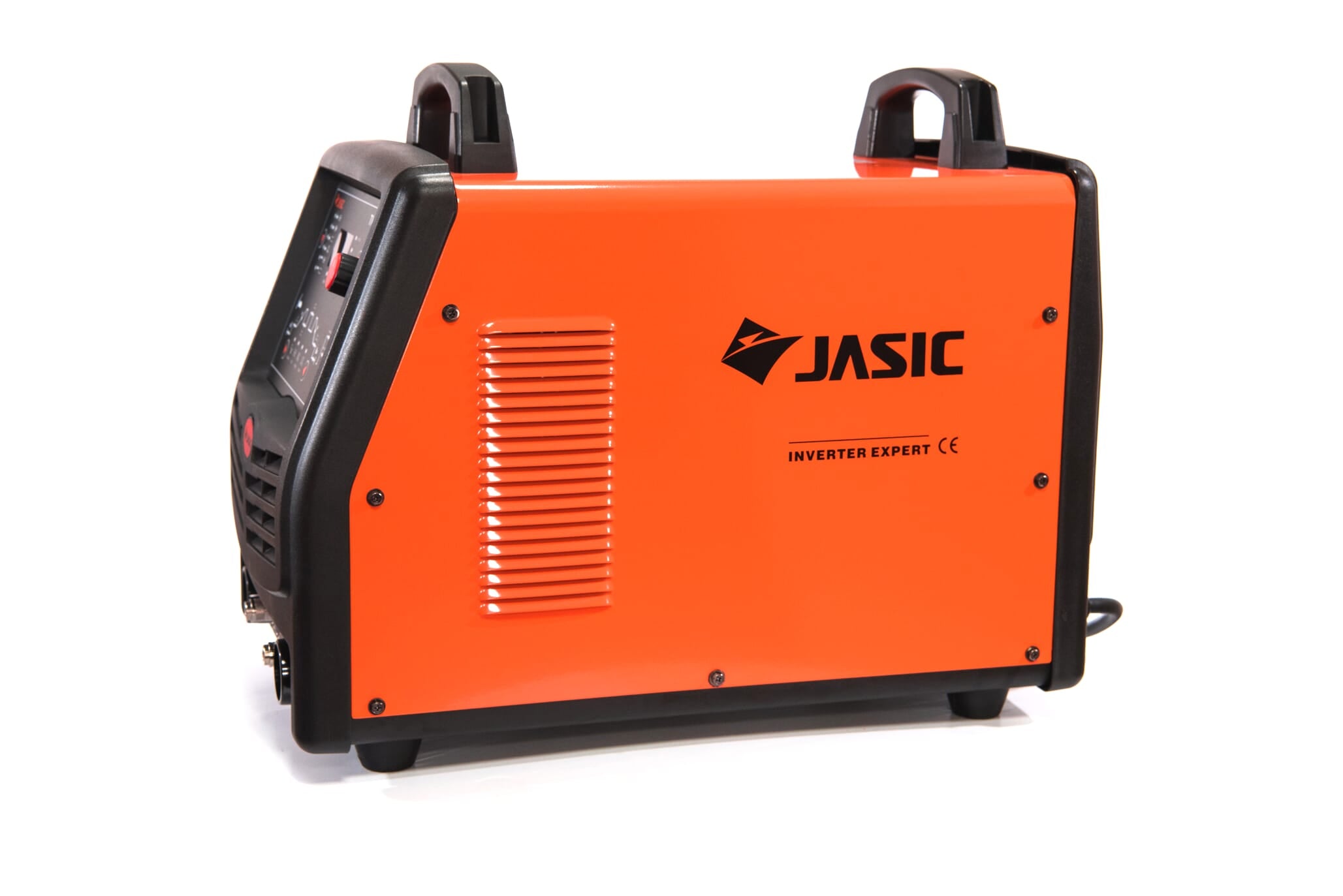

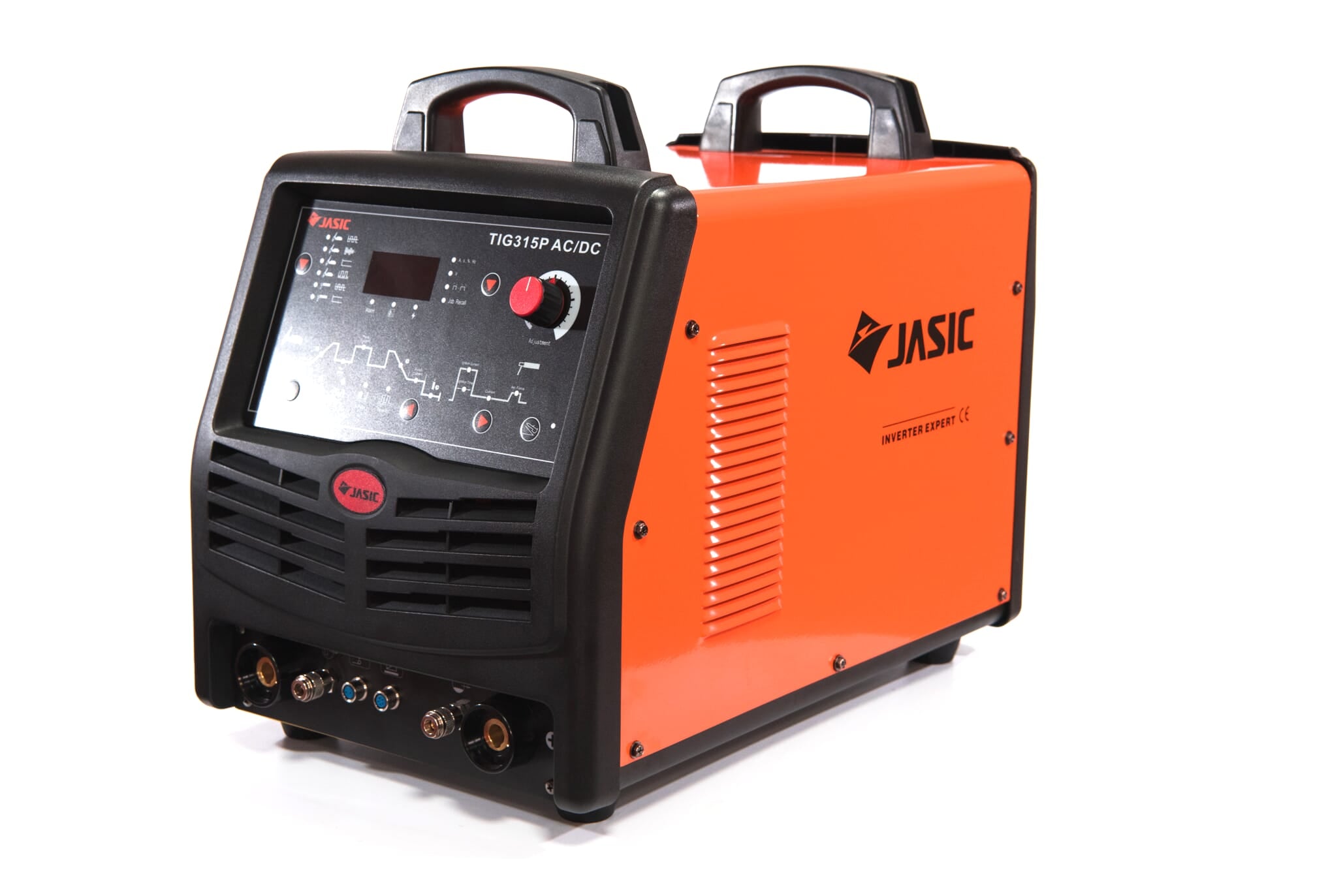

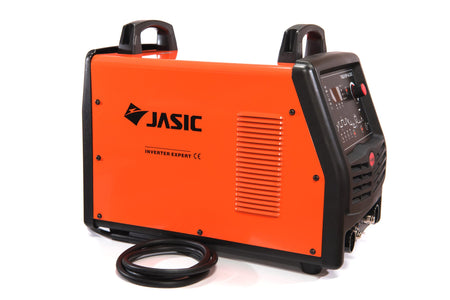

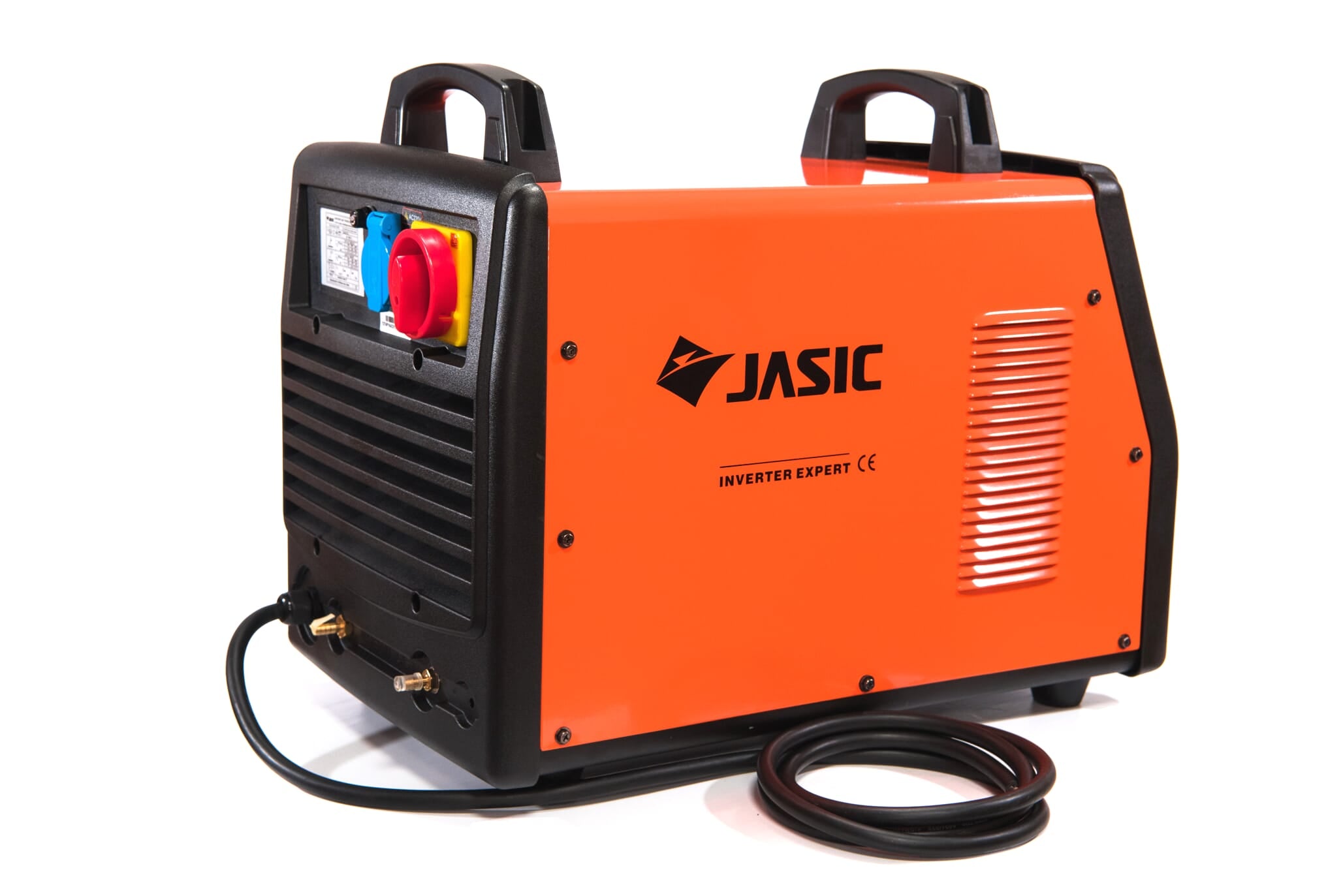

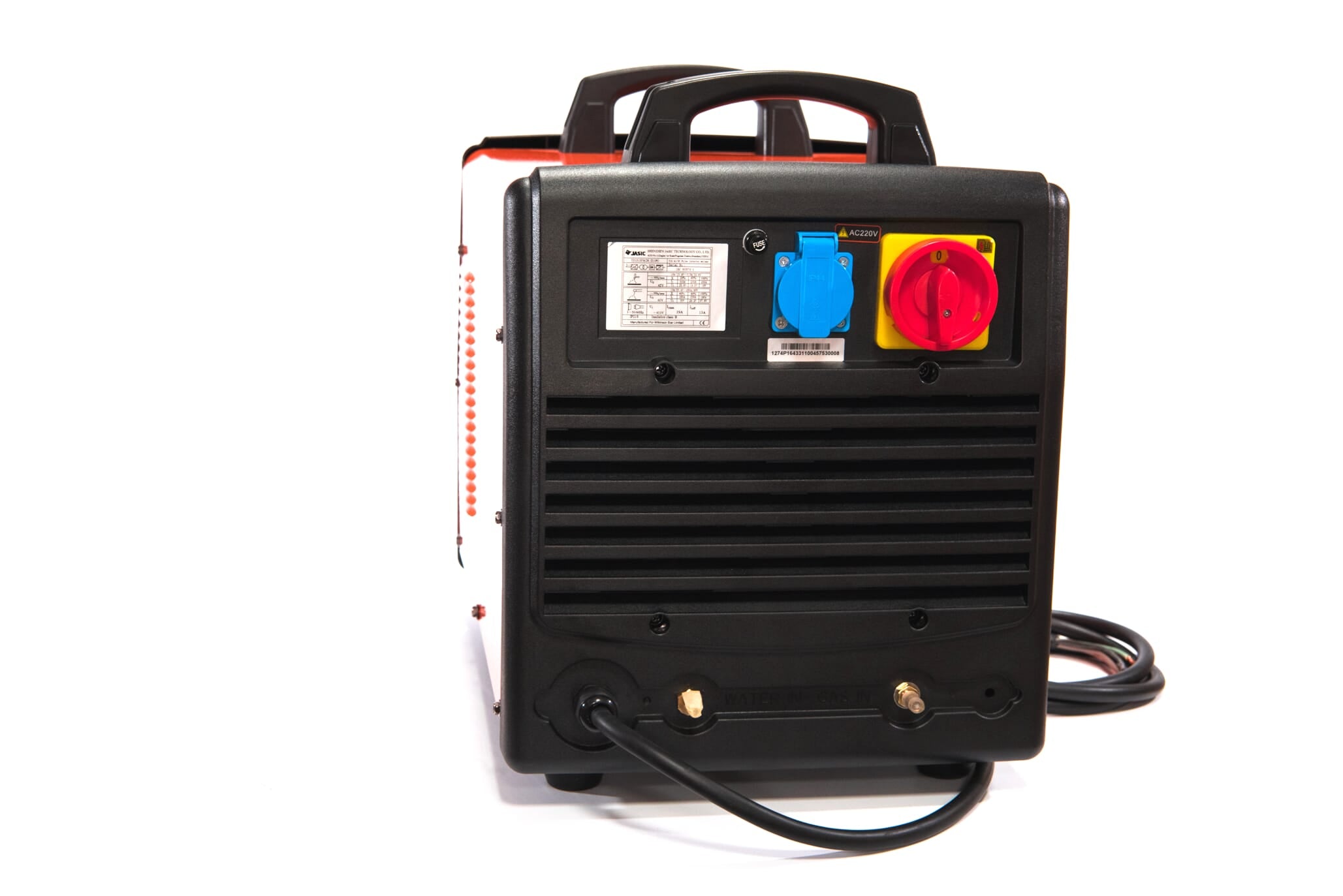

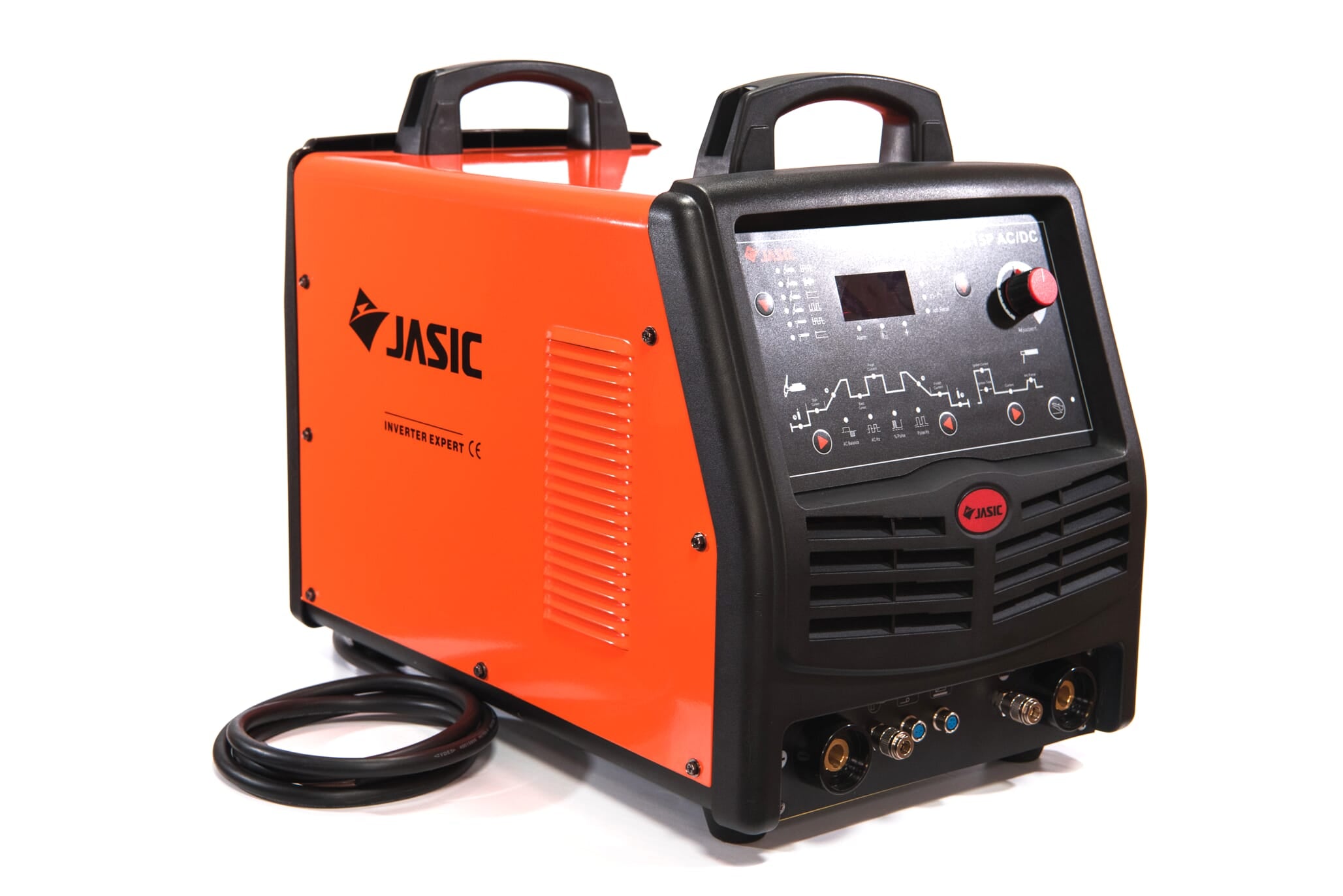

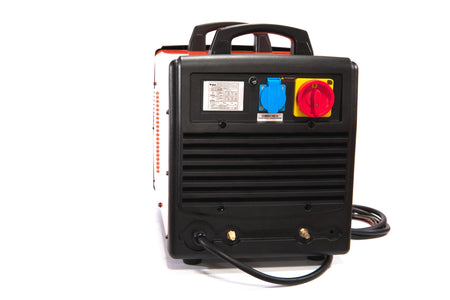

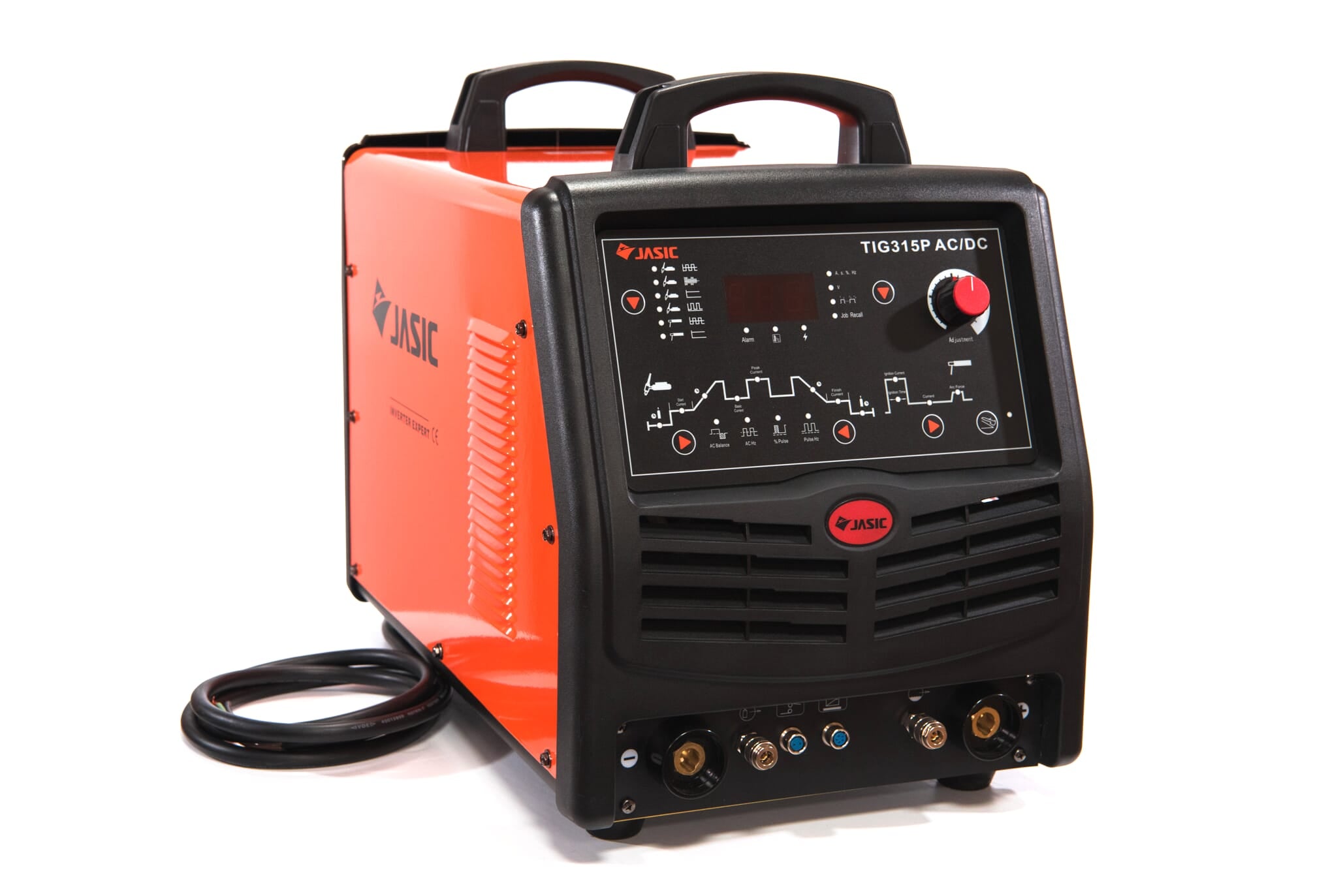

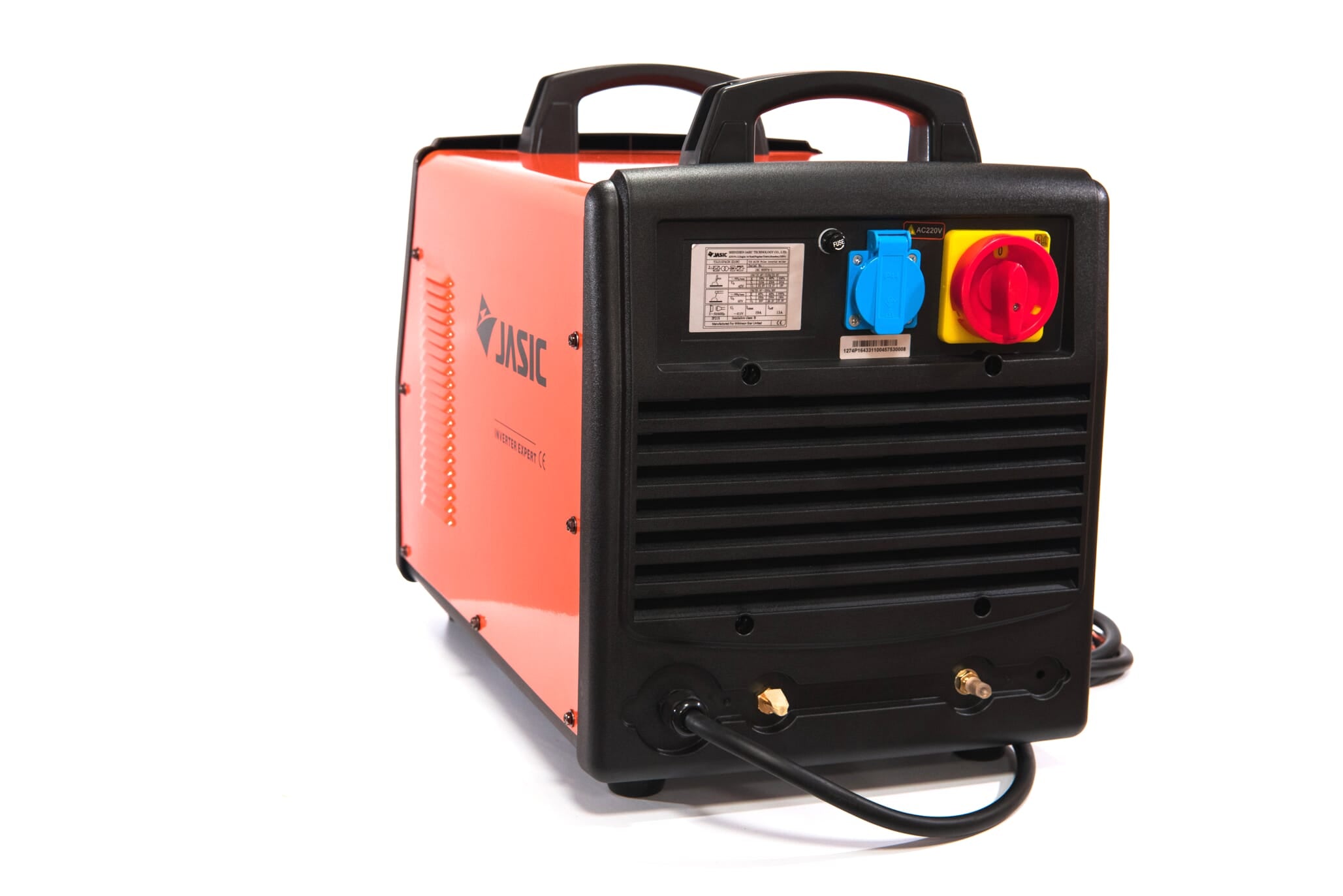

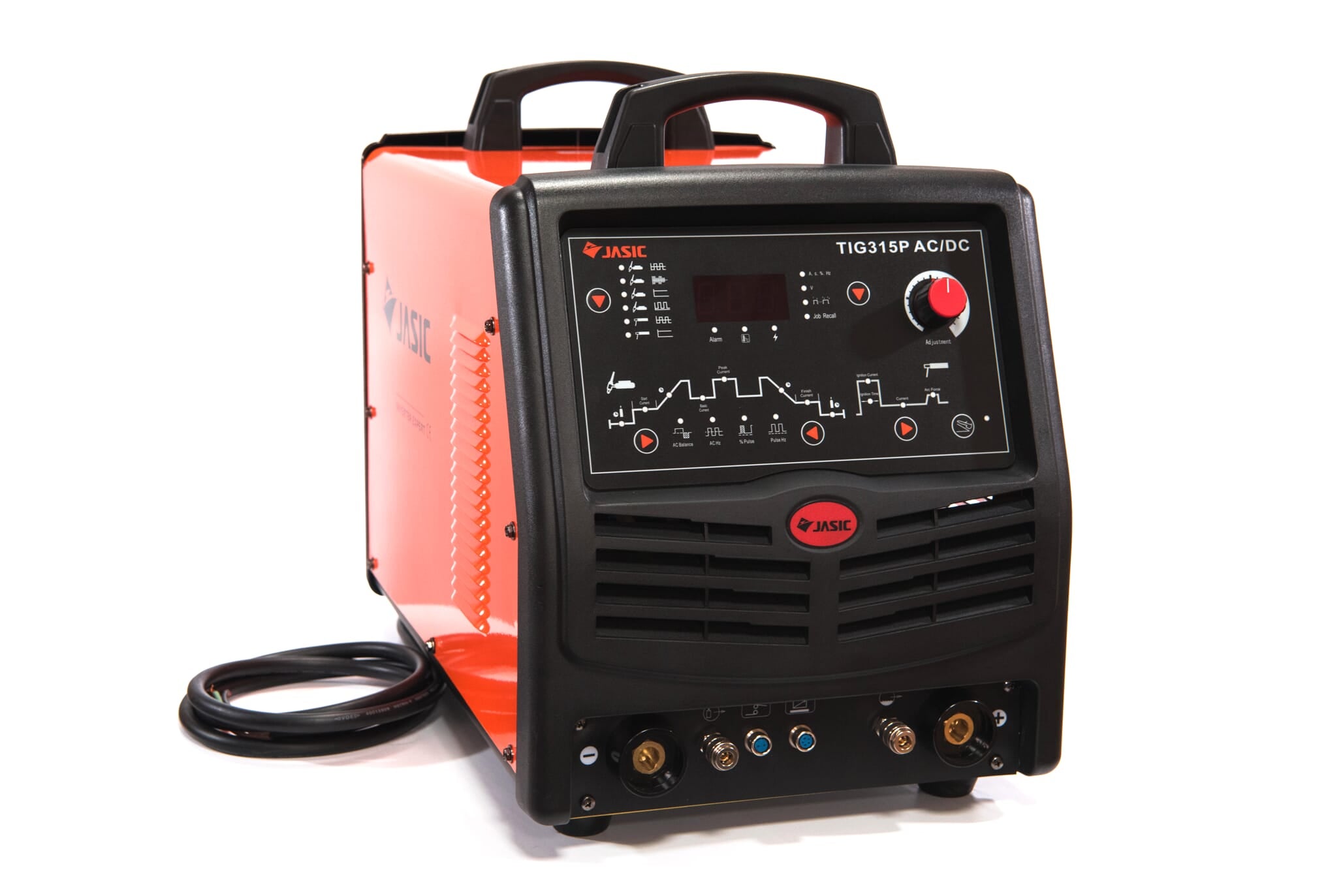

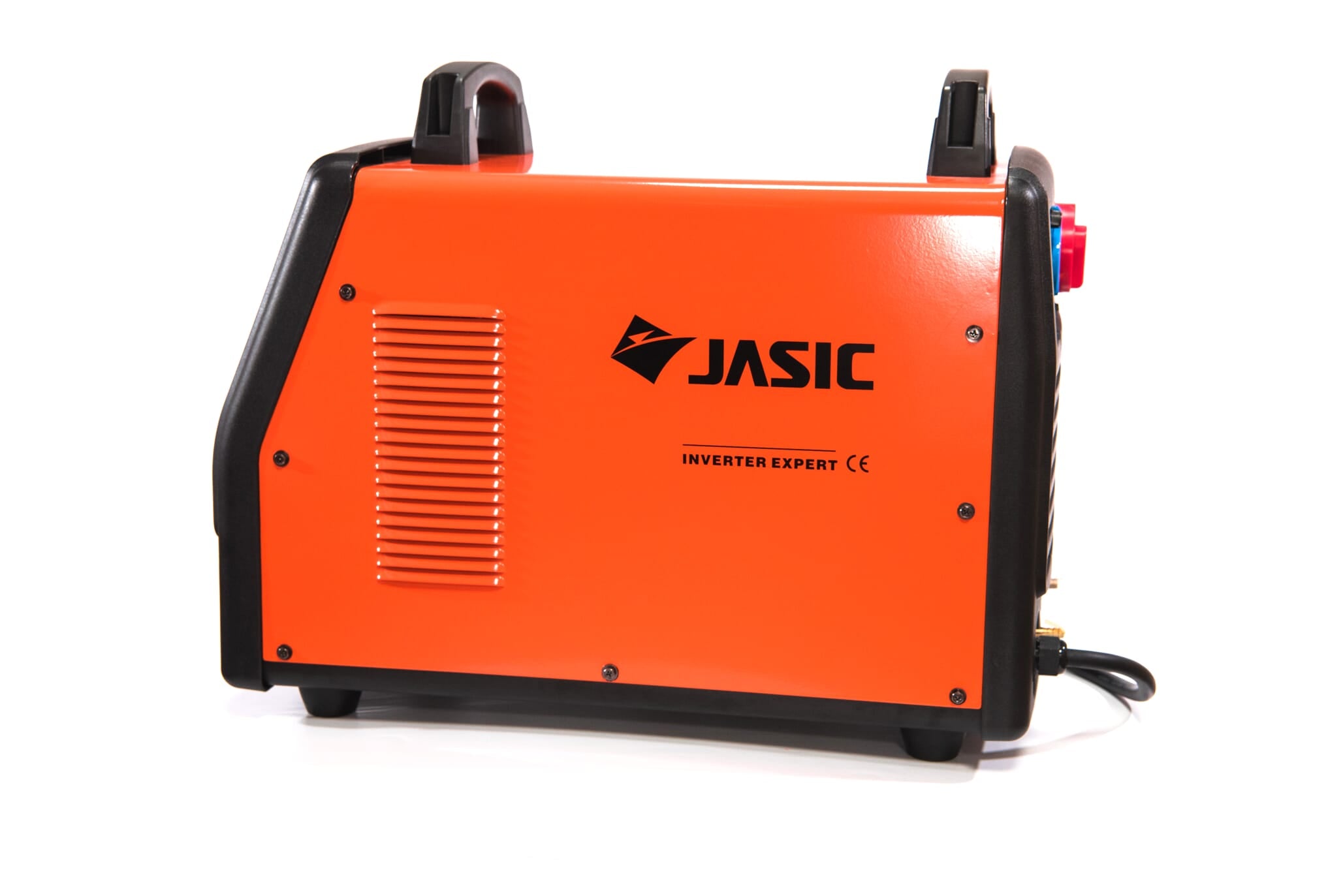

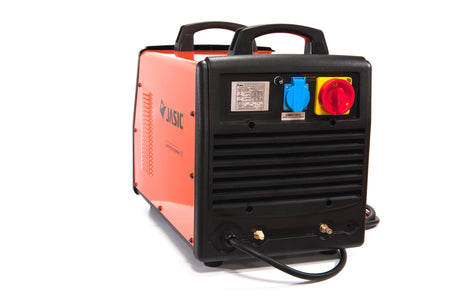

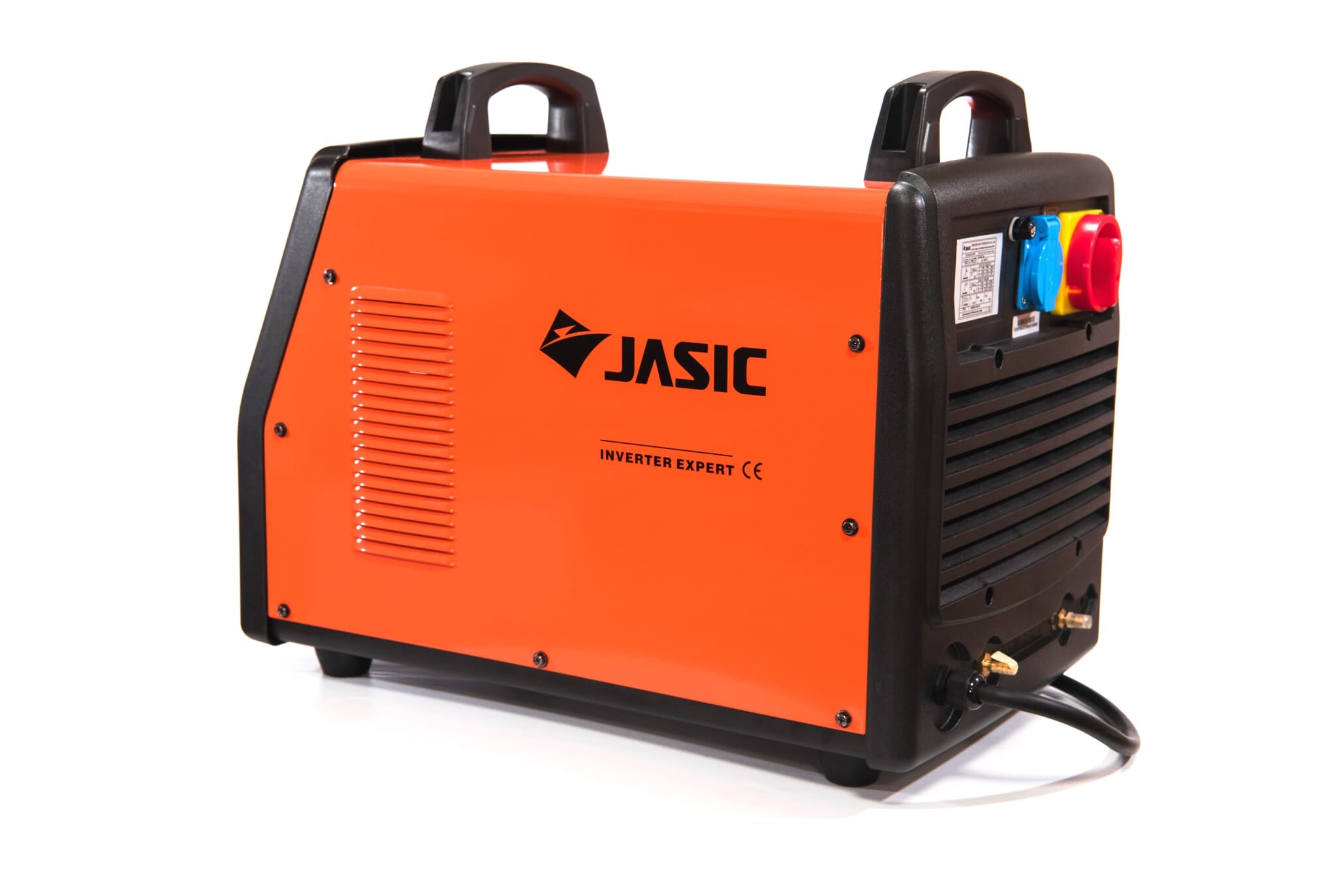

Jasic TIG315P AC/DC Digital TIG welding machine
Current stock: {{ variant.inventory_quantity }} piece(s) immediately available!
Most important features
Inverter technology – for the professional user
-
TIG Pulse AC/DC with digital display and digital control
-
HF ignition & 2T/4T operation
-
Adjustable up/down slope & gas pre/post flow time
-
High frequency inverter, high efficiency
-
Pulse adjustment, pulse frequency, pulse duty, pulse shape
-
Arc force, adjustable hot start
-
Adjustable AC current balance & AC current frequency
-
6 different current wave characteristics
-
4 programmable & 15 pre-programmed welding programs
-
TIG AC function for aluminum
-
TIG DC function for steel, stainless steel, copper and non-ferrous metals
-
Stable arc and weld performance
-
Remote control interface (foot pedal)
-
Connection for water cooler and water-cooled torch
- Voltage AC 380 - 400V - 50/60 Hz
- Power consumption 9 kVA
- Ampere range TIG 10 – 320 / MMA 10 – 250
- Pulse frequency range 0.5 – 200 Hz
- Pulse switching percentage 10 – 90%
- AC current balance 10 – 80%
- AC power frequency 20 – 70 Hz
- Up/down slope 0 – 60 sec
- Gas pre-flow / post-flow 0 – 15 sec / 2 – 20 sec
- Open voltage 50 V
- Duty cycle at 40°C 250A – 60% / 320A – 20%
- Efficiency 85%
- Power factor 0.70
- Insulation class IP21S
- Dimensions 600 x 365 x 425 mm excluding handles
- 600 x 365 x 500 mm incl. handles
- Weight 33 KG
- Welding inverter
- WP-18 torch length 4 meters
- Electrode holder set length 4 m
- Earth cable set length 3 m
This product weighs more than 30 kg and is shipped by pallet freight. We ask for a contribution of € 24.95 for this
