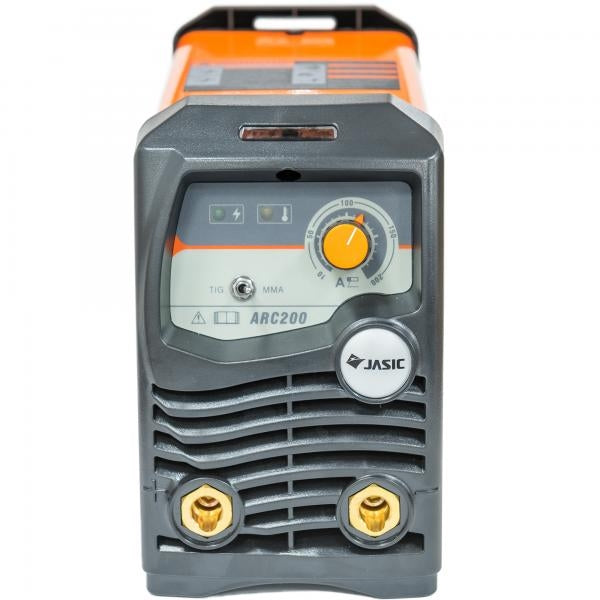

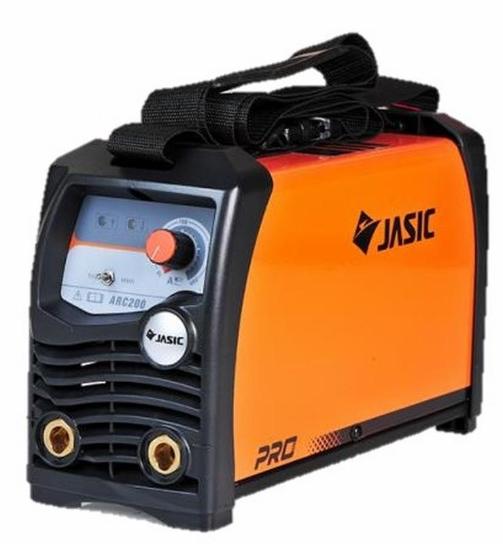

Jasic ARC200 + TIG function
Regular price
€300,00
Jasic ARC200 + TIG function
Current stock: {{ variant.inventory_quantity }} piece(s) immediately available!
Characteristics;
-
IGBT Inverter technology – for the professional user
- Can be used on voltage between 96-265 volts
-
MMA electrode function / DC Lift TIG function
-
33 Khz frequency converter, high efficiency
-
Self-adjusting arc force, Arc Force
-
Hotstart and Anti-Sticking functionality
-
Compact size, lightweight and modern design
-
Easy start, minimal welding spatter
-
Stable and reliable welding arc
-
Auto compensation for voltage fluctuation
-
Advanced single PCB construction, generator friendly
-
Comfortable “Rubber Oil” finish on plastic parts
| Technical data | |
|---|---|
| Working voltage | AC 220V- 50/60 Hz +-15% |
| Power consumption | 8.8kVA |
| Ampere range | 10 – 190 |
| Open tension | 63 V |
| Duty cycle – at 40°C | 190A – 35% |
| Efficiency | 85% |
| Power factor | 0.70 |
| Insulation class | IP21/F |
| Dimensions | 310 x 130 x 205 mm excl. handle 310 x 130 x 250 mm incl. handle |
| Weight | 4.7KG |

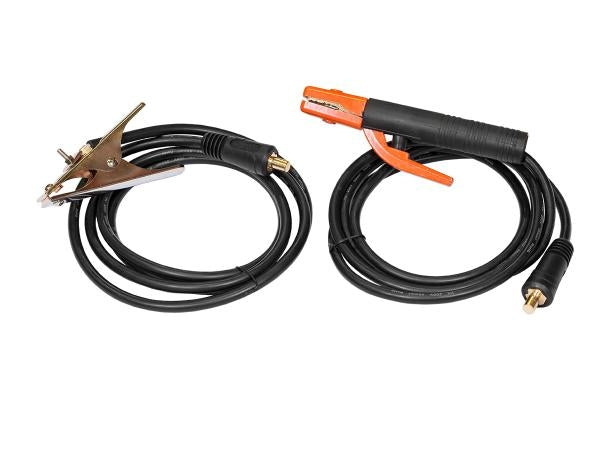

| Contents | Welding inverter Electrode holder set length 4 m Earth cable set length 3 m Shoulder strap |
